SELECT A DIAGRAM

01 - Cover Sheet

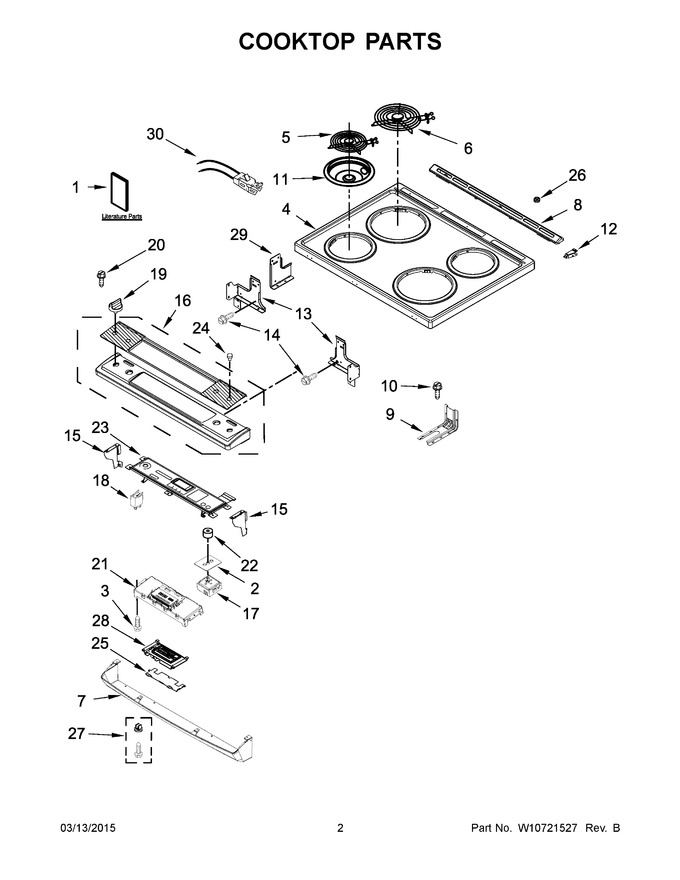

02 - Cooktop Parts


03 - Chassis Parts


04 - Door Parts


05 - Drawer Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10665255		Installation Instructions		Appelez-nous	-
2	WP71002569		Gasket, Infinite Switch   (Replaces: 7201P077-60)			Immediately	$ 9.51
3	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 13.25
4	W11487482		Cooktop (white)   (Replaces: W10536268)		Appelez-nous	-
5	W11168414		Element, Surface (6") (left Front And Right Rear)   (Replaces: W10259870)			Immediately	$ 139.04
6	W11161939		Element, Surface (8") (right Front And Left Rear)   (Replaces: W10259867)			Immediately	$ 151.77
7	W10570528		White				$ 238.47
8	W10636527		Vent, Trim Top (white)				$ 226.20
9	W11502257		Bracket, Anti-tip   (Replaces: W10606241)			Immediately	$ 20.73
10	WP7101P485-60		Screw, Anti-tip   (Replaces: 7101P485-60)				$ 27.65
11	WPW10196405		Bowl, Drip (8")   (Replaces: W10196405)			Immediately	$ 15.56
12	W10162253		Brace, Corner (left)				$ 66.72
13	W10289169		Support, Cooktop (right)				$ 27.05
14	WPW10067840		Screw   (Replaces: W10067840)				$ 7.47
15	W10547960		Bracket, Console (left)				$ 20.90
16	W10728518		Console, Panel (white)   (Replaces: W10596675)		Appelez-nous	-
17	W10911303		Switch, Infinite (single) (left Front And Right Rear)   (Replaces: W10578768)			Immediately	$ 103.74
18	WP8523265		Light, Indicator (125v)   (Replaces: 8523265)			Immediately	$ 91.76
19	W11677626		Knob (white)   (Replaces: W10569581)			Immediately	$ 39.92
20	WP3400882		Screw   (Replaces: 3400882)			Immediately	$ 6.80
21	W11050550		Electronic, Control Mrc2   (Replaces: W10453978)				$ 425.07
22	W10702912		Gasket, Switch Stem				$ 26.84
23	W10728534		Overlay, Active (white)   (Replaces: W10145854)		Appelez-nous	-
24	WP3196068		Lens, Indicator   (Replaces: 3196068)			Immediately	$ 5.63
25	W10558372		Bracket, Control				$ 22.59
26	W11104127		Bumper   (Replaces: W10664705)			Immediately	$ 19.77
27	W11025100		Grommet   (Replaces: W10645947)			Immediately	$ 11.84
28	WPW10603098		Assembly, Display   (Replaces: W10603098)			Immediately	$ 233.58
29	W10598048		Bracket, Console (center)				$ 23.16
30	814399		Receptacle, Element			Immediately	$ 38.87
11A	WPW10196406		Bowl, Drip (6")   (Replaces: W10196406)			Immediately	$ 12.05
12A	W10162252		Brace, Corner (right)				$ 70.73
13A	W10289170		Support, Cooktop (left)				$ 27.05
15A	W10547961		Bracket, Console (right)				$ 20.90
16A	W10728519		Console, Panel (black)   (Replaces: W10596674)		Appelez-nous	-
16B	W10728520		Console, Panel (stainless)   (Replaces: W10596676)		Appelez-nous	-
17A	W11162115		Infinite Swiitch (right Front And Left Rear)   (Replaces: W10600015)			Immediately	$ 99.09
19A	W11568623		Knob (black)   (Replaces: W10569580)			Immediately	$ 13.95
19B	W10828837		Knob (stainless)   (Replaces: W10569582)			Immediately	$ 69.66
1A	W10665260		Use And Care Guide		Appelez-nous	-
1B	W10665227		Sheet, Tech		Appelez-nous	-
1C	9762761		Tips, Safe Cooking (english)		Appelez-nous	-
1D	W10400064		Guide, Quick Start (english)		Appelez-nous	-
1E	W10665228		Wiring Diagram		Appelez-nous	-
23A	W10728537		Overlay, Active (black)   (Replaces: W10145855)		Appelez-nous	-
23B	W10728546		Overlay, Active (stainless)   (Replaces: W10145856)		Appelez-nous	-
4A	W10795408		Cooktop (black)   (Replaces: W10536327)		Appelez-nous	-
8A	W11240519		Vent, Trim Top (black)   (Replaces: W10636528)				$ 141.47
NI	W11025616		Harness, Keypad   (Replaces: W10575120)			Immediately	$ 67.76
NI	W10664316		Clip, Harness				$ 18.87
NI	W10580260		Harness, Console		Appelez-nous	-
NI	W11226772		Harness, Display   (Replaces: W10598170)			Immediately	$ 213.24
NI	W10580239		Harness, Cooktop		Appelez-nous	-
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10580238		Harness, Main		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
