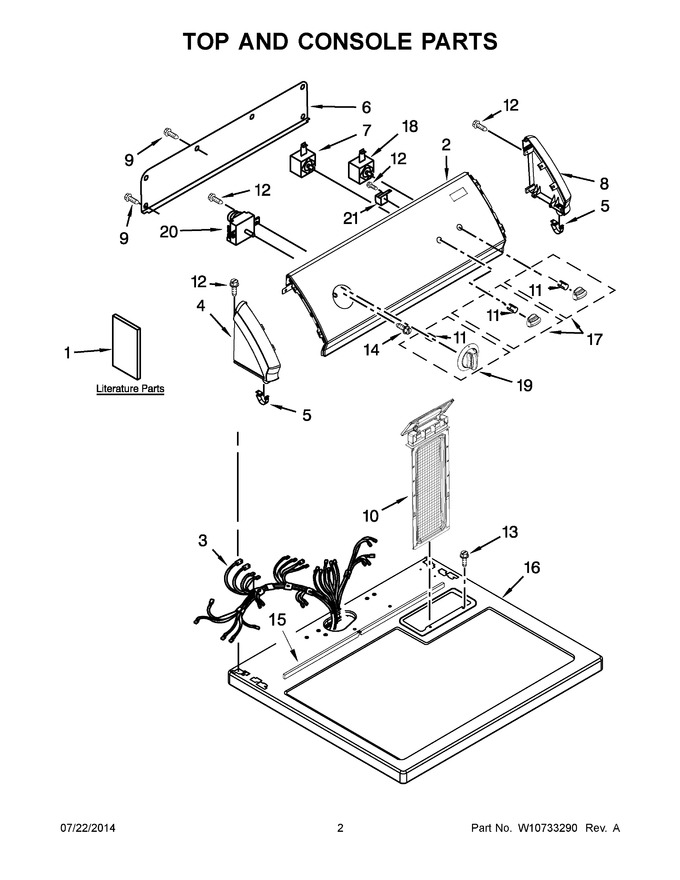

02 - Top And Console Parts


03 - Cabinet Parts


04 - Bulkhead Parts


05 - W10336852 Burner Assembly Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10514185		Installation Instructions		Appelez-nous	-
2	W10536505		Assembly, Panel & Bracket (white)		Appelez-nous	-
3	W10186122		Harness, Wiring		Appelez-nous	-
4	WP8559502		End Cap (left) (white)   (Replaces: 8559502)				$ 65.69
5	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 15.66
6	W10103406		Panel, Rear   (Replaces: 8274261)				$ 121.78
7	WP3399639		Switch, Temperature   (Replaces: 3399639)			Immediately	$ 118.04
8	WP8559501		End Cap (right) (white)   (Replaces: 8559501)				$ 65.49
9	WP693995		Screw   (Replaces: 693995)			Immediately	$ 6.80
10	W11778253		Screen, Lint (white)   (Replaces: W10641634)			Immediately	$ 49.17
11	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 7.38
12	WP90767		Screw   (Replaces: 3348629)			Immediately	$ 7.43
13	W11693756		Screw   (Replaces: 688983)			Immediately	$ 13.28
14	W10850756		Screw   (Replaces: 8533974)				$ 7.38
15	W10316616		Seal, Foam				$ 25.01
16	WP8563663		Top (white)   (Replaces: 8559800)			Immediately	$ 314.33
17	W10317458		Assembly, Control Knob (grey)		Appelez-nous	-
18	WPW10117655		Switch, Push To Start   (Replaces: W10117655)			Immediately	$ 80.89
19	W10317457		Assembly, Timer Knob (grey)		Appelez-nous	-
20	WPW10185981		Assembly, Timer (60 Hz.)   (Replaces: W10185981)			Immediately	$ 311.48
21	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 120.65
1A	W10096992		Use & Care Guide		Appelez-nous	-
1B	W10185985		Wiring Diagram		Appelez-nous	-
