01 - Cover Sheet
02 - Cooktop Parts
03 - Control Panel Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer And Rack Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:

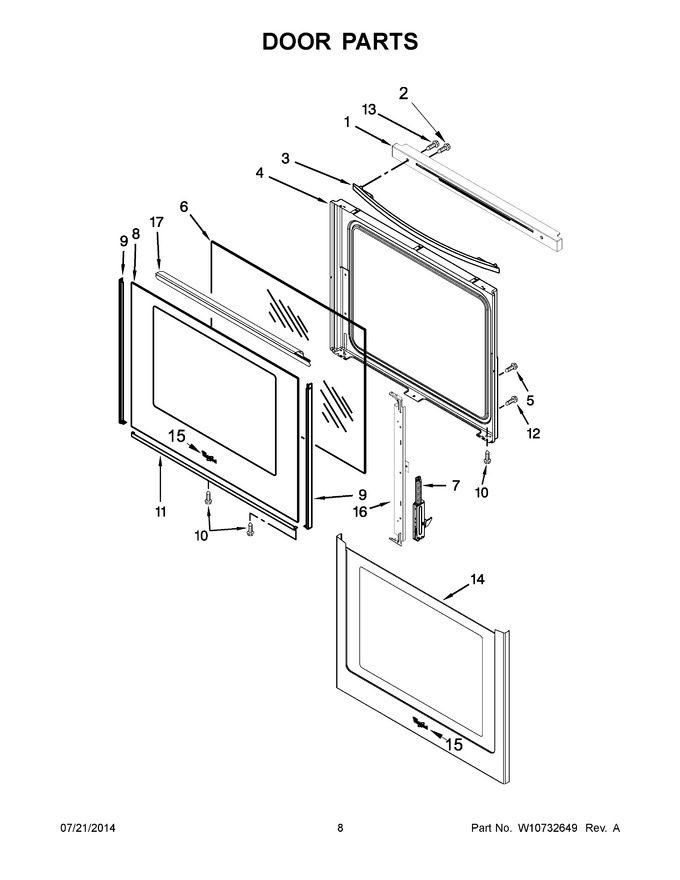

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10294855 | Trim, Top (black) |
|
Immediately | $ 134.23 | ||||
| 2 | WPW10317886 | Screw (Replaces: W10465151) |
|
Immediately | $ 7.38 | ||||
| 3 | WPW10618239 | Handle, Door (stainless) (Replaces: W10254687) |
|
Immediately | $ 180.39 | ||||
| 4 | WPW10297318 | Liner, Door (Replaces: W10297318) |
|
Immediately | $ 298.36 | ||||
| 5 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 8.31 | ||||
| 6 | WPW10300487 | Glass, Inner (double Coated) (Replaces: W10300487) |
|
$ 267.26 | |||||
| 7 | WPW10440013 | Hinge, Door (active) (Replaces: W10440013) |
|
Immediately | $ 60.30 | ||||
| 8 | WPW10289141 | Glass, Outer (white Ice Model) (Replaces: W10289141) |
|
$ 327.87 | |||||
| 9 | W10334003 | Trim, Side (white) |
|
Immediately | $ 84.74 | ||||
| 10 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 6.80 | ||||
| 11 | WPW10333990 | Trim, Lower (white) (Replaces: W10333990) |
|
Immediately | $ 72.20 | ||||
| 12 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 7.43 | ||||
| 13 | WPW10317886 | Screw (Replaces: W10317886) |
|
Immediately | $ 7.38 | ||||
| 14 | W10289144 | Glass Assembly, Outer Door (stainless (includes Badge)) |
|
$ 237.78 | |||||
| 15 | W11178521 | Badge (white) (Replaces: W10481434) |
|
Immediately | $ 58.63 | ||||
| 16 | W11116956 | Rail, Door (Replaces: W10294851) |
|
$ 120.38 | |||||
| 17 | W10294853 | Bracket, Glass Liner |
|
Immediately | $ 213.34 | ||||
| 18 | WPW10429492 | Standoff, Handle (white) (Replaces: W10429492) |
|
Immediately | $ 20.77 | ||||
| 11A | W10334031 | Trim, Lower (black) |
|
$ 70.07 | |||||
| 15A | W11178521 | Badge (grey) (Replaces: W10481433) |
|
Immediately | $ 58.63 | ||||
| 18A | WPW10410341 | Standoff, Handle (black) (Replaces: W10410341) |
|
$ 72.68 | |||||
| 18B | WPW10254688 | Standoff, Handle (stainless) (Replaces: W10254688) |
|
$ 69.73 | |||||
| 1A | WPW10335331 | Trim, Top (white) (Replaces: W10335331) |
|
Immediately | $ 118.45 | ||||
| 1B | W10335333 | Trim, Top (stainless) |
|
$ 157.47 | |||||
| 8A | WPW10289142 | Glass, Outer (black Ice Model) (Replaces: W10289142) |
|
$ 302.12 | |||||
| 9A | W10334004 | Trim, Side (black) |
|
$ 210.38 |
