01 - Cover Sheet
02 - Cooktop Parts
03 - Control Panel Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer And Rack Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:

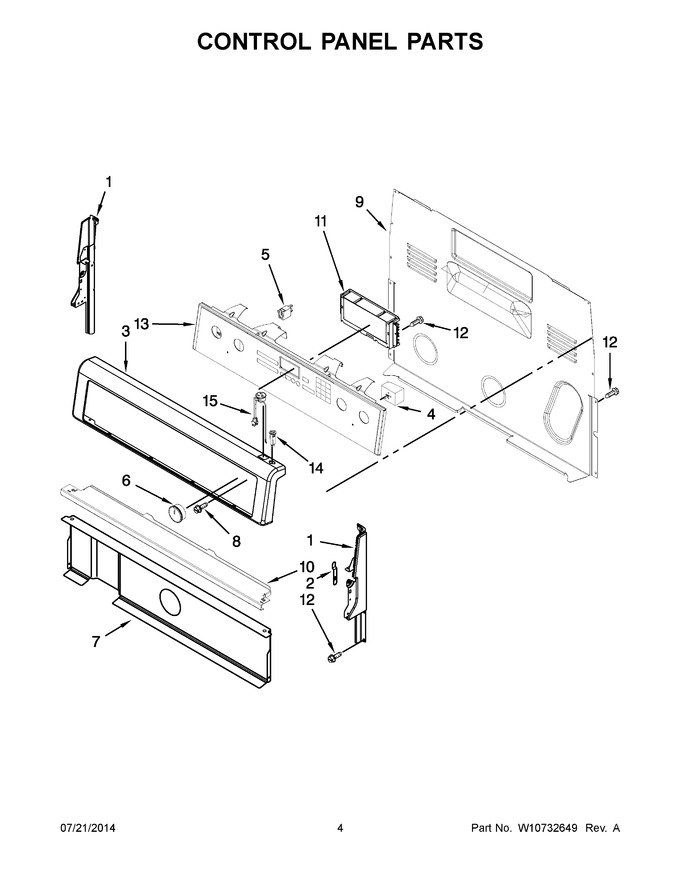

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11219365 | Endcap (white (left Hand)) (Replaces: W10184433) |
|
$ 38.21 | |||||
| 2 | 3196200 | Clip, Spring |
|
$ 9.41 | |||||
| 3 | WPW10318555 | Panel, Backguard (white) (Replaces: W10318555) |
|
$ 195.88 | |||||
| 4 | W10857622 | Infinite Switch, Dual (left Front & Right Front) (Replaces: W10437092) |
|
Immediately | $ 215.89 | ||||
| 5 | WP8523265 | Light, Indicator (125v) (Replaces: 8523265) |
|
Immediately | $ 91.76 | ||||
| 6 | WPW10430806 | Knob (stainless) (Replaces: W10430806) |
|
Immediately | $ 23.50 | ||||
| 7 | W10134247 | Shield, Heat |
|
Immediately | $ 322.94 | ||||
| 8 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 6.80 | ||||
| 9 | WP8272473 | Cover, Upper Rear (Replaces: 8272473) |
|
$ 197.14 | |||||
| 10 | W10525121 | Bracket, Console Mounting |
|
$ 88.97 | |||||
| 11 | WPW10340304 | Control, Range (mrc) (Replaces: W10340304) |
|
Immediately | $ 418.52 | ||||
| 12 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 13 | W10347930 | Overlay, Active (stainless) |
|
Immediately | $ 316.60 | ||||
| 14 | WP9757601 | Breaker, Circuit (15 Amp) (white) (Replaces: 9757601) |
|
Immediately | $ 59.00 | ||||
| 15 | W10849725 | Receptacle (white) (Replaces: W10488077) |
|
Immediately | $ 100.00 | ||||
| 14A | WP9757602 | Breaker, Circuit (15 Amp) (black) (Replaces: 9757602) |
|
Immediately | $ 54.82 | ||||
| 15A | W10861164 | Receptacle (black) (Replaces: W10488078) |
|
Immediately | $ 16.62 | ||||
| 1A | W11219664 | Endcap (black (left Hand)) (Replaces: W10184437) |
|
Immediately | $ 138.45 | ||||
| 1B | W11219370 | Endcap (white (right Hand)) (Replaces: W10184434) |
|
$ 54.75 | |||||
| 1C | W11219665 | Endcap (black (right Hand)) (Replaces: W10184438) |
|
Immediately | $ 40.65 | ||||
| 3A | W10318554 | Panel, Backguard (black) |
|
$ 128.93 | |||||
| 3B | WPW10318553 | Panel, Backguard (stainless) (Replaces: W10318553) |
|
$ 269.27 | |||||
| 4A | W10911303 | Infinite Switch, Single (right Rear) (Replaces: W10578768) |
|
Immediately | $ 103.74 | ||||
| 4B | W10917724 | Switch Infinite, Hyper (left Rear) (Replaces: W10437094) |
|
Immediately | $ 116.42 |
