View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Cooktop Parts
03 - Control Panel Parts
04 - Chassis Parts

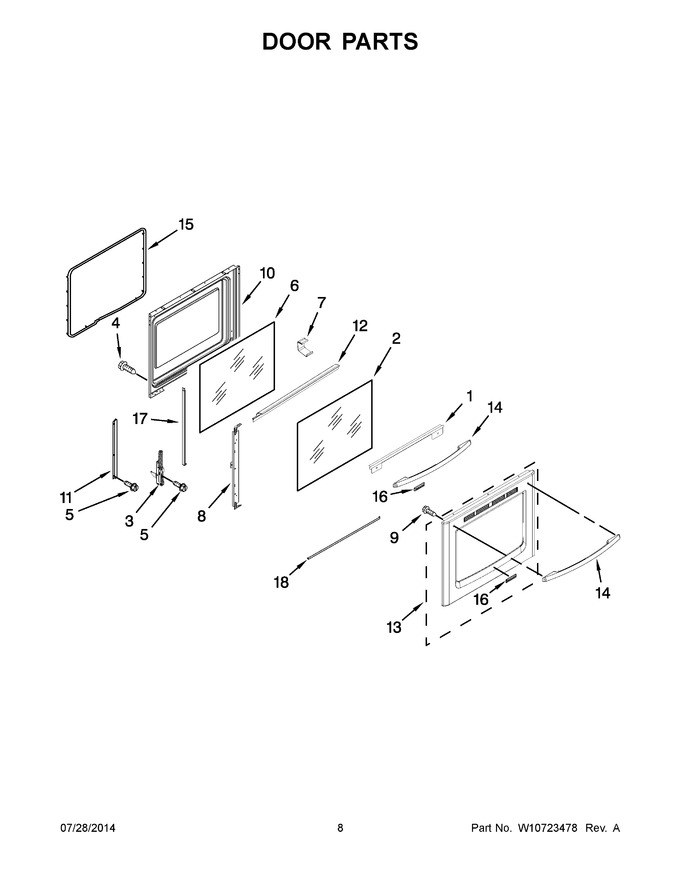

05 - Door Parts
06 - Drawer Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10335331 | Trim, Vent (white) (Replaces: W10335331) |
|
Immediately | $ 112.82 | ||||
| 2 | WPW10495962 | Glass, Outer Door (white) (Replaces: W10495962) |
|
$ 362.49 | |||||
| 3 | WPW10440013 | Hinge, Door (active) (Replaces: W10440013) |
|
Immediately | $ 57.42 | ||||
| 4 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 7.87 | ||||
| 5 | W11233072 | Screw (Replaces: W10362924) |
|
Immediately | $ 13.25 | ||||
| 6 | WPW10300487 | Glass, Inner (double Coated) (Replaces: W10300487) |
|
$ 267.26 | |||||
| 7 | W10137382 | Clip, Panel |
|
Immediately | $ 43.58 | ||||
| 8 | W11116956 | Rail, Door (Replaces: W10294851) |
|
$ 120.38 | |||||
| 9 | WPW10317886 | Screw (Replaces: W10317886) |
|
Immediately | $ 7.38 | ||||
| 10 | WPW10297318 | Liner, Door (Replaces: W10297318) |
|
Immediately | $ 298.36 | ||||
| 11 | W10294852 | Bracket, Glass |
|
$ 144.19 | |||||
| 12 | W10294853 | Bracket, Glass Liner |
|
Immediately | $ 213.34 | ||||
| 13 | WPW10490829 | Glass Assembly, Outer Door (stainless) (Replaces: W10490829) |
|
$ 341.68 | |||||
| 14 | W10284917 | Handle, Door (white) |
|
$ 246.39 | |||||
| 15 | W11562931 | Gasket, Door (Replaces: W10162385) |
|
Immediately | $ 78.98 | ||||
| 16 | WPW10243393 | Nameplate (white) (Replaces: W10243393) |
|
$ 62.98 | |||||
| 17 | W10334003 | Trim, Side (white) |
|
Immediately | $ 80.72 | ||||
| 18 | WPW10333990 | Trim, Lower (white) (Replaces: W10333990) |
|
Immediately | $ 72.20 | ||||
| 14A | W10284916 | Handle, Door (black) |
|
$ 222.89 | |||||
| 14B | WPW10289076 | Handle, Door (stainless) (Replaces: W10289076) |
|
$ 301.15 | |||||
| 16A | WPW10243392 | Nameplate (black) (Replaces: W10243392) |
|
$ 66.33 | |||||
| 16B | WPW10243391 | Nameplate (grey) (Replaces: W10243391) |
|
$ 52.48 | |||||
| 17A | W10334004 | Trim, Side (black) |
|
$ 210.38 | |||||
| 18A | W10334031 | Trim, Lower (black) |
|
$ 70.07 | |||||
| 1A | W10294855 | Trim, Vent (black) |
|
Immediately | $ 127.84 | ||||
| 1B | W10335333 | Trim, Vent (stainless) |
|
$ 157.47 | |||||
| 2A | WPW10495963 | Glass, Outer Door (black) (Replaces: W10495963) |
|
$ 145.91 | |||||
| 3A | WPW10440013 | Hinge, Door (active) (stainless Model) (Replaces: W10388635) |
|
Immediately | $ 57.42 |
