SELECT A DIAGRAM

01 - Cover Sheet

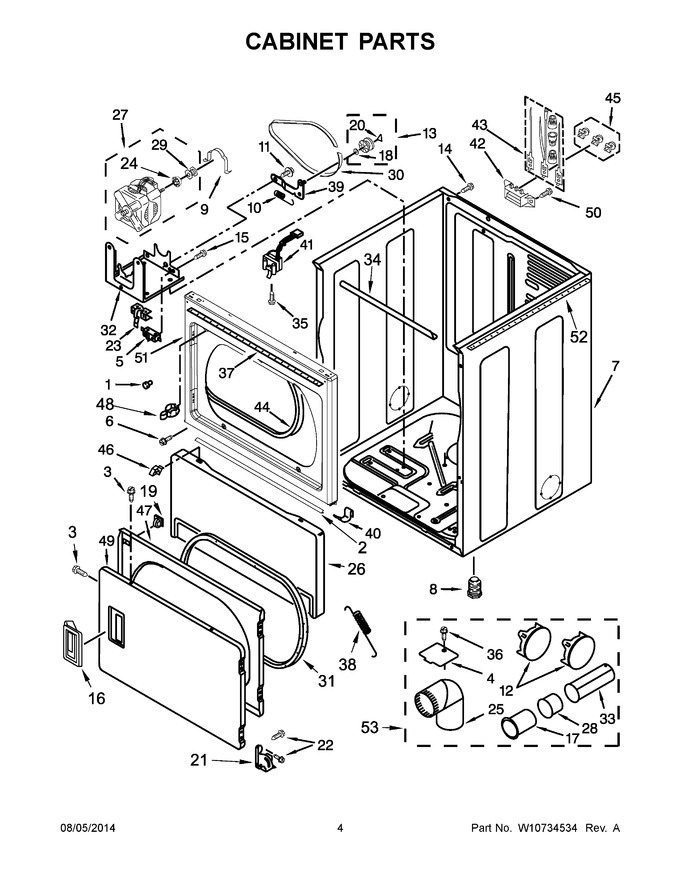

02 - Top And Console Parts


03 - Cabinet Parts


04 - Bulkhead Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	693152		Bumper				$ 11.51
2	W10576519		Seal, Deflector		Appelez-nous	-
3	WP90767		Screw   (Replaces: 90767)			Immediately	$ 8.25
4	WPW10354249		Plate, Cover   (Replaces: W10354249)				$ 9.41
5	WP8318457		Switch, Broken Belt   (Replaces: 8318457)				$ 44.19
6	WP488729		Screw   (Replaces: 695240)			Immediately	$ 8.28
7	W11417441		Cabinet (white)   (Replaces: W10547697)				$ 440.17
8	49621		Foot, Dryer   (Replaces: 3392100)			Immediately	$ 8.55
9	WP660658		Clamp, Motor   (Replaces: 660658)				$ 8.22
10	WPW10446781		Spring, Idler   (Replaces: W10446781)			Immediately	$ 25.80
11	WP3389420		Screw   (Replaces: 3389420)				$ 8.62
12	WPW10404617		Plug, Multivent (midnight Grey)   (Replaces: W10404617)				$ 75.58
13	279640		Assembly, Pulley   (Replaces: W10468057)			Immediately	$ 32.51
14	W10850756		Screw   (Replaces: 8533974)				$ 8.20
15	3400934		Assembly, Screw And Insulator		Appelez-nous	-
16	WPW10284093		Handle, Door (white)   (Replaces: W10284093)				$ 105.29
17	WP8563747		Pipe, Exhaust (medium)   (Replaces: 8563747)				$ 95.95
18	WPW10121334		Washer   (Replaces: W10121334)			Immediately	$ 7.55
19	WP3389441		Assembly, Door Catch   (Replaces: 3389441)			Immediately	$ 7.29
20	WPW10512946		Washer, Tri Ring   (Replaces: W10512946)			Immediately	$ 9.68
21	WP3387559		Assembly, Hinge (left)   (Replaces: 3387559)				$ 109.20
22	WP488627		Screw   (Replaces: 342055)				$ 8.11
23	W10854043		Lever, Switch   (Replaces: W10083220)				$ 30.45
24	WP3393657		Restrainer, Belt   (Replaces: 3393657)			Immediately	$ 139.08
25	WPW10416072		Elbow   (Replaces: 49026)				$ 28.16
26	WP3406797		Panel, Toe (white)   (Replaces: 697215)				$ 250.25
27	W10489550		Motor, Assembly 60 Hz.		Appelez-nous	-
28	WPW10331278		Pipe, Exhaust (short)   (Replaces: W10331278)				$ 82.90
29	W10837625		Pulley, Motor   (Replaces: 3389729)			Immediately	$ 12.77
30	661570V		Belt, Drive   (Replaces: 3387610)			Immediately	$ 32.81
31	W10325058		Seal, Door				$ 136.50
32	WP3387118		Bracket, Motor   (Replaces: 3387118)				$ 140.27
33	WP8563749		Pipe, Exhaust (long)   (Replaces: 8563749)				$ 93.24
34	W10236068		Bracket, Cabinet				$ 24.47
35	WP3395530		Screw   (Replaces: 697773)				$ 8.57
36	WP693995		Screw   (Replaces: 693995)			Immediately	$ 7.55
37	WP8318396A		Seal, Foam   (Replaces: 8318396)				$ 39.71
38	WP3387565		Spring, Door   (Replaces: 3387565)				$ 41.32
39	W10837240		Bracket, Idler   (Replaces: 3388674)			Immediately	$ 35.78
40	WPW10291934		Clip   (Replaces: W10291934)				$ 8.14
41	WPW10237959		Switch, Door   (Replaces: W10237959)			Immediately	$ 62.63
42	WP3397659		Block, Terminal   (Replaces: 3397659)				$ 24.17
43	279318		Terminal, Brass And Tinned (includes Terminal Block Screw Kit)			Immediately	$ 106.04
44	WP3387242		Seal, Front Panel   (Replaces: 3387242)			Immediately	$ 31.42
45	279393		Screw Kit, Terminal Block			Immediately	$ 55.66
46	WP3388229		Retainer   (Replaces: 3388229)			Immediately	$ 8.45
47	WP8066045		Door, Inner   (Replaces: 8066045)				$ 204.20
48	W11366436		Strike, Door   (Replaces: W10675495)				$ 25.18
49	W10279553		Door, Outer (white)		Appelez-nous	-
50	WP308685		Screw   (Replaces: 3393008)			Immediately	$ 7.87
51	697227		Panel, Front (white)		Appelez-nous	-
52	W10336128		Seal, Foam				$ 15.08
53	W10470674		Dryer Exhaust Kit (for Side & Bottom Venting), Midnight (grey)   (Replaces: W10186596)			Immediately	$ 85.28
21A	WP3387560		Assembly, Hinge (right)   (Replaces: 3387560)				$ 109.20
NI	49621		Foot, Optional (extended Length Package Of 2) (not Included)   (Replaces: 279810)			Immediately	$ 8.55

    View Diagram in Separate Window       Print Part List
