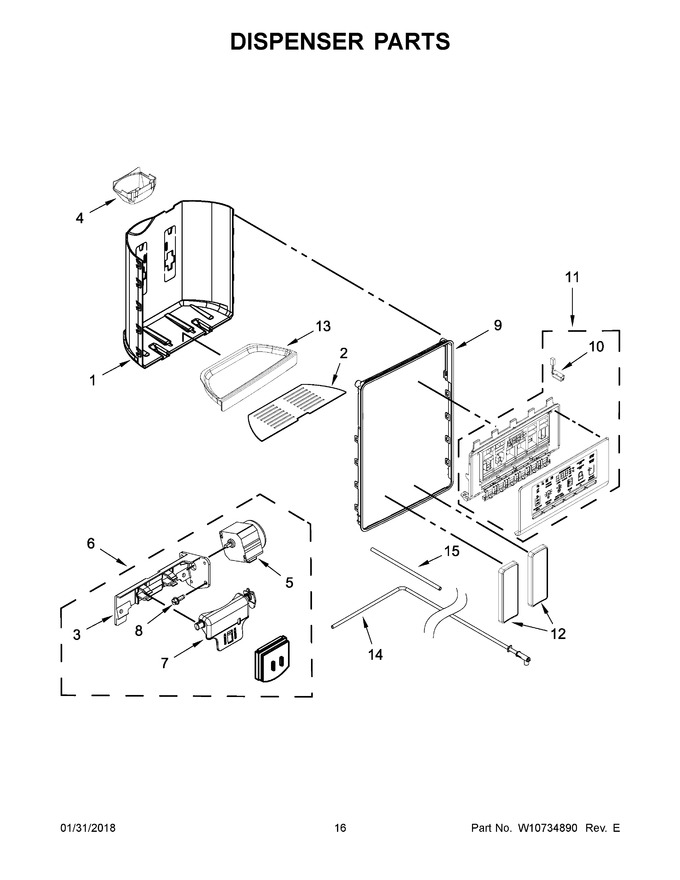

09 - Dispenser Parts


10 - Air Flow Parts


11 - Unit Parts


12 - Ice Maker Parts


13 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10254254		False Wall, Dispenser (white)				$ 125.18
2	WPW10276209		Grate, Drip Tray (stainless)   (Replaces: W10276209)				$ 73.40
3	W10174827		Bracket, Ice Door				$ 68.78
4	WPW10435760		Guide, Ice   (Replaces: W10435760)			Immediately	$ 21.55
5	WPW10205978		Motor, Dispenser   (Replaces: W10205978)				$ 93.71
6	W11098702		Assembly, Separator   (Replaces: W10781994)				$ 139.10
7	WPW10346124		Support, Ice Door   (Replaces: W10346124)				$ 37.67
8	WP4449745		Screw   (Replaces: 4449745)				$ 7.18
9	W10457583		Ring, Trim (chrome)				$ 106.39
10	W11290115		Assembly, Led   (Replaces: W10238083)				$ 76.01
11	W10822647		Assembly, User Interface (includes Light Feature) (black)   (Replaces: W10798791)		Appelez-nous	-
12	W10370583		Pad, Ice And Water (white)		Appelez-nous	-
13	W10254258		Tray, Housing (white)				$ 89.13
14	WPW10386778		Assembly, Water Fitting   (Replaces: W10386778)			Immediately	$ 119.47
15	W11620106		Tube, Water   (Replaces: W10691730)				$ 106.06
11A	W10822648		Assembly, User Interface (includes Light Feature) (silver)   (Replaces: W10798792)		Appelez-nous	-
12A	W11812026		Pad, Ice And Water (black)   (Replaces: W10370577)				$ 56.73
12B	W11624941		Pad, Ice And Water (grey)   (Replaces: W10370582)				$ 63.74
13A	W10254259		Tray, Housing (black)				$ 64.36
13B	W10276225		Tray, Housing (satina)				$ 66.65
1A	W10254255		False Wall, Dispenser (black)				$ 121.03
1B	W10276226		False Wall, Dispenser (satina)				$ 127.04
