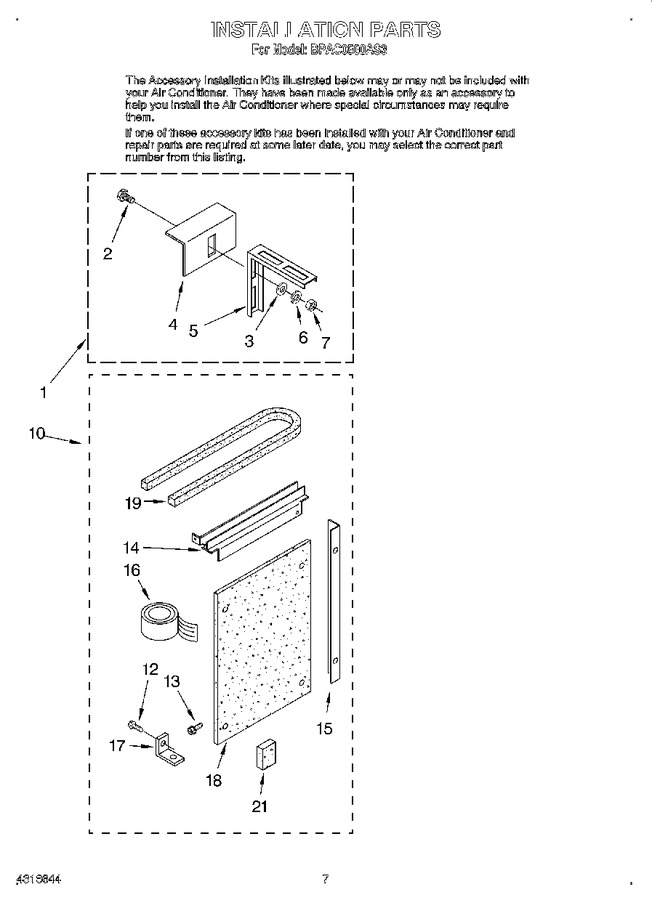

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 485678 | Kit, Outside Sill (for Additional Support) |
|
- | |||||
| 2 | 488750 | Bolt, 1/4-20 X 3/4 (6) |
|
- | |||||
| 3 | 120393 | Washer, Flat (6) |
|
- | |||||
| 4 | 645515 | Bracket, Sill (2) |
|
- | |||||
| 5 | 485466 | Bracket, Rail (2) |
|
- | |||||
| 6 | 486009 | Washer, Lock (6) |
|
- | |||||
| 7 | 487541 | Nut, 1/4-20 (6) |
|
- | |||||
| 10 | 994818 | Kit, Window Installation |
|
- | |||||
| 12 | 47435 | Screw, Wood |
|
- | |||||
| 13 | WP965173 | Screw, Sheet Metal (8) (Replaces: 965173) |
|
Immediately | $ 10.68 | ||||
| 14 | 645563 | Bracket, Mounting (left Side) |
|
- | |||||
| 14 | 645562 | Bracket, Mounting ((right Side)) |
|
- | |||||
| 15 | 646988 | Angle, Side (2) |
|
- | |||||
| 16 | 855265 | Seal, Strip |
|
- | |||||
| 17 | 644228 | Bracket, Window Lock |
|
- | |||||
| 18 | 1166430 | Board, Filler (2) |
|
- | |||||
| 19 | 855841 | Seal, Meeting Rail |
|
$ 7.86 | |||||
| 21 | 995274 | Spacer, Block |
|
- | |||||
| LIT485706 | Instructions, Installation (outside Sill Kit) |
|
- | ||||||
| LIT1155124 | Instructions, Installation (standard Window Mounting Kit) |
|
- |
