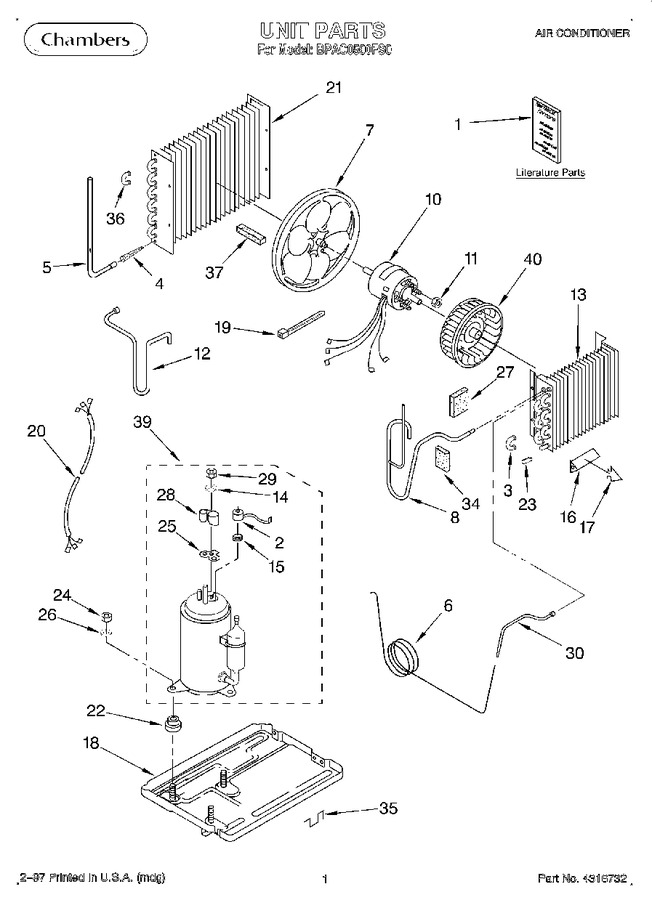

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	1161179		Overload		Appelez-nous	-
3	855199		Bend, Return (6)		Appelez-nous	-
4	WP1162526		Strainer   (Replaces: 1162526)				$ 75.98
5	1168637		Tube, Connect		Appelez-nous	-
6	1168113		Tube, Restrictor		Appelez-nous	-
7	1158524		Blade, Fan		Appelez-nous	-
8	1166117		Tube, Suction		Appelez-nous	-
10	1166119		Motor, Fan		Appelez-nous	-
11	WP488130		Nut, Hex 8-32 (4)   (Replaces: 488130)				$ 6.59
12	1162781		Tube, Discharge		Appelez-nous	-
13	1169737		Evaporator		Appelez-nous	-
14	950037		Gasket, Nut		Appelez-nous	-
15	950032		Spring, Overload		Appelez-nous	-
16	996773		Anticipator, Temp.		Appelez-nous	-
17	475577		Clip, Anticipator		Appelez-nous	-
18	1157926		Base		Appelez-nous	-
19	WPW10339879		Cable Tie   (Replaces: 857547)				$ 7.47
20	484136		Harness, Wiring		Appelez-nous	-
21	1168118		Condenser		Appelez-nous	-
22	950212		Grommet (3)		Appelez-nous	-
23	1169761		Bend, Return (1)		Appelez-nous	-
24	858122		Locknut (3)		Appelez-nous	-
25	WP950035		Gasket, Terminal Cover   (Replaces: 950035)				$ 78.01
26	489108		Washer (3)		Appelez-nous	-
27	1164551		Sealer, Tube		Appelez-nous	-
28	WP950036		Cover, Terminal   (Replaces: 950213)				$ 9.83
29	WP950027		Nut, Hex   (Replaces: 950027)				$ 5.20
30	1165066		Tube, Feeder (restrictor)		Appelez-nous	-
34	1159443		Sealer, Tube		Appelez-nous	-
35	949634		Clip, Mtg (2) (cabinet-front)		Appelez-nous	-
36	708531		Bend, Return (5)		Appelez-nous	-
37	WP854334		Seal, Condenser Bottom   (Replaces: 859600)				$ 12.55
39	1161178		Compressor Assembly		Appelez-nous	-
40	1164650		Wheel, Blower		Appelez-nous	-
	LIT1165234		Wiring Diagram		Appelez-nous	-
	LIT1169191		Owners Manual		Appelez-nous	-
	LIT1168163		Tech Sheet		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
