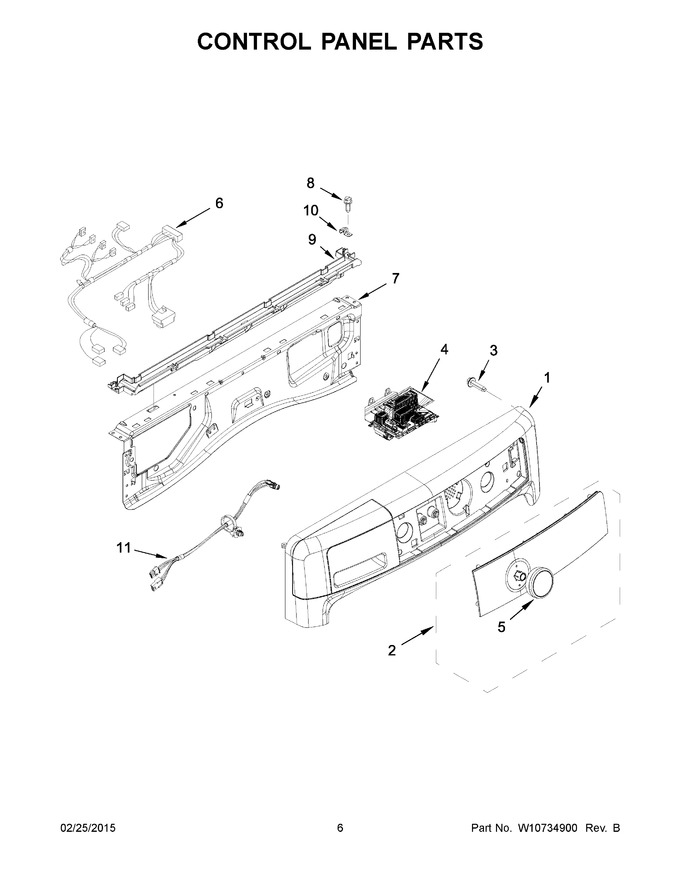

01 - Cover Sheet
02 - Top And Cabinet Parts
03 - Door Parts
04 - Control Panel Parts
05 - Dispenser Parts
06 - Tub And Basket Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10639967 | Assembly, Console (white) |
|
- | |||||
| 2 | W10748424 | Assembly, Iml (white) |
|
$ 627.17 | |||||
| 3 | W10489172 | Screw |
|
$ 10.78 | |||||
| 4 | W10693608 | Control Unit, Appliance |
|
$ 258.23 | |||||
| 5 | W10853910 | Assembly, Control Knob (chrome) (Replaces: W10727011) |
|
$ 48.55 | |||||
| 6 | W10685628 | Harness, Main (upper) |
|
$ 147.33 | |||||
| 7 | W10208197 | Bracket, Console |
|
$ 157.09 | |||||
| 8 | WP489464 | Screw (Replaces: W10142290) |
|
Immediately | $ 7.54 | ||||
| 9 | WPW10653575 | Water Channel (Replaces: W10636058) |
|
$ 81.85 | |||||
| 10 | W10317566 | Clip, Spring |
|
$ 8.24 | |||||
| 11 | WPW10442440 | Harness, Ui (Replaces: W10442440) |
|
$ 25.69 | |||||
| 1A | W10433200 | Assembly, Console (chrome Shadow) |
|
$ 306.34 | |||||
| 2A | W10748425 | Assembly, Iml (chrome Shadow) |
|
$ 686.23 |
