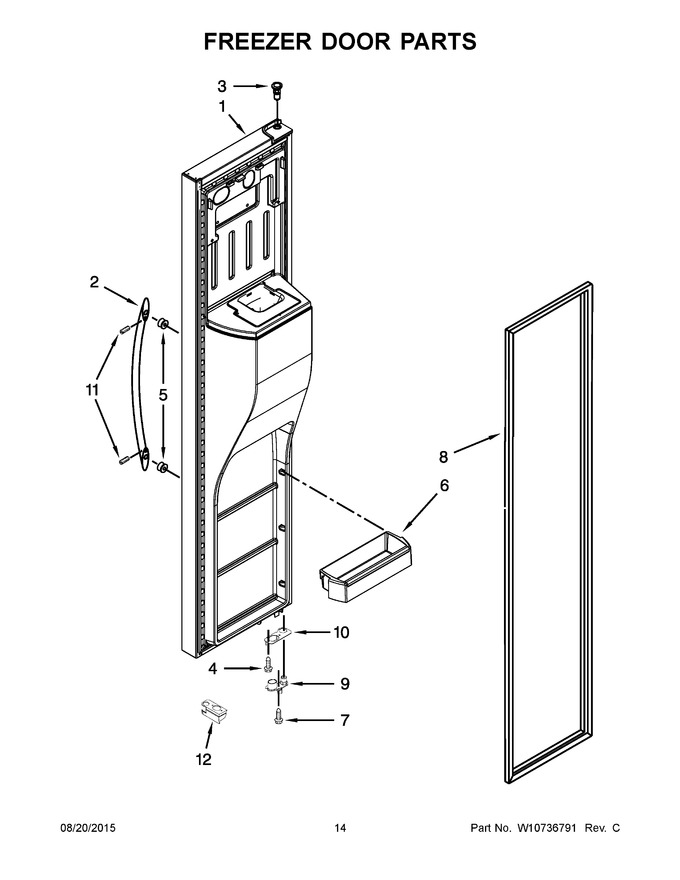

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LW10744163 | Door, Freezer (includes Item 8 And Dispenser Front Parts) (stainless) (Replaces: W10744163) |
|
- | |||||
| 2 | W10899551 | Handle (brushed Aluminum) (Replaces: W10407272) |
|
Immediately | $ 169.94 | ||||
| 3 | WP2182181 | Thimble, Top (Replaces: 2200086) |
|
$ 7.34 | |||||
| 4 | WPW10296804 | Screw (Replaces: W10296804) |
|
$ 10.25 | |||||
| 5 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 11.59 | ||||
| 6 | WPW10308389 | Door Bin (Replaces: W10308389) |
|
$ 63.62 | |||||
| 7 | WPW10296816 | Screw (Replaces: W10296816) |
|
$ 7.25 | |||||
| 8 | W10355591 | Gasket, Door (grey) (Replaces: W10249919) |
|
Immediately | $ 294.71 | ||||
| 9 | WPW10257206 | Closer, Upper Cam Door (grey) (Replaces: W10257206) |
|
Immediately | $ 11.86 | ||||
| 10 | W11293380 | Bracket, Door Stop (Replaces: W10247907) |
|
$ 62.29 | |||||
| 11 | W11366418 | Set Screw (silver) (Replaces: W10010140) |
|
Immediately | $ 16.59 | ||||
| 12 | WPW10632062 | Cover, Door Stop (grey) (Replaces: W10632062) |
|
$ 6.80 |
