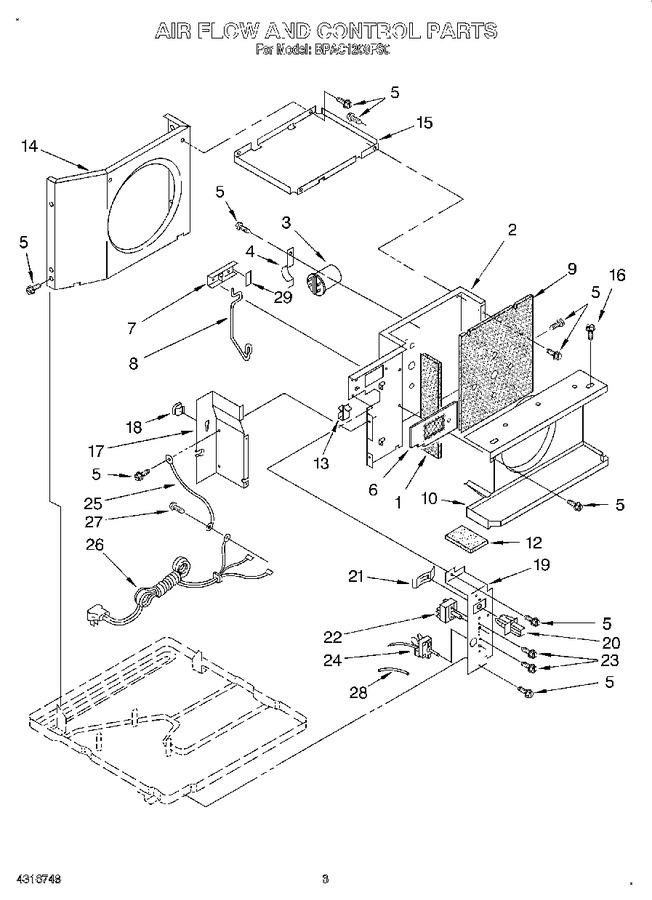

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1166339		Insulation (side, Dividing Wall)		Appelez-nous	-
2	1167154		Wall, Dividing		Appelez-nous	-
3	1162594		Capacitor, Running		Appelez-nous	-
4	1167611		Bracket, Running Capacitor		Appelez-nous	-
5	488481		Screw (repair) No.10 X 3/8		Appelez-nous	-
5	WP489069		Screw, Sm No.8 X 1/2a   (Replaces: 488480)			Immediately	$ 7.56
6	1162926		Screen, Insulation Assembly		Appelez-nous	-
7	644206		Door, Exhaust		Appelez-nous	-
8	856042		Arm, Exhaust Door		Appelez-nous	-
9	1166338		Insulation (back, Dividing Wall)		Appelez-nous	-
10	856039		Shroud, Evaporator		Appelez-nous	-
12	1158576		Insulation, Control Panel (top)		Appelez-nous	-
13	852451		Clamp, Cable		Appelez-nous	-
14	856037		Shroud, Condenser		Appelez-nous	-
15	1156536		Support, Unit (2)		Appelez-nous	-
16	WP488729		Screw, Sems Sm No.8 X 1/2a (2)   (Replaces: 487910)			Immediately	$ 7.45
17	994561		Extension, Dividing Wall		Appelez-nous	-
18	644401		Clip, Retainer		Appelez-nous	-
19	996966		Panel, Control		Appelez-nous	-
20	1167161		Actuator, Exhaust Door		Appelez-nous	-
21	858765		Retainer, Dent Spring		Appelez-nous	-
22	1165243		Switch, Rotary		Appelez-nous	-
23	488734		Screw, Machine 6-32 X .175 (4)		Appelez-nous	-
24	1166758		Control, Temperature		Appelez-nous	-
25	856094		Wire, Ground		Appelez-nous	-
26	1165241		Cable, Appliance		Appelez-nous	-
27	WPW10141604		Screw, St 8-32 X 3/8   (Replaces: 487871)				$ 7.97
28	475841		Insulator, Sleeve Temperature Control		Appelez-nous	-
29	1159175		Spacer		Appelez-nous	-
