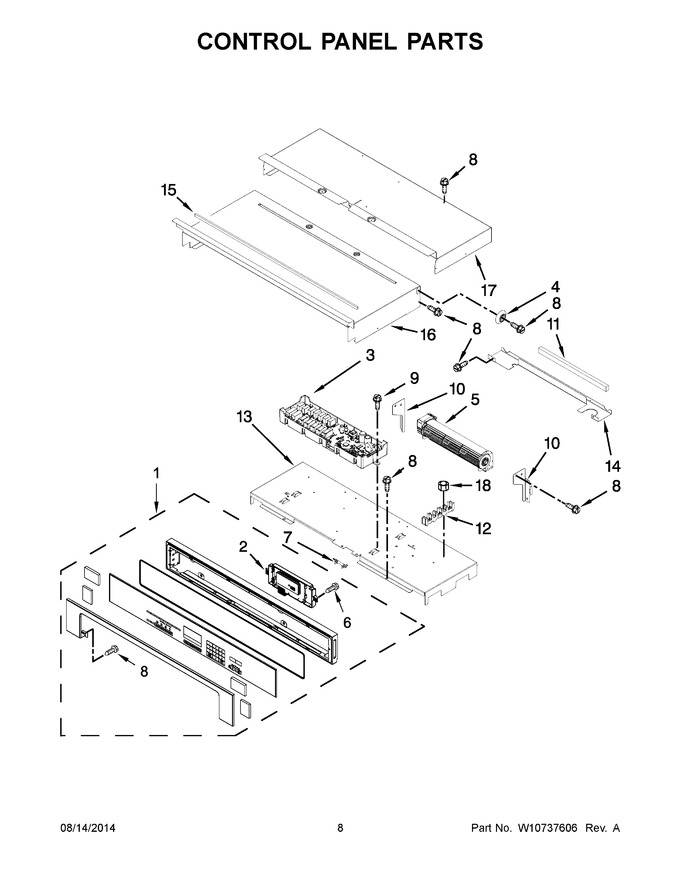

01 - Cover Sheet
02 - Oven Parts
03 - Oven Door Parts
04 - Internal Oven Parts
05 - Control Panel Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10863319 | Assembly, Control Panel (includes Overlay) (stainless) (Replaces: W10695073) |
|
$ 630.13 | |||||
| 2 | W10803991 | Board, Display Mrc2 (Replaces: W10532437) |
|
Immediately | $ 378.04 | ||||
| 3 | WPW10695609 | Board, Mrc2 Main (Replaces: W10695609) |
|
$ 291.06 | |||||
| 4 | W10363824 | Spacer, Lateral |
|
- | |||||
| 5 | W10641253 | Blower |
|
$ 127.63 | |||||
| 6 | WP12990527 | Screw (Replaces: 7101P403-60) |
|
Immediately | $ 7.88 | ||||
| 7 | WPW10545255 | Fuse, Thermal (Replaces: W10436434) |
|
Immediately | $ 25.43 | ||||
| 8 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.43 | ||||
| 9 | WP7101P434-60 | Screw (Replaces: 7101P434-60) |
|
$ 6.57 | |||||
| 10 | W10351257 | Bracket, Blower (left) |
|
- | |||||
| 11 | W10491987 | Block, Foam (Replaces: 4451758) |
|
Immediately | $ 7.33 | ||||
| 12 | WPW10245259 | Block, Terminal (Replaces: 7401P038-60) |
|
Immediately | $ 31.65 | ||||
| 13 | W10347650 | Tray, Electronic |
|
$ 113.47 | |||||
| 14 | W10509164 | Chassis, Divider Back |
|
- | |||||
| 15 | WPW10657548 | Gasket, Rubber (Replaces: W10657548) |
|
$ 80.69 | |||||
| 16 | W10318192 | Chassis, Cover Top Front 30 |
|
$ 124.93 | |||||
| 17 | W10904156 | Chassis, Cover Top Back 30 (Replaces: W10318194) |
|
- | |||||
| 18 | WP7103P027-60 | Nut (Replaces: 7103P027-60) |
|
Immediately | $ 6.80 | ||||
| 10A | W10283078 | Bracket, Blower (right) |
|
- |
