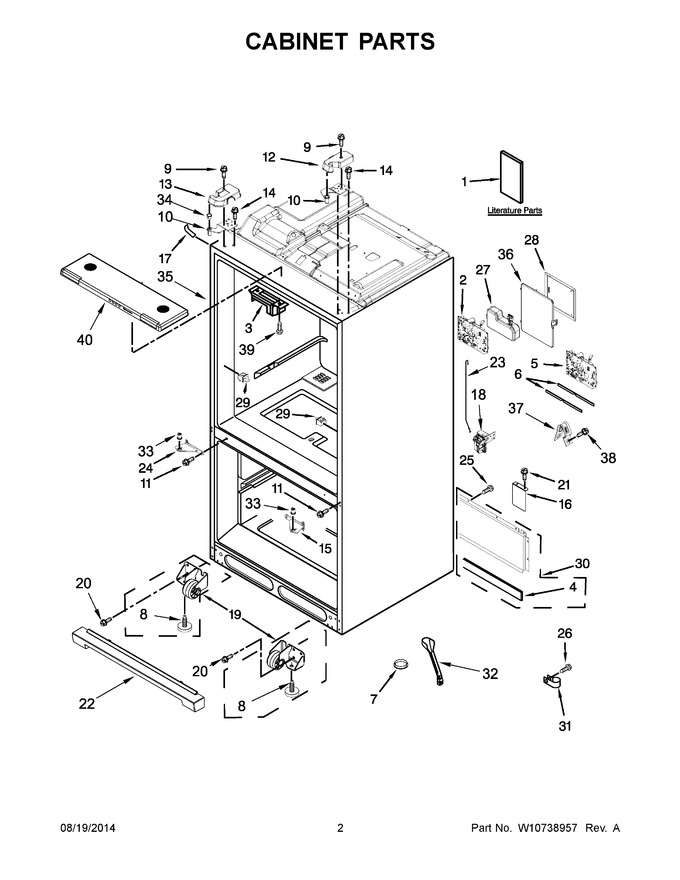

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10669163 | Tech Sheet (english) |
|
- | |||||
| 2 | WPW10453401 | Supply, Power (Replaces: W10453401) |
|
Immediately | $ 222.40 | ||||
| 3 | WPW10344432 | Block, Pivot (Replaces: W10344432) |
|
Immediately | $ 17.24 | ||||
| 4 | W10505487 | Gasket |
|
$ 25.81 | |||||
| 5 | WPW10628307 | Board, Control (Replaces: W10628307) |
|
$ 353.93 | |||||
| 6 | W10415341 | Gasket, Hv Box |
|
$ 33.30 | |||||
| 7 | A3076901 | Plug, Button (black) |
|
$ 5.70 | |||||
| 8 | WPW10141622 | Brake, Roller (Replaces: W10141622) |
|
Immediately | $ 7.42 | ||||
| 9 | WP98165 | Screw (Replaces: 12990521) |
|
$ 7.71 | |||||
| 10 | W11592405 | Hinge, Top (left Hand) (Replaces: W10248410) |
|
$ 29.08 | |||||
| 11 | W11573362 | Screw (grey) (Replaces: W10403212) |
|
$ 13.25 | |||||
| 12 | WPW10407158 | Cover, Right Hinge (grey) (Replaces: W10407158) |
|
$ 20.68 | |||||
| 13 | WPW10471618 | Cover, Left Hinge (grey) (Replaces: W10471618) |
|
$ 22.74 | |||||
| 14 | WPW10308751 | Screw (black) (Replaces: W10308751) |
|
$ 7.96 | |||||
| 15 | W11240748 | Hinge, Center (right) (grey) (Replaces: W10248703) |
|
$ 70.84 | |||||
| 16 | W10336736 | Cover, Roller |
|
- | |||||
| 17 | WP12587703AP | Cover, Corner (grey) (Replaces: 12587703AP) |
|
$ 7.26 | |||||
| 18 | W10865826 | Valve, Water (Replaces: W10394076) |
|
Immediately | $ 72.84 | ||||
| 19 | W11820444 | Assembly, Roller (left Hand) (Replaces: W10515763) |
|
Immediately | $ 33.62 | ||||
| 20 | 67006564 | Screw (Replaces: 12991302) |
|
Immediately | $ 7.34 | ||||
| 21 | WP33001882 | Screw (Replaces: 12990701) |
|
$ 75.34 | |||||
| 22 | WPW10637671 | Grille, Toe (grey) (Replaces: W10637671) |
|
Immediately | $ 129.11 | ||||
| 23 | W11209890 | Tube, Water (Replaces: W10678711) |
|
$ 107.34 | |||||
| 24 | W10878115 | Hinge, Center (left) (grey) (Replaces: W10248706) |
|
Immediately | $ 69.17 | ||||
| 25 | WPW10141645 | Screw (Replaces: W10141645) |
|
$ 7.25 | |||||
| 26 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 6.57 | ||||
| 27 | WPW10306786 | Supply, Led Power (Replaces: W10421948) |
|
Immediately | $ 287.42 | ||||
| 28 | WPW10485658 | Cover, Control Box (Replaces: W10485658) |
|
$ 74.73 | |||||
| 29 | W11396033 | Switch, Light (Replaces: 12466105) |
|
Immediately | $ 33.57 | ||||
| 30 | W11482027 | Cover, Unit (Replaces: W10577369) |
|
Immediately | $ 109.22 | ||||
| 31 | W11456069 | Clamp, Tube (Replaces: M0108107) |
|
Immediately | $ 20.16 | ||||
| 32 | W10503562 | Tube, Drain |
|
$ 24.25 | |||||
| 33 | WPW10505294 | Coupler, Door (Replaces: W10505294) |
|
$ 11.90 | |||||
| 34 | W10212137 | Retainer, Door |
|
$ 12.32 | |||||
| 35 | N/P | Cabinet (not A Servicable Part) |
|
- | |||||
| 36 | W10277839 | Lid, Hv |
|
$ 66.52 | |||||
| 37 | 549193 | Clamp, Power Cord |
|
$ 12.65 | |||||
| 38 | WPW10141645 | Screw (Replaces: W10141645) |
|
$ 7.25 | |||||
| 39 | W10854958 | Screw (Replaces: 12990302) |
|
$ 7.11 | |||||
| 40 | N/P | Assembly, Coolvox Speaker (call For Service: U.s.1-800-253-1301 / Canada1-800-807-6777) |
|
- | |||||
| 10A | W11592404 | Hinge, Top (right Hand) (Replaces: W10248409) |
|
$ 23.31 | |||||
| 19A | W11820445 | Assembly, Roller (right Hand) (Replaces: W10515762) |
|
Immediately | $ 33.62 | ||||
| 1A | W10676130 | Tech Sheet (french) |
|
- | |||||
| 1B | W10669167 | Use And Care Guide |
|
- | |||||
| 1C | W10669201 | Energy Guide |
|
- |
