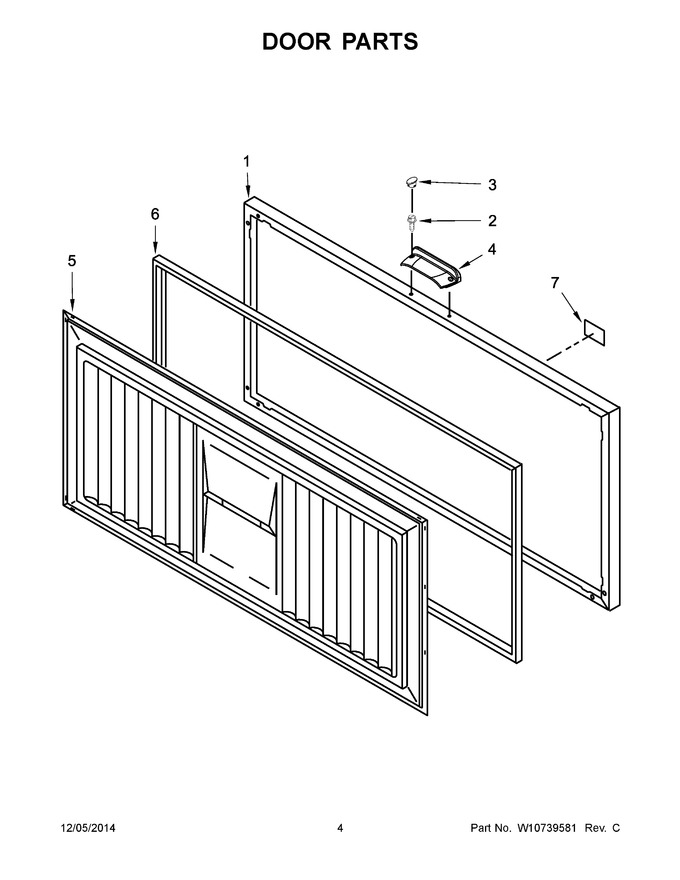

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10717196		Lid (includes Insulation)				$ 354.07
2	WPW10142283		Screw   (Replaces: 3-80732-007)				$ 10.33
3	W10712378		Cover, Screw Handle				$ 17.68
4	W10852738		Handle, Door (white)   (Replaces: W10711161)				$ 39.55
5	W10914247		Liner, Door   (Replaces: W10673929)				$ 418.80
6	WP4-35260-005		Gasket, Door (white)   (Replaces: 4-35260-005)				$ 335.59
7	W11428492		Badge, Amana   (Replaces: W10200425)				$ 83.57
