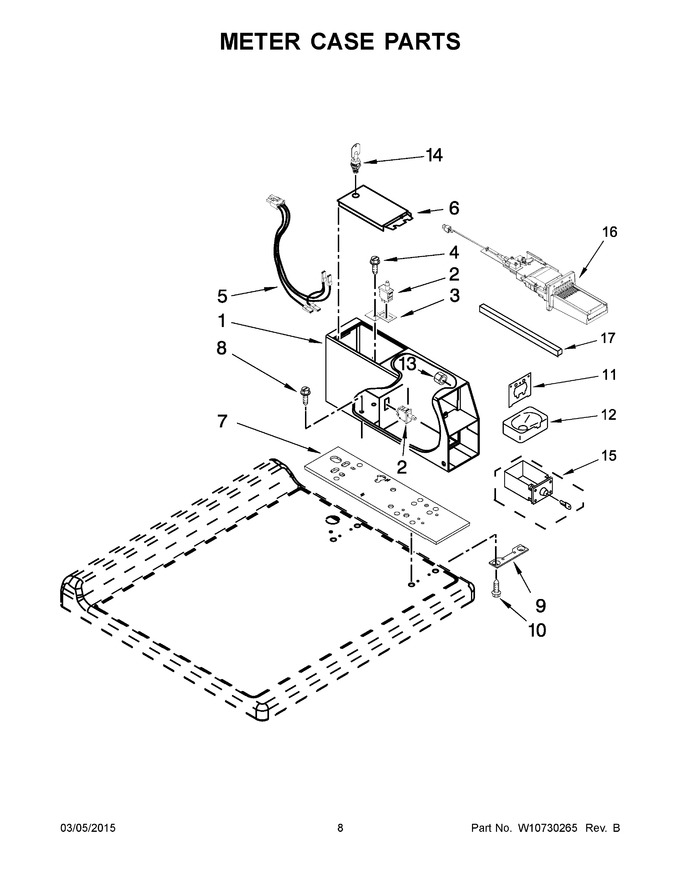

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10171132 | Meter Case (Replaces: W10171132) |
|
$ 222.59 | |||||
| 2 | WPW10131838 | Switch, Vault Service Door (Replaces: W10131838) |
|
$ 22.60 | |||||
| 3 | W11204533 | Bracket, Service Switch (Replaces: W10133508) |
|
- | |||||
| 4 | WPW10139210 | Screw (Replaces: W10139210) |
|
$ 7.23 | |||||
| 5 | W11096090 | Wire, Harness Sensor Switch (Replaces: W10211244) |
|
$ 12.06 | |||||
| 6 | W11283272 | Assembly, Service Door (Replaces: 3351136) |
|
$ 100.05 | |||||
| 7 | W10137448 | Cushion, Meter Case |
|
- | |||||
| 8 | W11715721 | Bolt (Replaces: 3349065) |
|
$ 6.73 | |||||
| 9 | 3347825 | Plate, Mounting |
|
- | |||||
| 10 | W10841059 | Screw (Replaces: 98445) |
|
- | |||||
| 11 | 279950 | Plate, Adapter (Replaces: 3954761) |
|
Immediately | $ 30.35 | ||||
| 12 | WP385421 | Funnel, Coin (Replaces: 385421) |
|
Immediately | $ 70.12 | ||||
| 13 | WP3400029 | Nut (Replaces: 3400029) |
|
Immediately | $ 7.37 | ||||
| 14 | W11315637 | Assembly, Cam & Security Lock (Replaces: 8316526) |
|
Immediately | $ 68.71 | ||||
| 15 | W11190039 | Money Box W/lock (Replaces: 8316525) |
|
Immediately | $ 177.61 | ||||
| 16 | W11312196 | Coin Slide (vertical 14) (Replaces: W10198126) |
|
$ 313.39 | |||||
| 17 | WP8576635 | Bolt, Slide Mechanism (Replaces: 8318517) |
|
Immediately | $ 71.06 | ||||
| 16A | W11126319 | Coin Slide (vertical 8) (Replaces: W10547316) |
|
Immediately | $ 303.95 |
