SELECT A DIAGRAM

01 - Cover Sheet

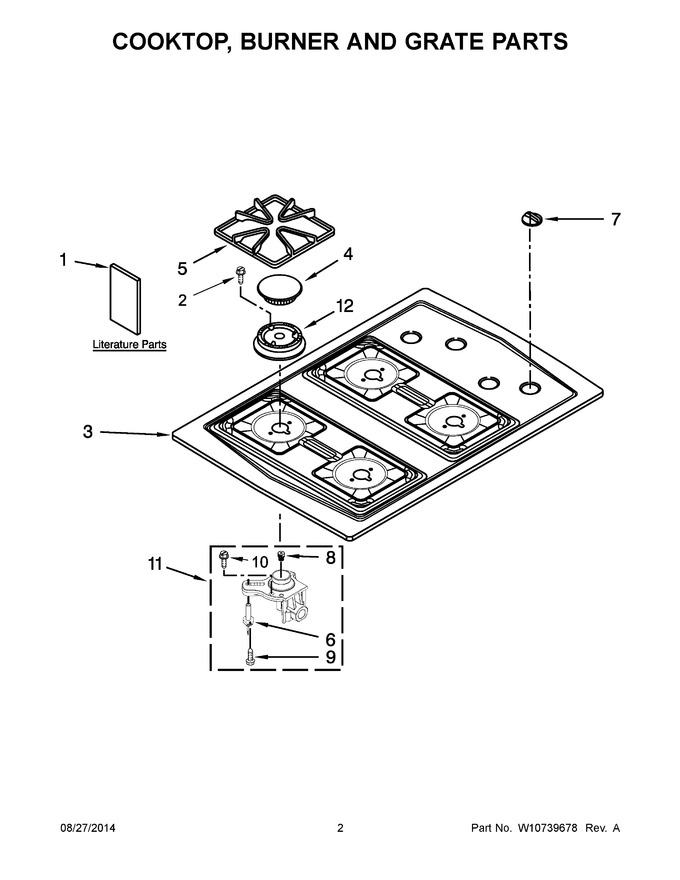

02 - Cooktop, Burner And Grate Parts


03 - Burner Box, Gas Valves And Switches


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3192098		Wiring Diagram		Appelez-nous	-
2	WP3368921		Screw   (Replaces: 3368921)			Immediately	$ 7.70
3	W11230936		Cooktop (stainless)   (Replaces: W10140177)				$ 396.01
4	WPW10218223		Cap, Burner Kit Of 4 (black)   (Replaces: W10218223)				$ 69.15
5	WPW10268483		Grate Kit Of 4 (black)   (Replaces: W10268483)				$ 126.02
6	WP9782116		Electrode   (Replaces: 9782116)			Immediately	$ 49.45
7	W10696074		Knob, Control (black)		Appelez-nous	-
8	8286473		Orifice (left Front)				$ 77.11
9	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.80
10	WP8273062		Screw   (Replaces: 8273062)			Immediately	$ 7.12
11	W10128449		Holder, Orifice (left Front)		Appelez-nous	-
12	WPW10406243		Burner Head, Auxiliary (6k) (left Rear)   (Replaces: W10406243)			Immediately	$ 35.17
11A	W10268478		Holder, Orifice (left Rear & Right Rear)		Appelez-nous	-
11B	W10268479		Holder, Orifice (right Front)		Appelez-nous	-
12A	WPW10406797		Burner Head, Rapid (12k) (left Front, Right Front & Right Rear)   (Replaces: W10406797)				$ 83.62
1A	W10723615		Instructions, Installation		Appelez-nous	-
1B	8304571		Instructions, Undercounter		Appelez-nous	-
1C	8286620		Instructions, Lp Conversion		Appelez-nous	-
1D	W10254048		Guide, Use And Care		Appelez-nous	-
1E	9762761		Tips, Safe Cooking (english)		Appelez-nous	-
1F	W10065852		Tips, Safe Cooking (french)		Appelez-nous	-
8A	WP3192523		Orifice (left Rear & Right Rear)   (Replaces: 3192523)				$ 84.20
8B	WP9753929		Orifice (right Front)   (Replaces: 9753929)				$ 76.27
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	4456626		Harness, Ignitor 15				$ 69.66
NI	4456627		Harness, Ignition 28				$ 198.59

    View Diagram in Separate Window       Print Part List
