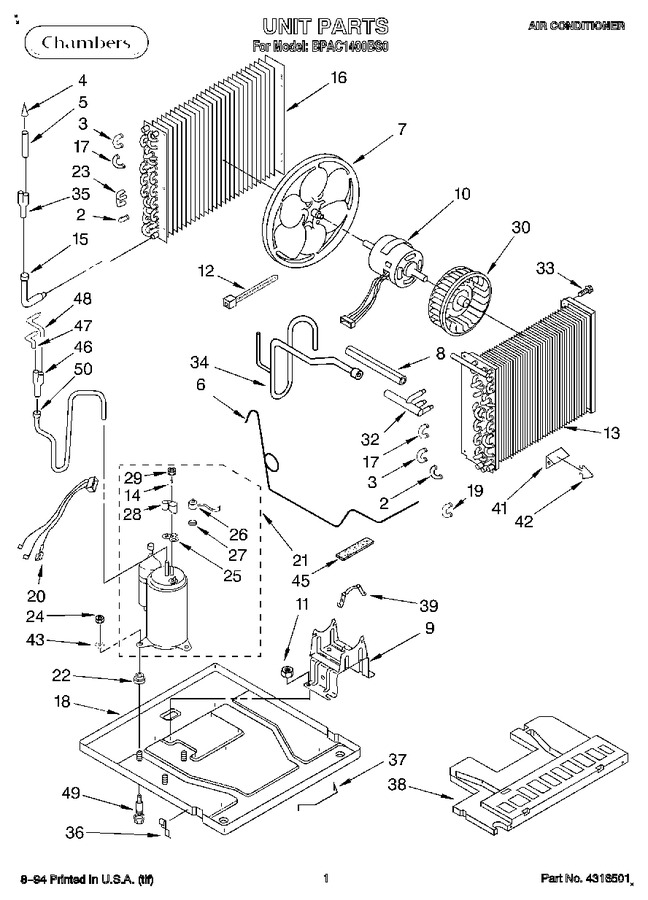

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 708532 | Bend, Return Condenser (11) Evaporator (10) |
|
- | |||||
| 3 | 708531 | Bend, Return Condenser (12) Evaporator (8) |
|
- | |||||
| 4 | 49599 | Strainer, Tube |
|
- | |||||
| 5 | 1155598 | Tube, Outlet (includes Illus. 4) |
|
- | |||||
| 6 | 1161074 | Tube, Restrictor (3) |
|
- | |||||
| 7 | 1158665 | Blade, Fan (condenser) |
|
- | |||||
| 8 | 1161045 | Seal, Suction Tube |
|
- | |||||
| 9 | 1160672 | Bracket, Fan Motor |
|
- | |||||
| 10 | 1166224 | Motor, Fan |
|
- | |||||
| 11 | WP488130 | Nut (Replaces: 1160408) |
|
$ 6.59 | |||||
| 12 | WPW10339879 | Tie, Cable (Replaces: 602851) |
|
$ 7.47 | |||||
| 13 | 1161029 | Evaporator |
|
- | |||||
| 14 | 950037 | Gasket, Nut |
|
- | |||||
| 15 | 1158703 | Tube, Connecting |
|
- | |||||
| 16 | 1161332 | Condenser |
|
- | |||||
| 17 | 1156329 | Bend, Return Condenser (1) Evaporator (3) |
|
- | |||||
| 18 | 1161523 | Base |
|
- | |||||
| 19 | 1158407 | Return Bend (2) |
|
- | |||||
| 20 | 1161054 | Harness, Wiring (compressor Service) |
|
- | |||||
| 21 | 1157102 | Compressor |
|
- | |||||
| 22 | WP950021 | Grommet (3) (Replaces: 950021) |
|
$ 78.99 | |||||
| 23 | 1158685 | Return Bend 3-way |
|
- | |||||
| 24 | 858121 | Locknut (3) |
|
- | |||||
| 25 | WP950035 | Gasket, Terminal Cover (Replaces: 950035) |
|
$ 78.01 | |||||
| 26 | 1155700 | Overload, Protector |
|
- | |||||
| 27 | 950032 | Spring, Overload |
|
- | |||||
| 28 | WP950036 | Cover, Terminal (Replaces: 950036) |
|
$ 9.83 | |||||
| 29 | WP950027 | Nut, Terminal Cover (Replaces: 950027) |
|
$ 5.20 | |||||
| 30 | 1158443 | Wheel, Blower (evaporator) |
|
- | |||||
| 32 | 1161502 | Manifold, Suction |
|
- | |||||
| 33 | WP489069 | Screw, 8 X 1/2 (Replaces: 488480) |
|
Immediately | $ 7.56 | ||||
| 34 | 1163922 | Tube, Suction |
|
- | |||||
| 35 | 947364 | Tube, Flow Divider |
|
- | |||||
| 36 | 471088 | Clamp (2) |
|
- | |||||
| 37 | 00647971 | Handle, Base (Replaces: 647971) |
|
$ 129.08 | |||||
| 38 | 1160656 | Pan, Drain |
|
- | |||||
| 39 | WPY015825 | Clip, Motor (2) (Replaces: 1157015) |
|
$ 22.65 | |||||
| 41 | 484238 | Anticipator |
|
- | |||||
| 42 | 642080 | Clip, Anticipator |
|
- | |||||
| 43 | W11236646 | Washer (3) (Replaces: 1160880) |
|
Immediately | $ 13.26 | ||||
| 45 | 1163759 | Insul. Restrictor Tube |
|
- | |||||
| 46 | 1162071 | Tube, Flow Divider |
|
- | |||||
| 47 | 1160357 | Tube, Feeder |
|
- | |||||
| 48 | 1160358 | Tube, Feeder |
|
- | |||||
| 49 | 1158668 | Bolt, Compressor |
|
- | |||||
| 50 | 1161047 | Tube, Discharge |
|
- | |||||
| LIT1157635 | Wiring Diagram |
|
- | ||||||
| LIT1166067 | Owners Manual |
|
- | ||||||
| LIT1165595 | Tech Sheet |
|
- |
