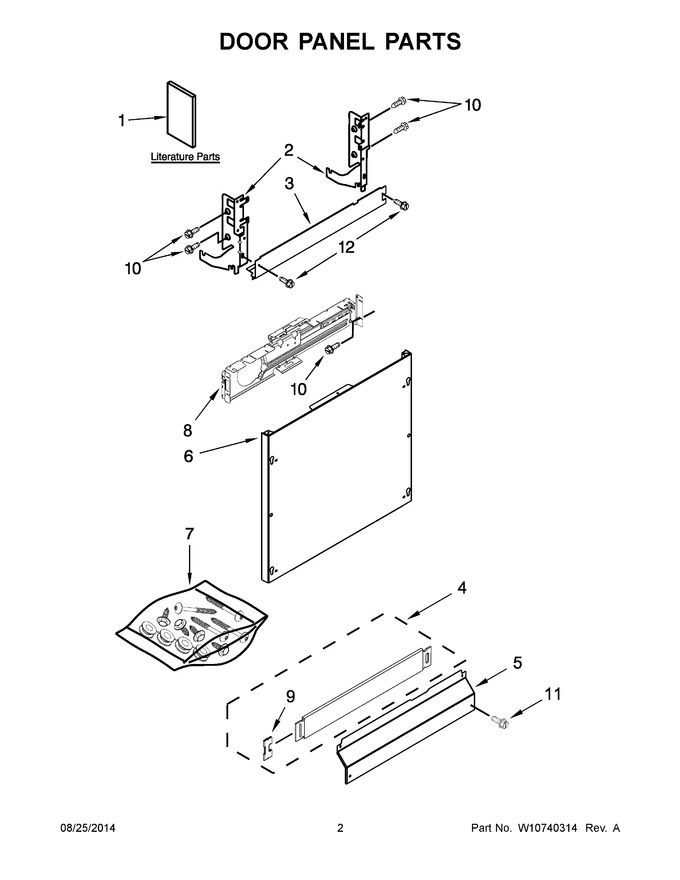

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10532757		Instructions, Installation		Appelez-nous	-
2	W11806565		Arm, Hinge (left Hand)   (Replaces: 8534854)			Immediately	$ 128.15
3	W10850371		Barrier, Vapor   (Replaces: W10321448)			Immediately	$ 29.59
4	W10871196		Toe Panel (black)   (Replaces: 8573286)				$ 156.64
5	W11763736		Access Panel (black)   (Replaces: W10195777)			Immediately	$ 38.03
6	W11113792		Panel Front (ready)   (Replaces: W10292632)			Immediately	$ 336.08
7	WPW10637074		Hardware, Custom Panel   (Replaces: W10637074)			Immediately	$ 67.55
8	W11116870		Bracket, Control   (Replaces: W10641745)				$ 80.96
9	WP8269016		Clip, Ground   (Replaces: 8269016)				$ 10.09
10	WP3400071		Screw   (Replaces: 3400071)			Immediately	$ 7.43
11	WP302868		Screw (black)   (Replaces: 302868)			Immediately	$ 7.36
12	WP489069		Screw   (Replaces: 304392)			Immediately	$ 7.56
1A	W10671815		Energy Guide		Appelez-nous	-
1B	W10671842		Use & Care Guide		Appelez-nous	-
1C	W10195005		Template, 6" Custom Panel		Appelez-nous	-
1D	W10617419		Tech Sheet, English		Appelez-nous	-
1E	W10617420		Tech Sheet, French		Appelez-nous	-
2A	W11806608		Arm, Hinge (right Hand)   (Replaces: 8534853)			Immediately	$ 128.02

    View Diagram in Separate Window       Print Part List
