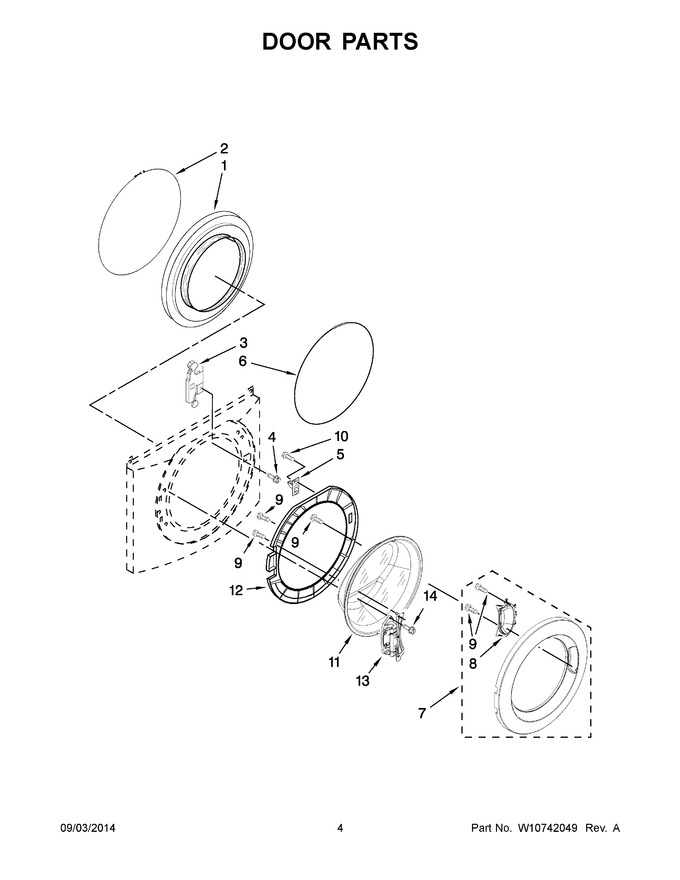

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10381562 | Bellow (Replaces: W10300559) |
|
Immediately | $ 167.23 | ||||
| 2 | WP8540108 | Clamp, Bellow To Tub (Replaces: 8540108) |
|
Immediately | $ 23.08 | ||||
| 3 | WPW10253483 | Lock, Door (Replaces: W10253483) |
|
Immediately | $ 247.73 | ||||
| 4 | WP8540725 | Screw (Replaces: 8540725) |
|
Immediately | $ 7.67 | ||||
| 5 | WP8540221 | Hook, Door (Replaces: 8540221) |
|
Immediately | $ 11.15 | ||||
| 6 | W11032829 | Clamp, Bellow To Front Panel (Replaces: W10217563) |
|
Immediately | $ 20.07 | ||||
| 7 | WPW10300867 | Frame Assembly, Door Front (Replaces: W10300867) |
|
$ 320.50 | |||||
| 8 | W10300865 | Handle, Door |
|
$ 76.12 | |||||
| 9 | WP8540282 | Screw (Replaces: 8540282) |
|
$ 10.93 | |||||
| 10 | W11230114 | Screw (Replaces: 8540513) |
|
$ 12.55 | |||||
| 11 | WPW10388315 | Glass, Door (Replaces: W10387885) |
|
$ 310.75 | |||||
| 12 | WPW10207904 | Frame, Door Back Support (Replaces: W10207904) |
|
$ 198.63 | |||||
| 13 | WPW10210893 | Hinge, Door (Replaces: W10210893) |
|
$ 206.90 | |||||
| 14 | WP489442 | Screw (Replaces: W10015090) |
|
Immediately | $ 10.34 |
