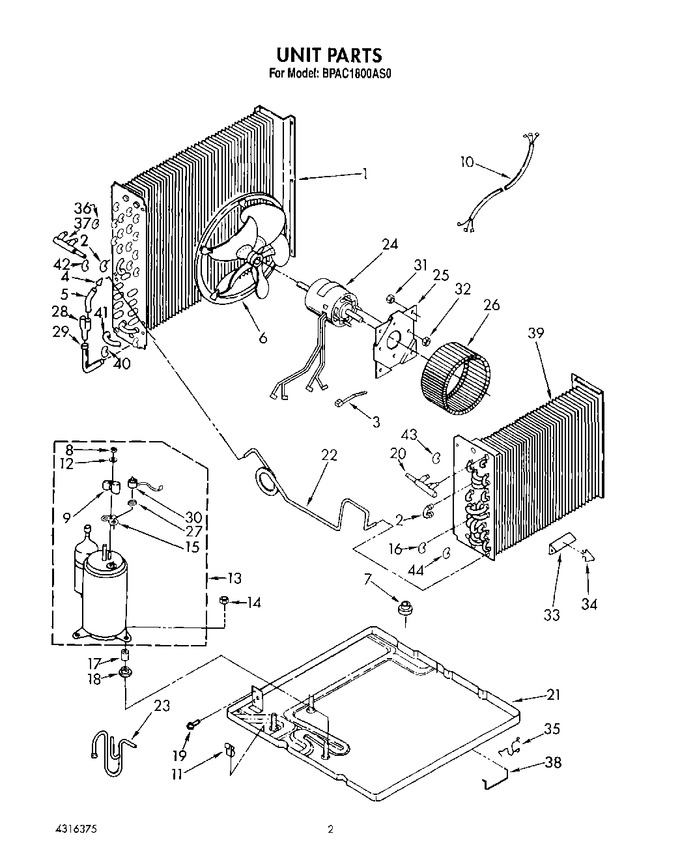

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1156327		Condenser		Appelez-nous	-
2	855199		Bend, Return (8) Evaporator (8)		Appelez-nous	-
3	WPW10339879		Tie, Cable (8)   (Replaces: 612805)				$ 7.47
4	49599		Strainer		Appelez-nous	-
5	1155598		Tube & Strainer (includes Illus. 4)		Appelez-nous	-
6	1158987		Blade, Fan		Appelez-nous	-
7	948130		Bushing, Base To Condenser		Appelez-nous	-
8	WP950027		Nut, Cover   (Replaces: 950027)				$ 5.20
9	WP950036		Cover, Terminal   (Replaces: 950036)				$ 9.83
10	484136		Harness, Wiring		Appelez-nous	-
11	642684		Clamp, Tube (2)		Appelez-nous	-
12	950037		Washer, Cover		Appelez-nous	-
13	1155501		Compressor		Appelez-nous	-
14	858121		Locknut (4)		Appelez-nous	-
15	WP950035		Gasket, Cover   (Replaces: 950035)				$ 78.01
16	997669		Bend, Return Evaporator (11)		Appelez-nous	-
17	950020		Sleeve (4)		Appelez-nous	-
18	WP950021		Grommet (4)   (Replaces: 950021)				$ 78.99
19	WP488729		Screw, S.m. No. 8 X 1/2   (Replaces: 487910)			Immediately	$ 7.45
20	1155510		Tube, Maniflod Header		Appelez-nous	-
21	950364		Base		Appelez-nous	-
22	1156440		Tube, Restrictor (length 46.0``)				$ 6,949.23
23	1155593		Tube, Suction		Appelez-nous	-
24	952072		Motor, Fan		Appelez-nous	-
25	998024		Plate, Mounting		Appelez-nous	-
26	1158443		Wheel, Blower		Appelez-nous	-
27	950032		Spring, Overload		Appelez-nous	-
28	947364		Tube, Flow Divider		Appelez-nous	-
29	1155580		Tube, 90~ Connect		Appelez-nous	-
30	WP1161170		Overload   (Replaces: 1155605)				$ 84.72
31	858122		Locknut		Appelez-nous	-
32	WP488130		Nut, 8-32   (Replaces: 488130)				$ 6.59
33	472046		Anticipator		Appelez-nous	-
34	472047		Clip		Appelez-nous	-
35	852272		Clip, Front Mtg (2)		Appelez-nous	-
36	708532		Bend, Retrun Condenser (12)		Appelez-nous	-
37	1156330		Tube, Maniflod		Appelez-nous	-
38	00647971		Handle, Base   (Replaces: 647971)				$ 129.08
39	1156493		Evaporator		Appelez-nous	-
40	708531		Bend, Return Condenser (7)		Appelez-nous	-
41	1156107		Bend, Return		Appelez-nous	-
42	1156329		Bend, Return Condenser (2) Evaporator (1)		Appelez-nous	-
43	1156529		Return Bend		Appelez-nous	-
44	1156531		Tube, Riser Evaporator (1)		Appelez-nous	-
	LIT1159930		Guide, Use And Care		Appelez-nous	-
	LIT1156807		Tech Sheet		Appelez-nous	-
	LIT1161909		Instructions, Installation		Appelez-nous	-
	LIT4316375		List, Repair Parts		Appelez-nous	-
	LIT1156789		Wiring Diagram		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
