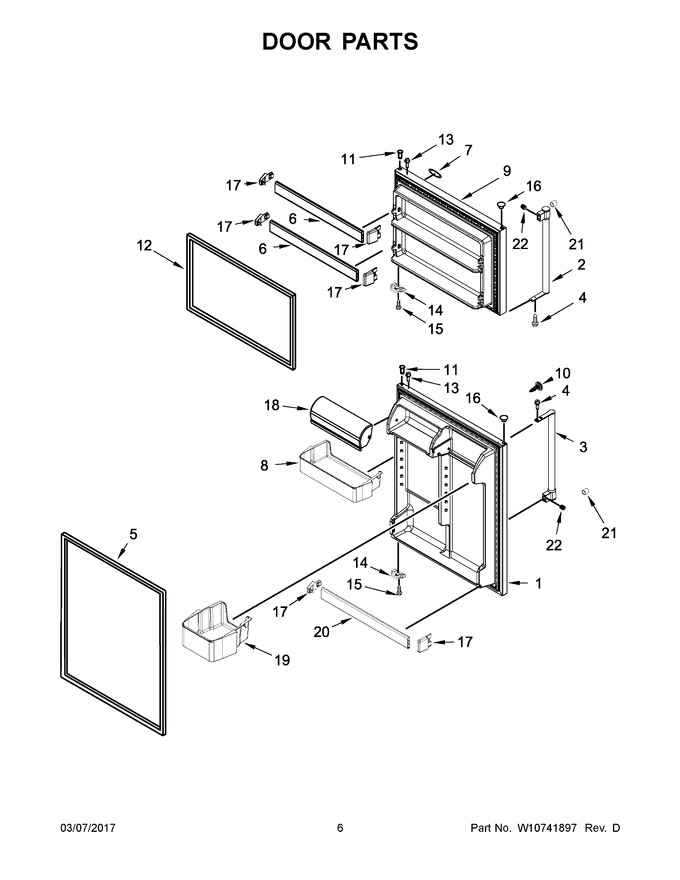

04 - Door Parts
05 - Unit Parts
06 - Shelf Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LW10651924 | Refrigerator Door (includes Illustration 5) (white) (Replaces: W10651924) |
|
$ 614.32 | |||||
| 2 | W10647957 | Handle, Freezer (neptune Frost) |
|
$ 277.63 | |||||
| 3 | W10647954 | Handle, Refrigerator (neptune Frost) |
|
$ 268.97 | |||||
| 4 | W10861883 | Screw (Replaces: 3400018) |
|
Immediately | $ 4.45 | ||||
| 5 | W10860480 | Door Gasket, Magnetic (white) (Replaces: W10692652) |
|
$ 278.77 | |||||
| 6 | W10592150 | Trim, Door |
|
$ 113.36 | |||||
| 7 | WPW10612925 | Badge (Replaces: W10612925) |
|
Immediately | $ 38.12 | ||||
| 8 | WPW10308868 | Bin, Large Door (Replaces: W10308868) |
|
Immediately | $ 80.18 | ||||
| 9 | W10651927 | Freezer Door (includes Illustration 12) (white) |
|
- | |||||
| 10 | W10830984 | Hole Plug (white) (Replaces: W10663736) |
|
$ 7.54 | |||||
| 11 | W11189115 | Thimble Top (Replaces: W10334042) |
|
$ 11.44 | |||||
| 12 | W10741118 | Door Gasket, Magnetic (white) (Replaces: W10692653) |
|
$ 298.83 | |||||
| 13 | WP8281206 | Screw (Replaces: 8281206) |
|
$ 7.53 | |||||
| 14 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 12.03 | ||||
| 15 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 7.43 | ||||
| 16 | WP2212648 | Hole Plug, Hinge Sleeve (white) (Replaces: 2212648) |
|
Immediately | $ 7.37 | ||||
| 17 | W10838039 | Cap, Trim End (Replaces: W10592153) |
|
Immediately | $ 50.11 | ||||
| 18 | W11675283 | Compartment, Door (Replaces: W10601425) |
|
$ 30.91 | |||||
| 19 | WPW10308869 | Bin, Medium (Replaces: W10308869) |
|
Immediately | $ 69.93 | ||||
| 20 | W11126062 | Trim, Door (Replaces: W10592148) |
|
$ 114.61 | |||||
| 21 | WPW10511911 | Bushing, Handle (Replaces: W10511911) |
|
$ 14.50 | |||||
| 22 | W11366418 | Set Screw (silver) (Replaces: W10010140) |
|
Immediately | $ 16.59 | ||||
| 10A | W10830983 | Hole Plug (black) (Replaces: W10663737) |
|
$ 17.59 | |||||
| 10B | W10830982 | Hole Plug (grey) (Replaces: W10663739) |
|
Immediately | $ 17.59 | ||||
| 12A | 2177310 | Door Gasket, Magnetic (black) (Replaces: 2214969) |
|
$ 301.78 | |||||
| 12B | W10249196 | Door Gasket, Magnetic (grey) (Replaces: W10171479) |
|
Immediately | $ 251.19 | ||||
| 16A | WP2212651 | Hole Plug, Hinge Sleeve (black) (Replaces: 2212651) |
|
Immediately | $ 21.79 | ||||
| 16B | WP2254517 | Hole Plug, Hinge Sleeve (grey) (Replaces: 2254517) |
|
Immediately | $ 21.91 | ||||
| 1A | W10651925 | Refrigerator Door (includes Illustration 5) (black) |
|
- | |||||
| 1B | LW10648584 | Refrigerator Door (includes Illustration 5) (stainless) (Replaces: W10651926) |
|
$ 863.73 | |||||
| 5A | 2177311 | Door Gasket, Magnetic (black) (Replaces: 2202882) |
|
$ 297.86 | |||||
| 5B | W10249195 | Door Gasket, Magnetic (grey) (Replaces: W10171475) |
|
$ 302.22 | |||||
| 9A | LW10651928 | Freezer Door (includes Illustration 12) (black) (Replaces: W10651928) |
|
$ 572.31 | |||||
| 9B | LW10648583 | Freezer Door (includes Illustration 12) (stainless) (Replaces: W10651929) |
|
$ 845.09 |
