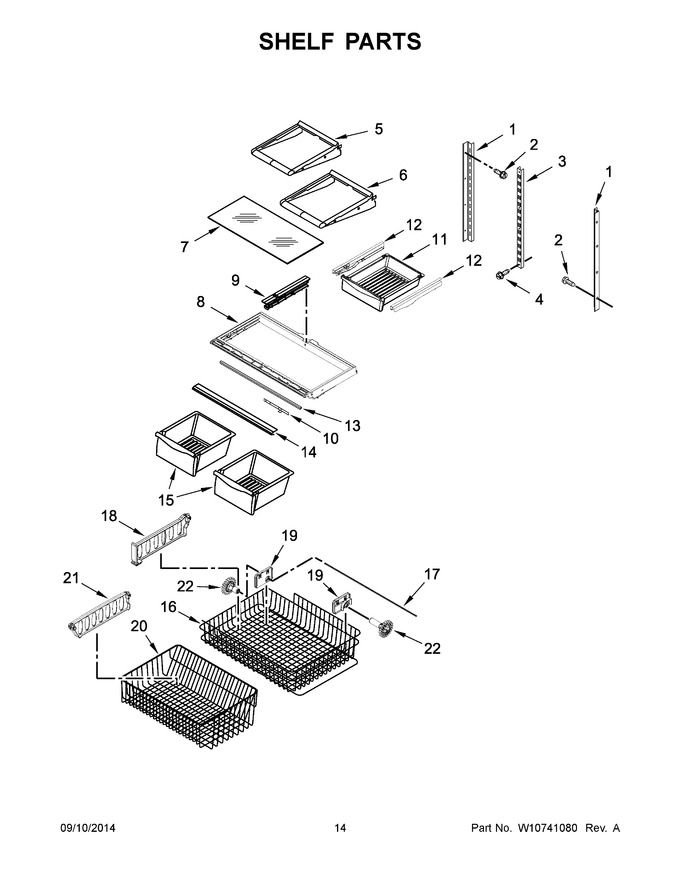

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10251970 | Ladder, Side |
|
$ 26.90 | |||||
| 2 | 67006425 | Screw (Replaces: 12990513) |
|
Immediately | $ 6.57 | ||||
| 3 | W10273463 | Ladder, Center |
|
$ 26.65 | |||||
| 4 | W10215666 | Screw |
|
$ 8.58 | |||||
| 5 | W11402522 | Shelf, Stationary (Replaces: 12463608) |
|
$ 195.17 | |||||
| 6 | W11402522 | Shelf, Stationary (Replaces: 12463608V) |
|
$ 195.17 | |||||
| 7 | WP67006877 | Glass, Crisper Cover (Replaces: 12204823N) |
|
Immediately | $ 198.43 | ||||
| 8 | WPW10671240 | Frame, Crisper (Replaces: W10671240) |
|
Immediately | $ 151.88 | ||||
| 9 | WPW10671238 | Rail, Center Crisper (Replaces: W10671238N) |
|
Immediately | $ 106.61 | ||||
| 10 | WP67005864 | Slide, Humidity Control (Replaces: 12530805SP) |
|
Immediately | $ 7.38 | ||||
| 11 | WP67001308 | Pan, Deli (Replaces: 12656504V) |
|
Immediately | $ 146.31 | ||||
| 12 | WP67001054 | Glide, Deli (left Hand) (Replaces: 12656601V) |
|
Immediately | $ 7.94 | ||||
| 13 | WP12227302WD | Brace, Crisper Cover (Replaces: 12227302WD) |
|
$ 100.44 | |||||
| 14 | WPW10231481 | Trim, Crisper (Replaces: W10231481) |
|
$ 105.68 | |||||
| 15 | W10833528 | Pan, Crisper (Replaces: 12531305) |
|
Immediately | $ 140.67 | ||||
| 16 | W10348236 | Basket, Freezer (upper) |
|
$ 97.31 | |||||
| 17 | 12812906WD | Shaft, Rack |
|
$ 42.54 | |||||
| 18 | W10241046 | Divider, Basket (upper) |
|
Immediately | $ 26.27 | ||||
| 19 | W10348259 | Mount (left Hand) |
|
$ 80.88 | |||||
| 20 | W10503182 | Basket, Freezer (lower) |
|
$ 217.77 | |||||
| 21 | W10847995 | Divider, Basket (lower) (Replaces: W10146440) |
|
$ 83.23 | |||||
| 22 | WPW10474716 | Gear, Spur (left Hand) (Replaces: W10474716) |
|
Immediately | $ 29.18 | ||||
| 12A | WP67001053 | Glide, Deli (right Hand) (Replaces: 12656602V) |
|
Immediately | $ 8.32 | ||||
| 19A | W10348260 | Mount (right Hand) |
|
$ 80.91 | |||||
| 22A | WPW10474715 | Gear, Spur (right Hand) (Replaces: W10474715) |
|
Immediately | $ 29.48 |
