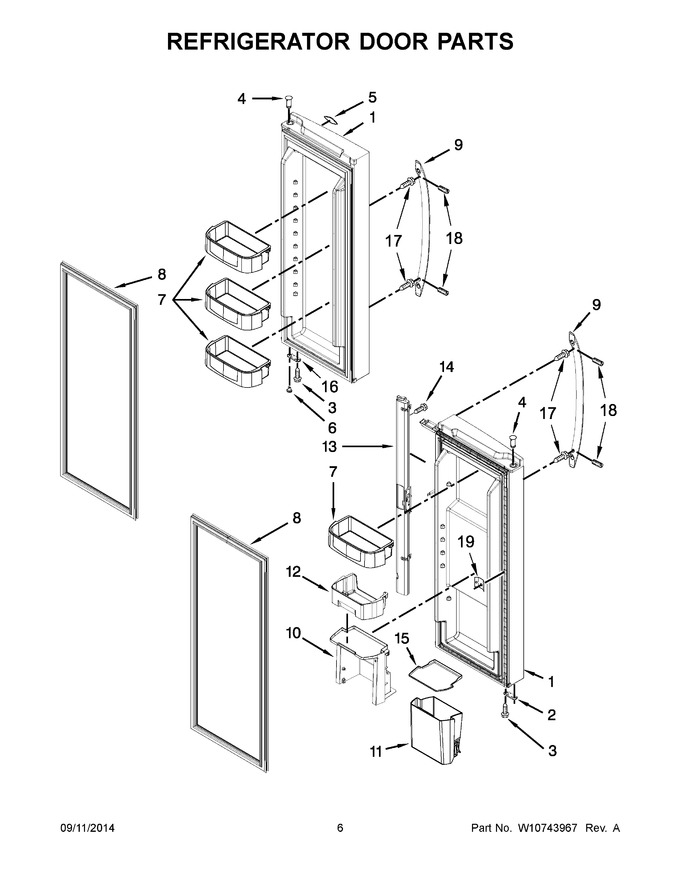

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LW10393587 | Refrigerator Door (includes #8) (left Hand (white)) (Replaces: W10393587) |
|
$ 542.72 | |||||
| 2 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 12.03 | ||||
| 3 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 7.43 | ||||
| 4 | W11544568 | Thimble, Top (white) (Replaces: W10366270) |
|
Immediately | $ 12.56 | ||||
| 5 | WPW10243393 | Nameplate (white) (Replaces: W10243393) |
|
$ 62.98 | |||||
| 6 | WPW10470155 | Closure, Door (Replaces: W10470155) |
|
Immediately | $ 6.80 | ||||
| 7 | WPW10308869 | Bin, Medium (Replaces: W10308869) |
|
Immediately | $ 69.93 | ||||
| 8 | W10460612 | Gasket, Refrigerator Door (beige) (Replaces: W10353189) |
|
Immediately | $ 281.09 | ||||
| 9 | WPW10314515 | Handle Assembly (white) (Replaces: W10314515) |
|
$ 214.64 | |||||
| 10 | WPW10317224 | Compartment, Utility (Replaces: W10317224) |
|
$ 93.42 | |||||
| 11 | WPW10411219 | Bin, Fresh & Ready (Replaces: W10411219) |
|
Immediately | $ 86.35 | ||||
| 12 | WPW10326335 | Bin, Shallow (Replaces: W10326335) |
|
Immediately | $ 58.31 | ||||
| 13 | WPW10624451 | Flipper Mullion Assembly (white) (Replaces: W10624451) |
|
Immediately | $ 119.34 | ||||
| 14 | W10854958 | Screw (Replaces: 12990302) |
|
$ 7.11 | |||||
| 15 | WPW10317192 | Bin, Door Mat (Replaces: W10317192) |
|
$ 78.59 | |||||
| 16 | WPW10397055 | Bracket, Door Stop (Replaces: W10397055) |
|
Immediately | $ 33.25 | ||||
| 17 | WPW10170540 | Screw (Replaces: W10170540) |
|
Immediately | $ 8.69 | ||||
| 18 | WP3400203 | Screw, Set (Replaces: W10287054) |
|
Immediately | $ 4.54 | ||||
| 19 | WP939101 | Screw Anchor (Replaces: 939101) |
|
$ 7.09 | |||||
| 13A | W11692845 | Flipper Mullion Assembly (black) (Replaces: W10624448) |
|
$ 217.49 | |||||
| 13B | WPW10624450 | Flipper Mullion Assembly (grey) (Replaces: W10624450) |
|
Immediately | $ 214.00 | ||||
| 1A | LW10353181 | Refrigerator Door (includes #8) (right Hand (white)) (Replaces: W10353181) |
|
$ 741.21 | |||||
| 1B | LW10413522 | Refrigerator Door (includes #8) (left Hand (black)) (Replaces: W10413522) |
|
$ 430.46 | |||||
| 1C | LW10413518 | Refrigerator Door (includes #8) (right Hand (black)) (Replaces: W10413518) |
|
$ 573.44 | |||||
| 1D | LW10413524 | Refrigerator Door (includes #8) (left Hand (stainless)) (Replaces: W10413524) |
|
$ 741.25 | |||||
| 1E | LW10413519 | Refrigerator Door (includes #8) (right Hand (stainless)) (Replaces: W10413519) |
|
$ 744.79 | |||||
| 4A | W11189115 | Thimble, Top (black) (Replaces: W10334042) |
|
$ 11.44 | |||||
| 5A | WPW10243392 | Nameplate (black) (Replaces: W10243392) |
|
$ 66.33 | |||||
| 5B | WPW10243391 | Nameplate (grey) (Replaces: W10243391) |
|
$ 52.48 | |||||
| 8A | W10460610 | Gasket, Refrigerator Door (black) (Replaces: W10413465) |
|
$ 251.58 | |||||
| 8B | WPW10460580 | Gasket, Refrigerator Door (grey) (Replaces: W10413468) |
|
Immediately | $ 241.88 | ||||
| 9A | W10314516 | Handle Assembly (black) |
|
- | |||||
| 9B | WPW10314517K | Handle Assembly (stainless) (Replaces: W10314517) |
|
$ 219.03 |
