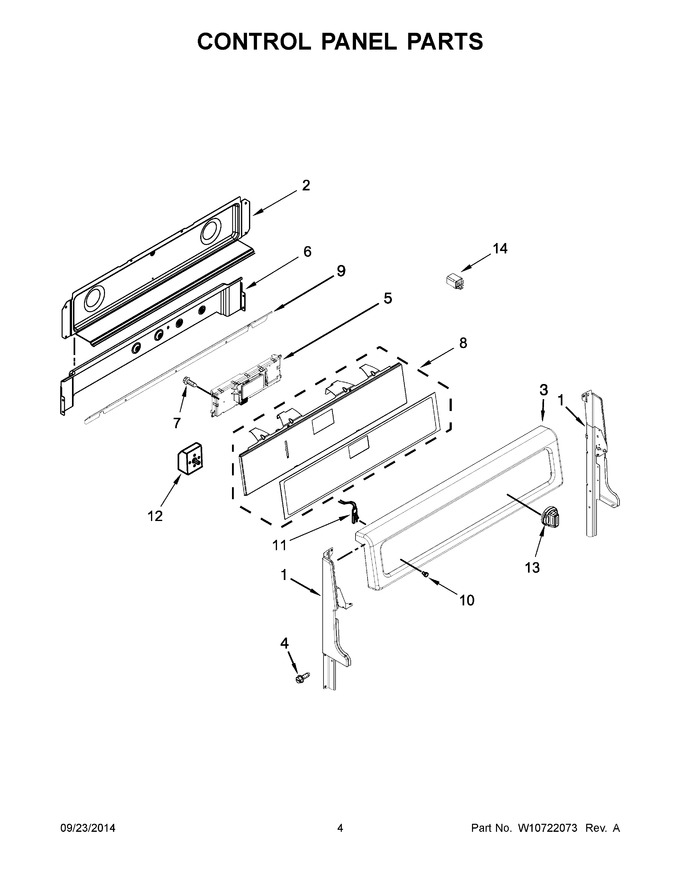

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10319109 | Support, Backguard (black (left)) |
|
$ 83.56 | |||||
| 2 | W10296773 | Cover, Backguard |
|
$ 175.07 | |||||
| 3 | WPW10318550 | Console (stainless) (Replaces: W10318550) |
|
$ 245.91 | |||||
| 4 | WP98008545 | Screw (black) (Replaces: 7101P633-60) |
|
$ 16.74 | |||||
| 5 | WPW10708787 | Control (mrc2) (Replaces: W10708787) |
|
$ 271.23 | |||||
| 6 | W10278697 | Shield, Vent |
|
Immediately | $ 165.00 | ||||
| 7 | WP74003976 | Screw (Replaces: 7101P500-60) |
|
$ 6.80 | |||||
| 8 | W10755953 | Assembly, Overlay (stainless) (Replaces: W10675933) |
|
$ 384.26 | |||||
| 9 | WPW10299338 | Shield, Wire Cover (Replaces: W10299338) |
|
$ 86.94 | |||||
| 10 | WP3196068 | Lens, Indicator (Replaces: 3196068) |
|
Immediately | $ 5.63 | ||||
| 11 | WP74004153 | Light, Indicator (Replaces: 7407P136-60) |
|
Immediately | $ 8.02 | ||||
| 12 | WPW10441696 | Switch, Infinite (left Front) (Replaces: W10441696) |
|
Immediately | $ 119.45 | ||||
| 13 | W10294791 | Knobs (stainless) |
|
$ 40.80 | |||||
| 14 | W10326400 | Relay (12v) |
|
$ 70.90 | |||||
| 12A | WPW10295048 | Switch, Infinite (left Rear) (Replaces: W10295048) |
|
Immediately | $ 143.96 | ||||
| 12B | WP7403P239-60 | Switch, Infinite (right Front) (Replaces: 7403P372-60) |
|
Immediately | $ 35.10 | ||||
| 12C | WP7403P238-60 | Switch, Infinite (right Rear) (Replaces: 7403P373-60) |
|
Immediately | $ 67.30 | ||||
| 1A | W10319111 | Support, Backguard (black (right)) |
|
$ 43.80 |
