SELECT A DIAGRAM

01 - Cover Sheet


02 - Cooktop Parts


03 - Chassis Parts


04 - Manifold Parts


05 - Door Parts


06 - Drawer Parts


07 - Optional Parts (not Included)

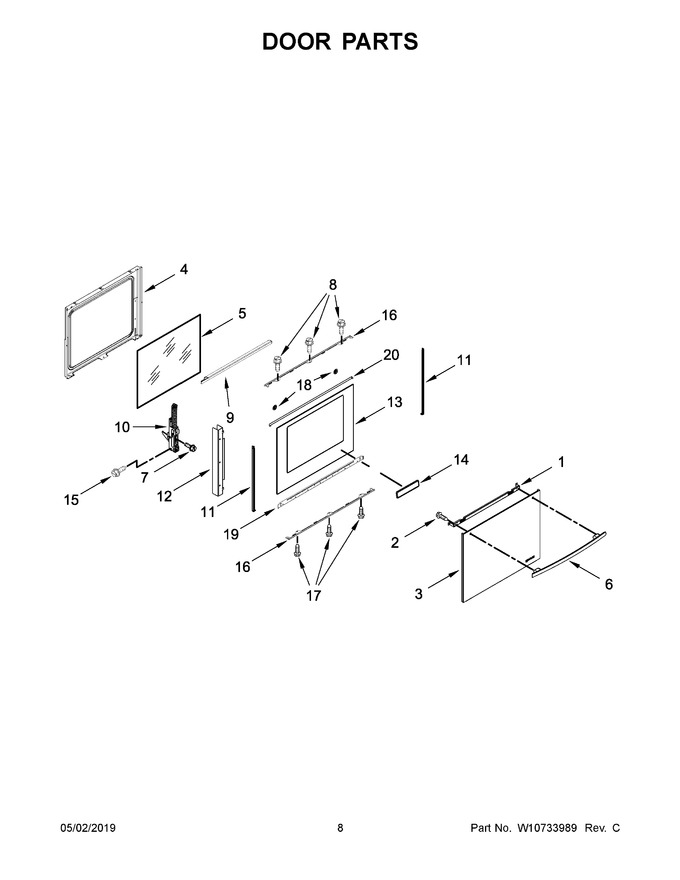

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10541911		Bracket, Glass Upper Handle				$ 35.93
2	WP8533988		Screw   (Replaces: 8533988)			Immediately	$ 7.90
3	W10541871		Assembly, Outer Door (stainless)		Appelez-nous	-
4	W10541882		Liner, Door				$ 177.73
5	WPW10541888		Glass, Inner   (Replaces: W10541888)				$ 346.19
6	W10550998		Assembly, Door Handle (black)		Appelez-nous	-
7	W10777162		Screw   (Replaces: W10031780)			Immediately	$ 7.43
8	W11245710		Screw   (Replaces: 9780274)			Immediately	$ 13.28
9	W11251351		Scoop, Door (black)   (Replaces: W10613791)			Immediately	$ 125.70
10	W11104737		Hinge, Slow Close (black Models)   (Replaces: W10541887)				$ 102.63
11	W10634236		Trim, Door Side (black)		Appelez-nous	-
12	W10541883		Hinge, Support Rail				$ 40.41
13	WPW10541892		Assembly, Outer Door (black)   (Replaces: W10541892)				$ 371.45
14	WPW10214168		Badge (black)   (Replaces: W10190724)				$ 77.36
15	WP355214		Screw   (Replaces: W10327235)			Immediately	$ 7.92
16	W10541885		Support, Glass				$ 36.93
17	WPW10031790		Screw   (Replaces: W10031790)			Immediately	$ 7.87
18	W11676355		Washer, Door   (Replaces: W10319024)				$ 13.33
19	W10541912		Bracket, Lower Glass		Appelez-nous	-
20	W10634234		Door, Trim Top		Appelez-nous	-
10A	W10541886		Hinge, Slow Close (stainless Models)				$ 187.29
14A	WPW10214168		Badge (stainless)   (Replaces: W10214168)				$ 77.36
6A	W11195001		Assembly, Door Handle (stainless)   (Replaces: W10551013)				$ 206.51
9A	W11025120		Scoop, Door (stainless)   (Replaces: W10551024)				$ 110.71
