SELECT A DIAGRAM

01 - Cover Sheet

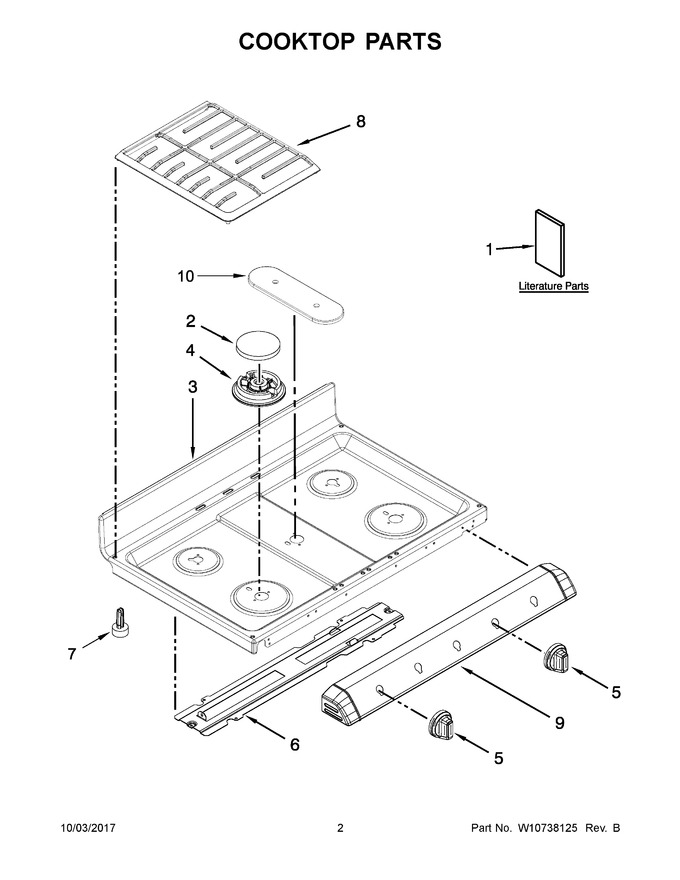

02 - Cooktop Parts


03 - Control Panel Parts


04 - Manifold Parts


05 - Chassis Parts


06 - Upper Door Parts


07 - Lower Door Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10696639		Guide, Use And Care		Appelez-nous	-
2	WPW10299233		Kit, Burner Cap (black)   (Replaces: W10299233)				$ 189.89
3	W10336330		Cooktop (black)   (Replaces: W10260169)				$ 378.06
4	WPW10406243		Head, Burner (6k) (left Rear)   (Replaces: W10406243)			Immediately	$ 35.17
5	W10696522		Knob, Control (stainless)				$ 128.94
6	W10518258		Bracket, Cooktop Support		Appelez-nous	-
7	W11189172		Glide, Main Top   (Replaces: 8016P022-60)			Immediately	$ 15.85
8	WPW10338214		Set, Grate (black)   (Replaces: W10338214)				$ 311.33
9	W11236290		Panel, Manifold (stainless)   (Replaces: W10696087)		Appelez-nous	-
10	WPW10333445		Base, Burner (fish Burner Only)   (Replaces: W10333445)				$ 99.05
1A	W10575961		Instructions, Installation		Appelez-nous	-
1B	W10575966		Tech Sheet		Appelez-nous	-
1C	9762761		Tips, Safe Cooking (english)		Appelez-nous	-
1D	W10065852		Tips, Safe Cooking (french)		Appelez-nous	-
4A	WPW10406878		Head, Burner (17.5k) (left Front)   (Replaces: W10406878)				$ 96.73
4B	WPW10406797		Head, Burner (12.5k) (right Front & Right Rear)   (Replaces: W10406797)				$ 83.62
4C	WPW10336094		Head, Burner (center)   (Replaces: W10336094)				$ 205.03

    View Diagram in Separate Window       Print Part List
