01 - Cover Sheet
02 - Top And Console Parts
03 - Cabinet Parts
04 - Bulkhead Parts
05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

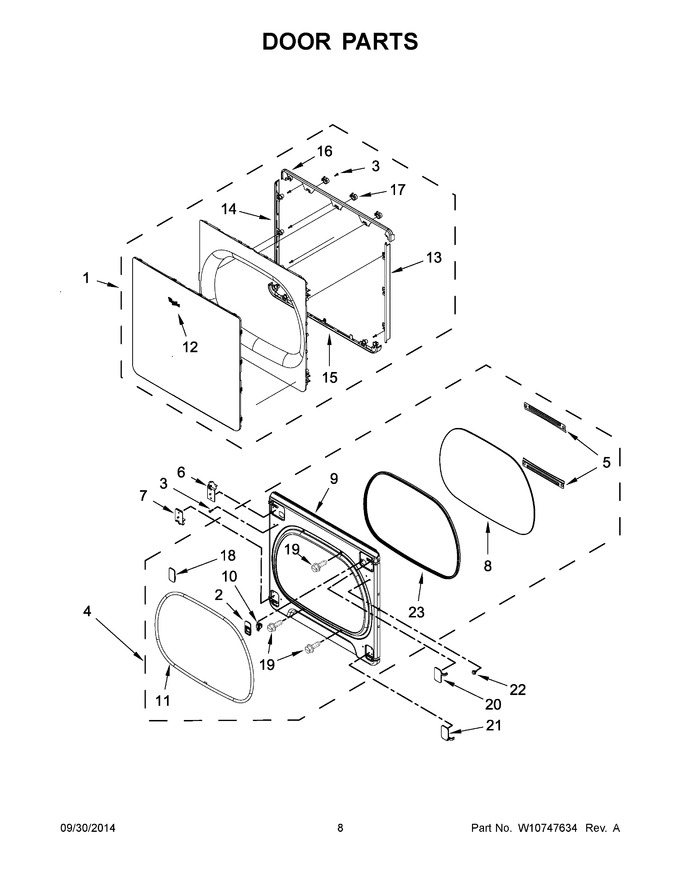

| 1 | W10614976 | Door, Outer (black) |
|
$ 351.33 | |||||
| 2 | W11103932 | Bezel, Door Catch (white) (Replaces: W10631401) |
|
$ 25.46 | |||||
| 3 | W10850046 | Screw (Replaces: 9742177) |
|
Immediately | $ 6.80 | ||||
| 4 | W10916628 | Assembly, Inner Door (white) (Replaces: W10614983) |
|
$ 523.06 | |||||
| 5 | W10621182 | Retainer, Window |
|
- | |||||
| 6 | W10623818 | Hinge Assembly-blade, Door (right) (white) |
|
- | |||||
| 7 | W10623819 | Hinge Assembly-blade, Door (left) (white) |
|
$ 254.05 | |||||
| 8 | W10608740 | Window, Door |
|
- | |||||
| 9 | W10631394 | Door, Inner (white) |
|
- | |||||
| 10 | W11429587 | Assembly, Door Catch (Replaces: W10696503) |
|
Immediately | $ 23.90 | ||||
| 11 | W10763835 | Seal, Door (Replaces: W10614993) |
|
Immediately | $ 116.81 | ||||
| 12 | WPW10393264 | Badge (grey) (Replaces: W10393264) |
|
$ 60.97 | |||||
| 13 | W10614968 | Trim, Hinge Side |
|
- | |||||
| 14 | W10614970 | Trim, Side |
|
$ 20.24 | |||||
| 15 | W10614972 | Trim, Bottom |
|
- | |||||
| 16 | W10614974 | Trim, Top |
|
- | |||||
| 17 | W10614985 | Trim, Top Cap |
|
- | |||||
| 18 | W10631410 | Catch, Door Cover (white) |
|
- | |||||
| 19 | WP488627 | Screw (Replaces: 342055) |
|
$ 7.30 | |||||
| 20 | W10631396 | Hinge Cover, Bottom (white) |
|
- | |||||
| 21 | W10631395 | Hinge Cover, Top (white) |
|
- | |||||
| 22 | 8572266 | Bumper, Door |
|
Immediately | $ 10.56 | ||||
| 23 | W10608741 | Seal, Window |
|
- |
