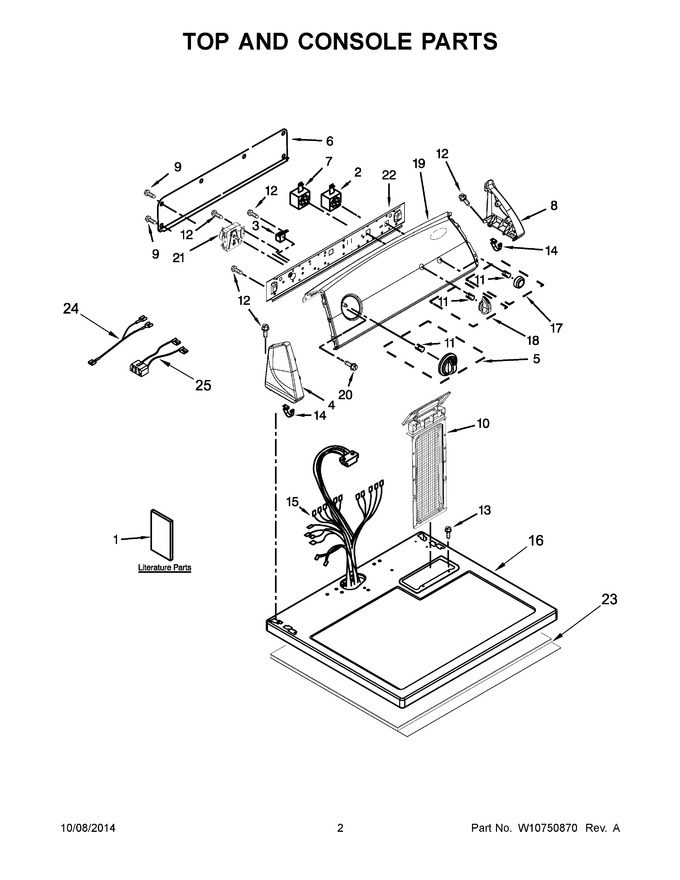

02 - Top And Console Parts


03 - Cabinet Parts


04 - Bulkhead Parts


05 - W10336852 Burner Assembly Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10329763		Instructions, Installation		Appelez-nous	-
2	WP3977456		Switch, Push-to-start   (Replaces: 3977456)			Immediately	$ 25.18
3	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 120.65
4	WP8565957		End Cap (left) (white)   (Replaces: 8566035)				$ 58.28
5	W10034750		Assembly, Timer Knob (white/metallic)				$ 28.27
6	W10103406		Panel, Rear (console)				$ 121.78
7	3405152		Switch, Rotary				$ 117.96
8	WP8565954		End Cap (right) (white)   (Replaces: 8566032)				$ 59.26
9	WP693995		Screw   (Replaces: 693995)			Immediately	$ 6.80
10	W11778253		Screen, Lint (white)   (Replaces: W10717210)			Immediately	$ 49.17
11	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 7.38
12	WP90767		Screw   (Replaces: 3348629)			Immediately	$ 7.43
13	W11693756		Screw   (Replaces: 688983)			Immediately	$ 13.28
14	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 15.66
15	W10111050		Harness, Wiring		Appelez-nous	-
16	WP8563663		Top (white)   (Replaces: 8559800)			Immediately	$ 314.33
17	W10034770		Assembly, Push-to-start Knob (white/metallic)		Appelez-nous	-
18	W10034380		Assembly, Control Knob (white/metallic)				$ 25.06
19	W10552367		Assembly, Control Panel (white)		Appelez-nous	-
20	WP3390631		Screw   (Replaces: 3390631)				$ 7.43
21	W11043385		Timer Assembly (60 Hz.)   (Replaces: W10185987)				$ 331.52
22	8566052		Bracket, Control		Appelez-nous	-
23	W10123956		Panel, Dampening		Appelez-nous	-
1A	W10566781		Use And Care Guide		Appelez-nous	-
1B	W10185989		Wiring Diagram		Appelez-nous	-
