01 - Cover Sheet

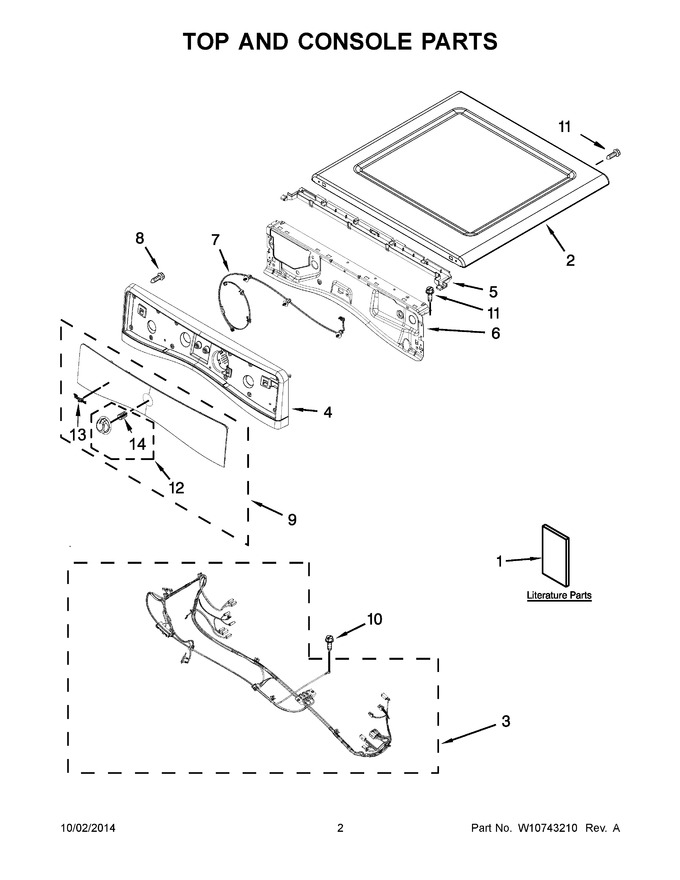

02 - Top And Console Parts


03 - Cabinet Parts


04 - Bulkhead Parts


05 - Door Parts


06 - W10307147 Burner Assembly Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10713777		Use And Care Guide		Appelez-nous	-
2	W10628221		Top (black)				$ 243.03
3	W10651120		Harness, Main Wiring		Appelez-nous	-
4	W10433196		Assembly, Control Panel (black)				$ 325.10
5	WPW10653575		Water Channel   (Replaces: W10636058)				$ 81.85
6	W11480682		Bracket, Console   (Replaces: W10208198)				$ 73.09
7	W10837344		Cable, User Interface   (Replaces: W10540653)				$ 30.25
8	W10853898		Screw   (Replaces: W10219342)				$ 7.36
9	W10750362		Assembly, Overlay (black)   (Replaces: W10433154)		Appelez-nous	-
10	WP693995		Screw   (Replaces: 693995)			Immediately	$ 6.80
11	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 7.45
12	WPW10631127		Assembly, Timer Knob (grey)   (Replaces: W10631127)				$ 37.76
13	WPW10393264		Badge (grey)   (Replaces: W10393264)				$ 60.97
14	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 7.38
1A	W10606148		Tech Sheet		Appelez-nous	-
1B	W10714611		Installation Instructions		Appelez-nous	-
1C	W10504395		Wiring Diagram		Appelez-nous	-
