SELECT A DIAGRAM

01 - Cover Sheet

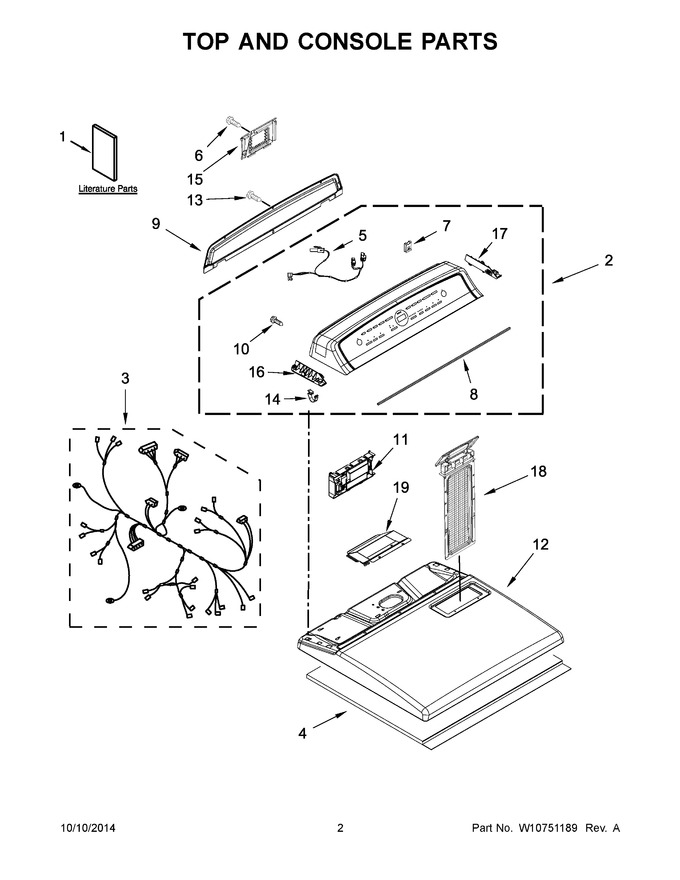

02 - Top And Console Parts


03 - Cabinet Parts


04 - Bulkhead Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10680136		Installation Instructions		Appelez-nous	-
2	W10662517		Assembly, Console (white)				$ 292.02
3	W10631057		Harness, Wiring				$ 112.03
4	W10123956		Panel, Dampening		Appelez-nous	-
5	W10634454		Harness, User Interface		Appelez-nous	-
6	WP90767		Screw   (Replaces: 3348629)			Immediately	$ 7.43
7	W11213336		Nut, "u   (Replaces: W10298336)				$ 7.32
8	W11721376		Seal, Console   (Replaces: W10726632)		Appelez-nous	-
9	W10775189		Panel, Rear Console   (Replaces: W10618860)				$ 351.12
10	W10853898		Screw   (Replaces: W10219342)				$ 7.36
11	W10448068		Control, Electronic		Appelez-nous	-
12	W11222514		Top (white)   (Replaces: W10613389)			Immediately	$ 244.23
13	W11311945		Screw   (Replaces: 12990204)				$ 13.25
14	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 15.66
15	W10819767		Cover, Terminal Block   (Replaces: 8317339)		Appelez-nous	-
16	W10631629		Console Mount (right)		Appelez-nous	-
17	W10631630		Console Mount (left)				$ 138.27
18	W11778254		Assembly, Lint Screen   (Replaces: W10508973)			Immediately	$ 49.17
19	W10662472		Collar, Lint Chute				$ 70.08
1A	W10680128		Guide, Use And Care		Appelez-nous	-
1B	W10680138		Tech Sheet		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
