SELECT A DIAGRAM

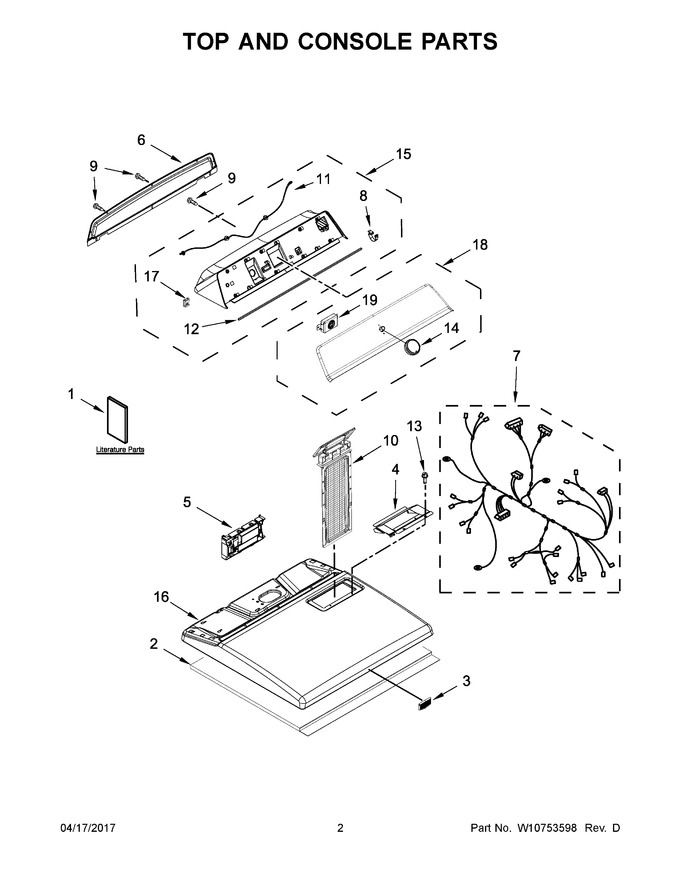

01 - Cover Sheet


02 - Top And Console Parts


03 - Cabinet Parts


04 - Bulkhead Parts


05 - W10336852 Burner Assembly Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10680131		Use And Care Guide		Appelez-nous	-
2	W10123956		Panel, Dampening		Appelez-nous	-
3	WPW10612925		Badge   (Replaces: W10612925)			Immediately	$ 38.12
4	W10662472		Collar, Lint Chute				$ 70.08
5	W10802082		Control, Electronic   (Replaces: W10753615)				$ 372.92
6	W10775189		Panel, Rear				$ 351.12
7	W10706061		Harness, Wiring		Appelez-nous	-
8	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 15.66
9	WP693995		Screw   (Replaces: 693995)			Immediately	$ 6.80
10	W11778254		Screen, Lint (white)   (Replaces: W10508973)			Immediately	$ 49.17
11	W10634454		Harness, User Interface		Appelez-nous	-
12	W11721376		Seal, Console   (Replaces: W10726632)		Appelez-nous	-
13	W11693756		Screw   (Replaces: 688983)			Immediately	$ 13.28
14	W10853910		Assembly, Timer Knob (chrome)   (Replaces: W10727011)				$ 48.55
15	W11026442		Assembly, Console (white)   (Replaces: W10622102)			Immediately	$ 553.60
16	W11222514		Top (white)   (Replaces: W10613389)			Immediately	$ 244.23
17	W11213336		Nut, "u   (Replaces: W10298336)				$ 7.32
18	W11035290		Assembly, Fascia   (Replaces: W10507962)				$ 532.13
19	W11123146		Assembly, Speaker   (Replaces: W10568405)				$ 72.84
1A	W10680136		Installation Instructions		Appelez-nous	-
1B	W10680138		Tech Sheet		Appelez-nous	-
1C	W10743383		Quickstart Guide		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
