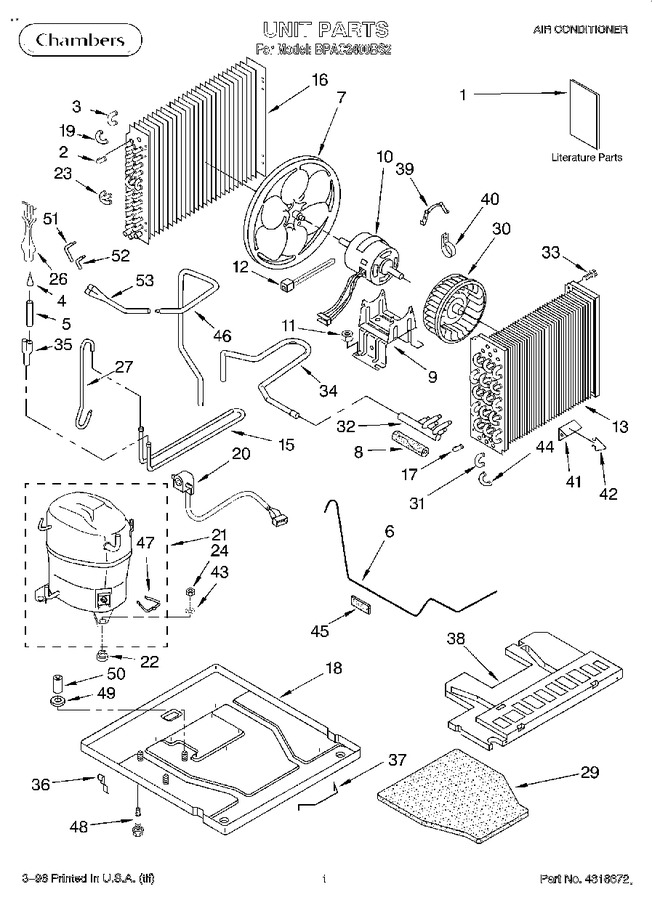

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	708532		Bend, Return Condenser (30)		Appelez-nous	-
3	708531		Bend, Return Condenser (2)		Appelez-nous	-
4	49599		Strainer, Tube		Appelez-nous	-
5	1163768		Tube, Outlet (includes Illus. 4)		Appelez-nous	-
6	1165955		Tube, Restrictor (5)		Appelez-nous	-
7	1158665		Blade, Fan (condenser)		Appelez-nous	-
8	1160870		Seal, Suction Tube		Appelez-nous	-
9	1160672		Bracket, Fan Motor		Appelez-nous	-
10	1166221		Motor, Fan		Appelez-nous	-
11	WP488130		Nut   (Replaces: 1160408)				$ 6.59
12	WPW10339879		Tie, Cable   (Replaces: 602851)				$ 7.47
13	1164507		Evaporator		Appelez-nous	-
15	1161247		Wet, Loop		Appelez-nous	-
16	1160100		Condenser		Appelez-nous	-
17	854624		Bend, Return Evaporator (10)		Appelez-nous	-
18	1162105		Base		Appelez-nous	-
19	1156329		Return Bend Condenser (1)		Appelez-nous	-
20	1166219		Harness, Wiring		Appelez-nous	-
21	1164071		Compressor		Appelez-nous	-
22	1165973		Grommet (3)		Appelez-nous	-
23	1158685		Return Bend 3-way Condenser (1)		Appelez-nous	-
24	858121		Locknut (3)		Appelez-nous	-
26	1163760		Distributor		Appelez-nous	-
27	1161277		Tube, Wet Loop Connect		Appelez-nous	-
29	1167085		Insulation, Base (bottom)		Appelez-nous	-
30	1162528		Wheel, Blower (evaporator)		Appelez-nous	-
31	855199		Return Bend Evaporator (7)		Appelez-nous	-
32	1164563		Manifold, Suction		Appelez-nous	-
33	WP489069		Screw No.8-3/8   (Replaces: 1157158)			Immediately	$ 7.56
34	1166631		Tube, Suction		Appelez-nous	-
35	947364		Tube, Flow Divider		Appelez-nous	-
36	471088		Clamp (2)		Appelez-nous	-
37	00647971		Handle, Base   (Replaces: 647971)				$ 129.08
38	1160656		Pan, Drain		Appelez-nous	-
39	WPY015825		Clip, Motor (2)   (Replaces: 1157015)				$ 22.65
40	1163775		Clamp, Wiring		Appelez-nous	-
41	1166782		Anticipator		Appelez-nous	-
42	642080		Clip, Anticipator		Appelez-nous	-
43	W11236646		Washer (3)   (Replaces: 1160880)			Immediately	$ 13.26
44	855644		Bend, Return Evaporator (10)		Appelez-nous	-
45	1163759		Seal, Restrictor Tube		Appelez-nous	-
46	1166093		Tube, Discharge		Appelez-nous	-
47	1161083		Retainer, Terminal Cover		Appelez-nous	-
48	1165674		Bolt, Compressor		Appelez-nous	-
49	1160654		Spacer, Grommet		Appelez-nous	-
50	1160655		Ext. Shoulder		Appelez-nous	-
51	1161217		Tube, Feeder		Appelez-nous	-
52	1161216		Tube, Feeder		Appelez-nous	-
53	1167294		Tube, Discharge Assembly (includes 51 And 52)		Appelez-nous	-
	LIT1165607		Wiring Diagram		Appelez-nous	-
	LIT1166067		Owners Manual		Appelez-nous	-
	LIT1167358		Tech Sheet		Appelez-nous	-
