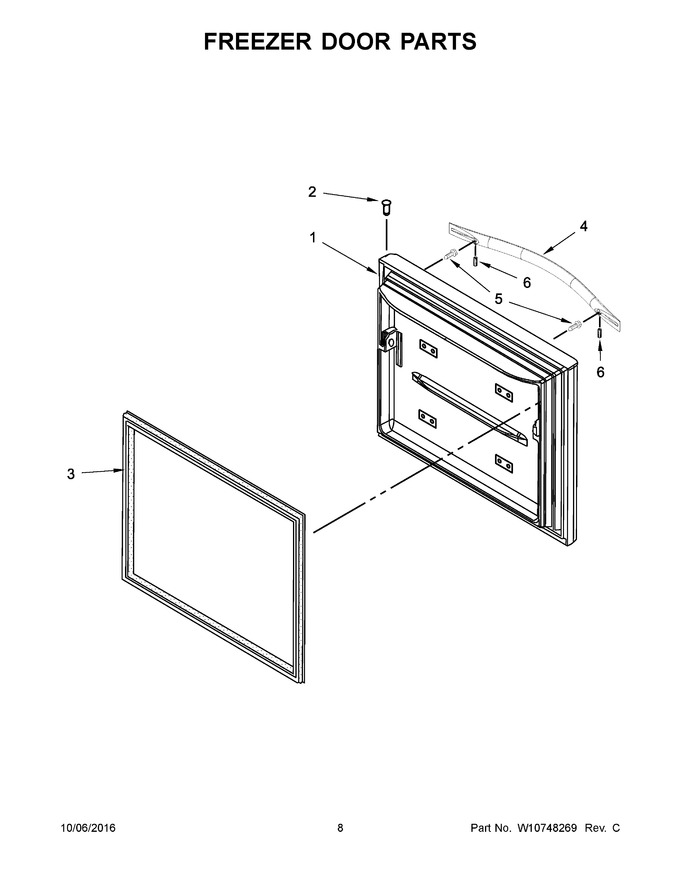

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10433606		Door, Freezer (include Items 2 & 3) (white)		Appelez-nous	-
2	W11189115		Thimble, Top (black)   (Replaces: W10334042)				$ 11.44
3	W10460611		Gasket, Door (beige)   (Replaces: W10465758)			Immediately	$ 273.77
4	W10865840		Assembly, Handle (white)   (Replaces: W10686485)				$ 169.23
5	WPW10170540		Screw   (Replaces: W10170540)			Immediately	$ 8.69
6	W11366418		Set Screw (silver)   (Replaces: W10010140)			Immediately	$ 16.59
1A	W10433607		Door, Freezer (include Items 2 & 3) (black)		Appelez-nous	-
1B	LW10433608		Door, Freezer (include Items 2 & 3) (stainless)   (Replaces: W10433608)				$ 639.88
3A	W11625017		Gasket, Door (black)   (Replaces: W10465761)				$ 305.72
3B	W10836785		Gasket, Door (grey)   (Replaces: W10465762)				$ 250.46
4A	W10686483		Assembly, Handle (black)				$ 215.87
4B	W10830683		Assembly, Handle (stainless)   (Replaces: W10686487)				$ 210.18
