01 - Cover Sheet

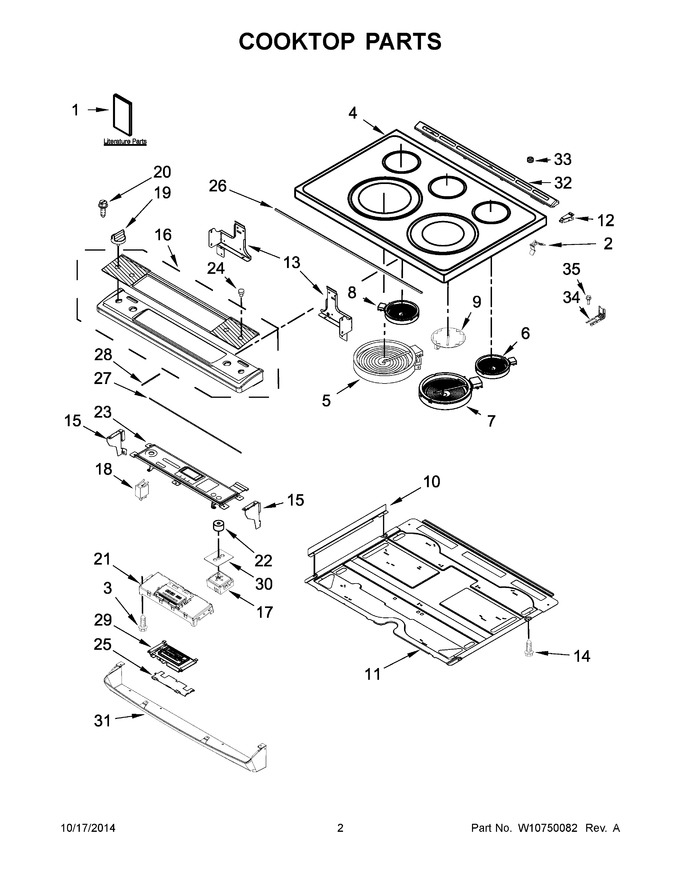

02 - Cooktop Parts
03 - Chassis Parts
04 - Door Parts
05 - Drawer Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10665255 | Installation Instructions |
|
- | |||||
| 2 | WPW10225448 | Spring, Element (Replaces: W10225448) |
|
Immediately | $ 9.36 | ||||
| 3 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 4 | W10751487 | Cooktop (black) (Replaces: W10668781) |
|
Immediately | $ 701.81 | ||||
| 5 | WPW10275049 | Element (2500/1200w) (left Front) (Replaces: W10275049) |
|
Immediately | $ 312.78 | ||||
| 6 | W11171119 | Element (1200w) (right Rear) (Replaces: 8273994) |
|
Immediately | $ 203.06 | ||||
| 7 | WPW10251108 | Element (3200w) (right Front) (Replaces: W10251108) |
|
Immediately | $ 307.76 | ||||
| 8 | WPW10270604 | Element (700w) (left Rear) (Replaces: W10270604) |
|
$ 201.13 | |||||
| 9 | W11047668 | Element, Warm Zone (center Rear) (Replaces: W10388247) |
|
$ 119.66 | |||||
| 10 | W11175271 | Bracket, Radiant (Replaces: W10613286) |
|
$ 70.12 | |||||
| 11 | W10536275 | Pan, Radiant |
|
$ 163.45 | |||||
| 12 | W10162253 | Brace, Corner (left) |
|
$ 66.72 | |||||
| 13 | W10289170 | Support, Cooktop (left) |
|
$ 27.05 | |||||
| 14 | W11244557 | Screw (Replaces: 3196173) |
|
$ 12.86 | |||||
| 15 | W10547960 | Bracket, Console (left) |
|
$ 20.90 | |||||
| 16 | W10680366 | Assembly, Console (black) |
|
$ 354.33 | |||||
| 17 | W10857622 | Switch, Infinite (dual) (left Front) (Replaces: W10437092) |
|
Immediately | $ 215.89 | ||||
| 18 | WP8523265 | Light, Indicator (125v) (Replaces: 8523265) |
|
Immediately | $ 91.76 | ||||
| 19 | W10672074 | Knob (stainless) |
|
$ 152.60 | |||||
| 20 | W11245710 | Screw (Replaces: 9780274) |
|
Immediately | $ 13.28 | ||||
| 21 | W11050555 | Control, Electronic (mrc2) (Replaces: W10658113) |
|
Immediately | $ 474.88 | ||||
| 22 | W10702912 | Gasket, Switch Stem |
|
$ 26.84 | |||||
| 23 | W10680391 | Assembly, Overlay (black) |
|
$ 316.12 | |||||
| 24 | WP3196068 | Lens, Indicator (Replaces: 3196068) |
|
Immediately | $ 5.63 | ||||
| 25 | W10558372 | Bracket, Control |
|
$ 22.59 | |||||
| 26 | W10802441 | Gasket, Console/cooktop (Replaces: W10612719) |
|
Immediately | $ 20.46 | ||||
| 27 | W10802457 | Gasket, Console (Replaces: W10689101) |
|
$ 19.20 | |||||
| 28 | W11744482 | Gasket, Console Short (Replaces: W10689102) |
|
$ 20.63 | |||||
| 29 | WPW10603098 | Assembly, Display (Replaces: W10603098) |
|
Immediately | $ 233.58 | ||||
| 30 | WP71002569 | Gasket, Infinite Switch (Replaces: 7201P077-60) |
|
Immediately | $ 9.51 | ||||
| 31 | W11218703 | Panel, Lower Console (black) (Replaces: W10570527) |
|
Immediately | $ 146.04 | ||||
| 32 | W11240519 | Trim, Vent (black) (Replaces: W10636528) |
|
$ 141.47 | |||||
| 33 | W11104127 | Bumper (Replaces: W10664705) |
|
Immediately | $ 19.77 | ||||
| 34 | W11502257 | Bracket, Anti-tip (Replaces: W10606241) |
|
Immediately | $ 20.73 | ||||
| 35 | WP7101P485-60 | Screw, Anti-tip (Replaces: 7101P485-60) |
|
$ 27.65 | |||||
| 12A | W10162252 | Brace, Corner (right) |
|
$ 70.73 | |||||
| 13A | W10289169 | Support, Cooktop (right) |
|
$ 27.05 | |||||
| 15A | W10547961 | Bracket, Console (right) |
|
$ 20.90 | |||||
| 15B | W10598048 | Bracket, Console (center) |
|
$ 23.16 | |||||
| 16A | W10680367 | Assembly, Console (white) |
|
$ 241.52 | |||||
| 16B | W11203729 | Assembly, Console (stainless) (Replaces: W10680368) |
|
Immediately | $ 374.01 | ||||
| 17A | WPW10295048 | Switch, Infinite (single) (left Rear) (Replaces: W10295048) |
|
Immediately | $ 143.96 | ||||
| 17B | W10917724 | Switch, Infinite (hyper) (right Front) (Replaces: W10437094) |
|
Immediately | $ 116.42 | ||||
| 17C | W10911303 | Switch, Infinite (single) (right Rear) (Replaces: W10578768) |
|
Immediately | $ 103.74 | ||||
| 1A | W10722063 | Guide, Use & Care |
|
- | |||||
| 1B | W10665227 | Sheet, Tech |
|
- | |||||
| 1C | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1D | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| 1E | W10400064 | Guide, Quick Start (english) |
|
- | |||||
| 1F | W10400065 | Guide, Quick Start (french) |
|
- | |||||
| 1G | W10665232 | Diagram, Wiring |
|
- | |||||
| 23A | W10680392 | Assembly, Overlay (white) |
|
$ 313.54 | |||||
| 23B | W10680393 | Assembly, Overlay (stainless) |
|
$ 348.25 | |||||
| 31A | W10570528 | Panel, Lower Console (white) |
|
$ 238.47 | |||||
| 32A | W10636527 | Trim, Vent (white) |
|
$ 226.20 | |||||
| 4A | W10751488 | Cooktop (white) (Replaces: W10668780) |
|
$ 539.05 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W10580243 | Harness, Cooktop |
|
$ 161.16 | |||||
| NI | W11207143 | Harness, Console (Replaces: W10580298) |
|
$ 218.45 | |||||
| NI | W10580309 | Harness, Main |
|
$ 236.81 | |||||
| NI | W10580265 | Harness, Bake/warm Drawer |
|
Immediately | $ 79.23 | ||||
| NI | W11025616 | Harness, Keypad (Replaces: W10575120) |
|
Immediately | $ 67.76 | ||||
| NI | W11226772 | Harness, Display (Replaces: W10598170) |
|
Immediately | $ 213.24 | ||||
| NI | W10664316 | Clip, Harness |
|
$ 18.87 |
