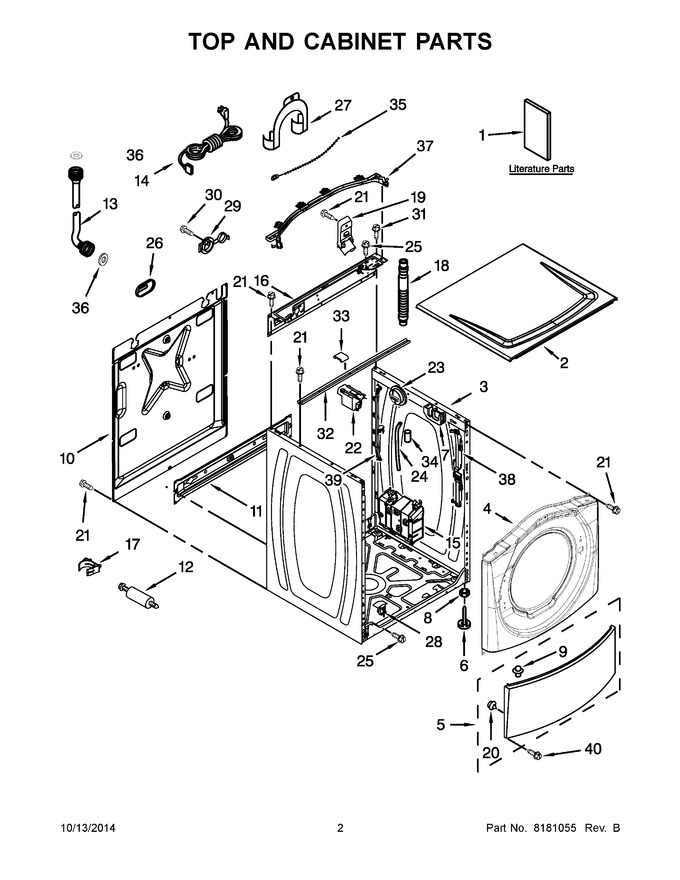

02 - Top And Cabinet Parts


03 - Door Parts


04 - Control Panel Parts


05 - Dispenser Parts


06 - Tub And Basket Parts


07 - Pump And Motor Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8540910		Use & Care Guide		Appelez-nous	-
2	WPW10303994		Top   (Replaces: 8540716)				$ 295.75
3	W10410294		Cabinet   (Replaces: 8540548)				$ 330.38
4	8540572		Panel, Front		Appelez-nous	-
5	WP8540664		Panel, Toe (white)   (Replaces: 8540813)				$ 339.40
6	WPW10001130		Foot, Front   (Replaces: 389102)			Immediately	$ 7.02
7	8540643		Bracket, Spring				$ 11.57
8	WP3359452		Nut, Hex   (Replaces: 3359452)			Immediately	$ 6.80
9	8518891		Rivet				$ 12.66
10	8540582		Panel, Rear		Appelez-nous	-
11	W10189659		Brace, Transport   (Replaces: 8540583)				$ 40.82
12	W10763471		Bolt, Shipping   (Replaces: 8540199)				$ 37.92
13	WP89503		Hose, Water Inlet (cold Water)   (Replaces: 8571377)			Immediately	$ 21.68
14	8540752		Cord, Power		Appelez-nous	-
15	WPW10197864		Motor Control Unit   (Replaces: 8540135)			Immediately	$ 384.44
16	8540557		Brace, Rear		Appelez-nous	-
17	8540093		Clamp, Tube Transportation				$ 6.72
18	WPW10114608		Hose, Drain   (Replaces: 8540011)			Immediately	$ 20.71
19	8540607		Retainer, Hose Outlet				$ 6.96
20	238614		Bumper   (Replaces: 8540977)				$ 76.31
21	WP489442		Screw   (Replaces: W10015090)			Immediately	$ 10.34
22	WPW10367632		Filter, Interference   (Replaces: 8540230)				$ 115.50
23	8540224		Switch, Pressure		Appelez-nous	-
24	W11252474		Hose, Pressure Switch   (Replaces: 8540294)			Immediately	$ 31.71
25	8540479		Screw, Grounding				$ 8.30
26	WP8540268		Cover, Transport   (Replaces: 8540268)				$ 6.57
27	WPW10280024		U-bend, Drain Hose   (Replaces: 8540021)				$ 75.16
28	WPW10085220		Microswitch   (Replaces: 8540210)				$ 31.42
29	W11116978		Sleeve, Cord Support   (Replaces: 8540728)				$ 21.55
30	8182201		Screw   (Replaces: 8540727)				$ 12.67
31	8540329		Screw		Appelez-nous	-
32	WP8540720		Brace, Top   (Replaces: 8540720)				$ 77.26
33	WP8283273		Damper, Brace   (Replaces: 8283273)				$ 25.56
34	W11751592		Sleeve   (Replaces: 2161302)			Immediately	$ 19.19
35	WPW10339879		Cable Tie   (Replaces: 8540947)				$ 7.47
36	WP16123		Washer, Inlet Hose   (Replaces: 16123)				$ 7.34
37	W10168548		Harness Channel, Top Rear   (Replaces: 8540290)		Appelez-nous	-
38	W10200785		Harness Channel, Side Front   (Replaces: 8540288)				$ 8.59
39	W10168547		Harness Channel, Side Rear   (Replaces: 8540289)				$ 17.60
40	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 7.45
13A	WP89503		Hose, Water Inlet (hot Water)   (Replaces: 8571378)			Immediately	$ 21.68
1A	8540259		Tech Sheet		Appelez-nous	-
1B	8540904		Energy Guide		Appelez-nous	-
1C	8540913		Quick Start Guide		Appelez-nous	-
