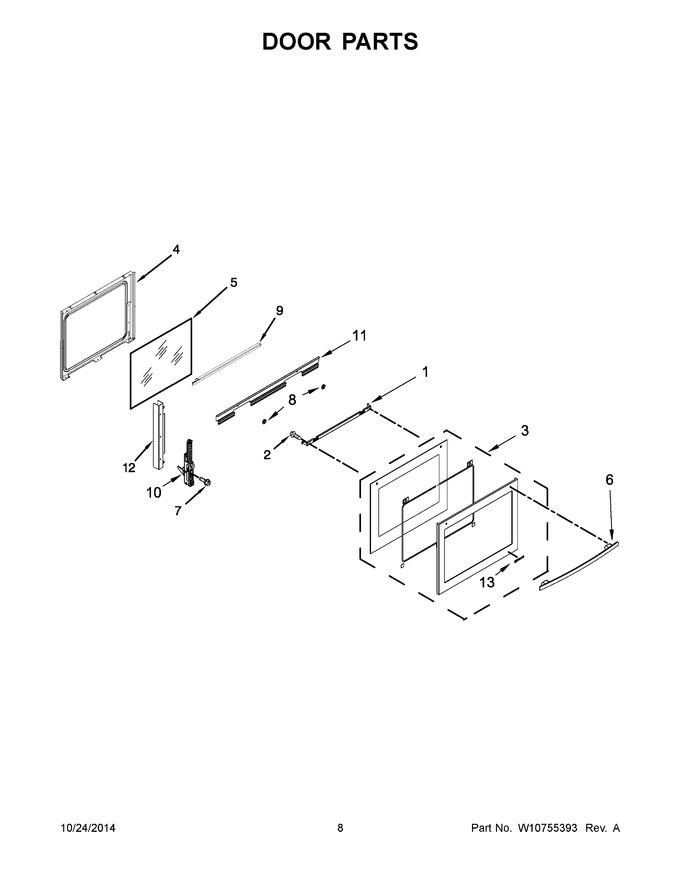

| 1 | W10541911 | Bracket, Glass Upper Handle |
|
Immediately | $ 35.93 | ||||
| 2 | WP8533988 | Screw (Replaces: 8533988) |
|
Immediately | $ 7.90 | ||||
| 3 | WPW10634268 | Assembly, Outer Door (stainless) (Replaces: W10634268) |
|
$ 342.68 | |||||
| 4 | W10541882 | Liner, Door |
|
$ 177.73 | |||||
| 5 | WPW10541888 | Glass, Inner (Replaces: W10541888) |
|
$ 346.19 | |||||
| 6 | W11195001 | Assembly, Door Handle (stainless) (Replaces: W10551013) |
|
$ 206.51 | |||||
| 7 | WP355214 | Screw (Replaces: W10327235) |
|
Immediately | $ 7.92 | ||||
| 8 | W11676355 | Washer, Door (Replaces: W10319024) |
|
Immediately | $ 13.33 | ||||
| 9 | W11025120 | Scoop, Liner Door (Replaces: W10551024) |
|
$ 110.71 | |||||
| 10 | W10541886 | Hinge, Slow Close |
|
$ 187.29 | |||||
| 11 | W10541885 | Support, Glass |
|
$ 36.93 | |||||
| 12 | W10541883 | Hinge, Support Rail |
|
$ 40.41 | |||||
| 13 | WPW10214168 | Badge (stainless) (Replaces: W10214168) |
|
$ 77.36 |
