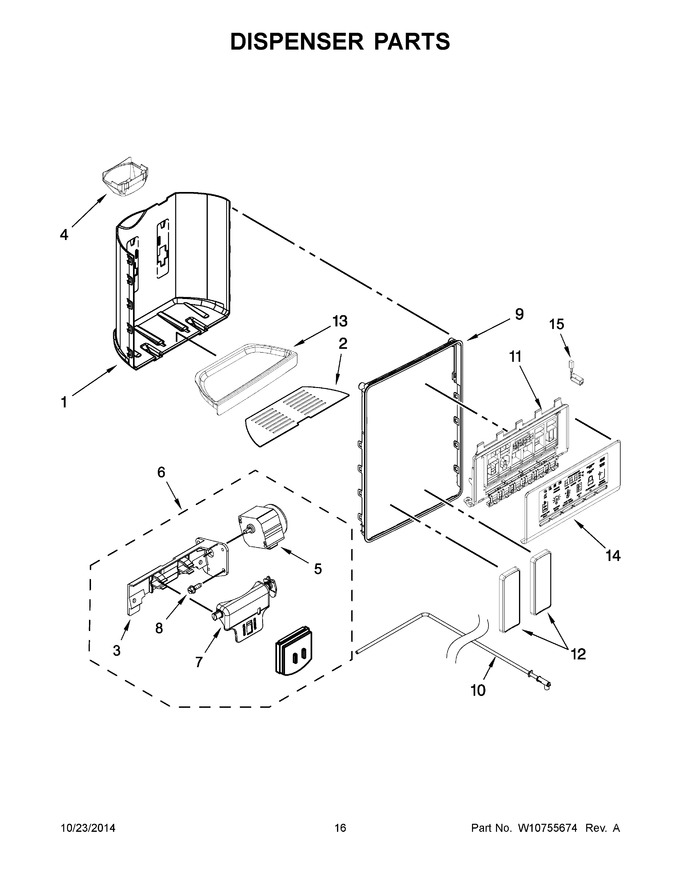

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Housing, Dispenser (not Serviced)		Appelez-nous	-
2	WPW10276223		Grate, Drip Tray (grey)   (Replaces: W10276223)				$ 51.63
3	W10174827		Bracket, Ice Door				$ 68.78
4	WPW10435760		Guide, Ice   (Replaces: W10435760)			Immediately	$ 21.55
5	WPW10205978		Motor, Dispenser   (Replaces: W10205978)				$ 93.71
6	WPW10493172		Separator Assembly   (Replaces: W10493172)				$ 215.87
7	WPW10346124		Support, Ice Door   (Replaces: W10346124)				$ 37.67
8	WP4449745		Screw   (Replaces: 4449745)				$ 7.18
9	W10276227		Trim Ring (grey)				$ 56.67
10	WPW10386778		Water Fitting Assembly   (Replaces: W10386778)			Immediately	$ 119.47
11	WPW10735389		Ui Assembly Control (chromium Tech)   (Replaces: W10735389)				$ 177.01
12	WPW10370594		Pad, Ice & Water (grey)   (Replaces: W10370594)				$ 279.55
13	W11246841		Drip Tray (grey)   (Replaces: W10276224)				$ 54.26
14	WPW10254285		Fascia, Display (black)   (Replaces: W10254285)				$ 275.29
15	W11290115		Assembly, Led   (Replaces: W10238083)				$ 76.01
