SELECT A DIAGRAM

Diagram for 01 - Cover Sheet
01 - Cover Sheet

Diagram for 02 - Door And Panel Parts
02 - Door And Panel Parts

Diagram for 03 - Control Panel And Latch Parts
03 - Control Panel And Latch Parts

Diagram for 04 - Inner Door Parts
04 - Inner Door Parts

Diagram for 05 - Fill, Drain And Overfill Parts
05 - Fill, Drain And Overfill Parts

Diagram for 06 - Tub And Frame Parts
06 - Tub And Frame Parts

Diagram for 07 - Pump, Washarm And Motor Parts
07 - Pump, Washarm And Motor Parts

Diagram for 08 - Upper Wash And Rinse Parts
08 - Upper Wash And Rinse Parts

Diagram for 09 - Heater Parts
09 - Heater Parts

Diagram for 10 - Upper Rack And Track Parts
10 - Upper Rack And Track Parts

Diagram for 11 - Lower Rack Parts
11 - Lower Rack Parts

Diagram for 12 - Optional Parts (not Included)
12 - Optional Parts (not Included)


New Model Search:


1-844-510-2000
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11844992 Dishrack, Lower   (Replaces: 8561705) Special Order $ 292.24

2 WP8268645 Wheel & Transport Assembly   (Replaces: 8268645) In-Stock Immediately $ 62.31

3 W10514735 Silverware Basket Assembly Appelez-nous -
4 W10514737 Lid, Silverware Basket (left) Appelez-nous -
5 W10514738 Lid, Silverware Basket (right) Special Order $ 12.69


    View Diagram in Separate Window     Print Icon   Print Part List

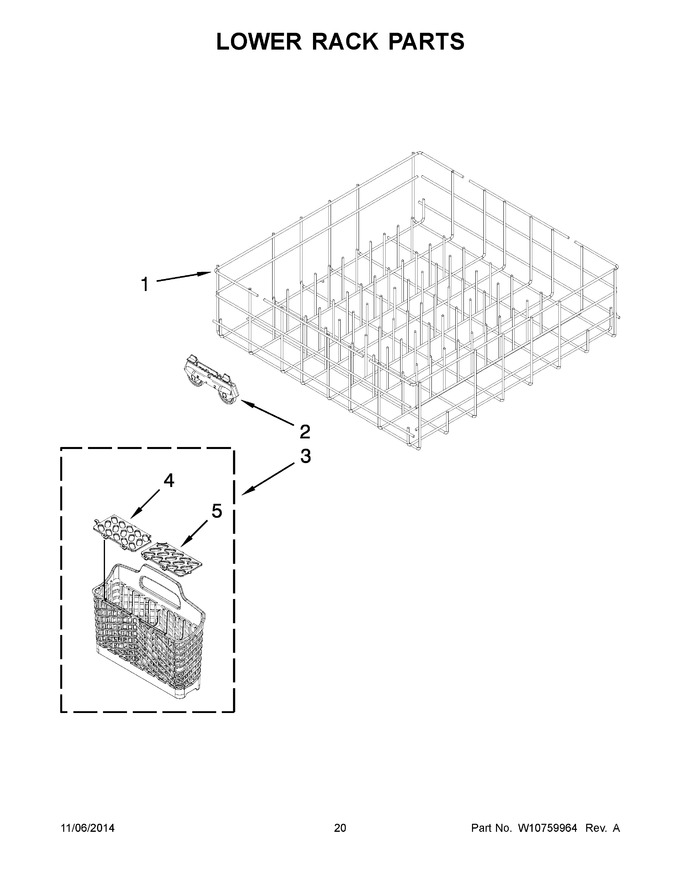

Diagram for ADB1400PYS6
