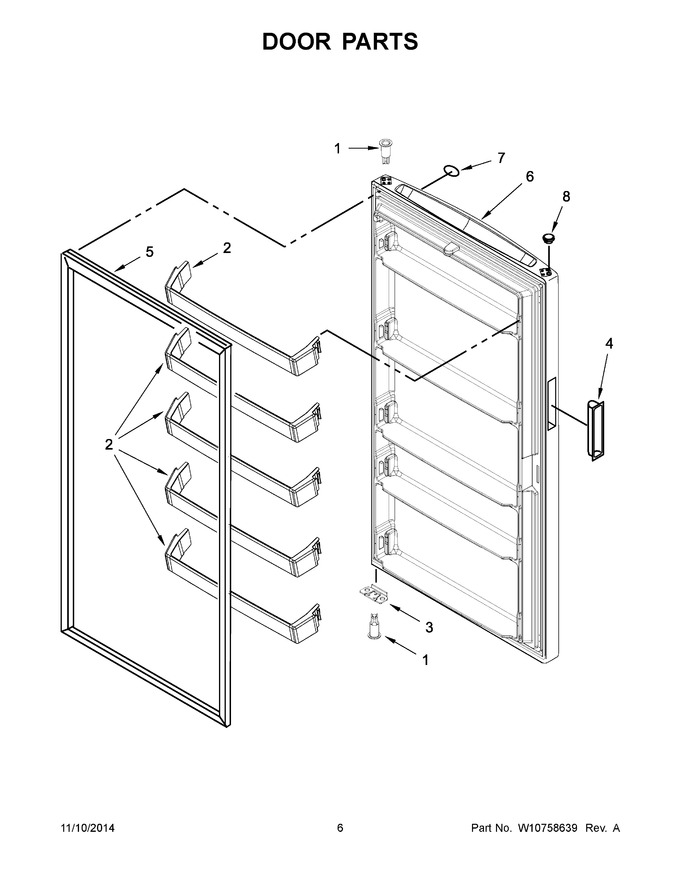

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Cabinet Parts
03 - Liner Parts
04 - Door Parts
05 - Unit Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP2314293 | Thimble (Replaces: 2314293) |
|
$ 6.80 | |||||
| 2 | WP4-65450-001 | Rail, Door Shelf (Replaces: 4-65450-001) |
|
$ 77.12 | |||||
| 3 | W10628869 | Bracket, Door Stop |
|
$ 23.69 | |||||
| 4 | W10352523 | Handle, Door (white) |
|
$ 22.68 | |||||
| 5 | W10850441 | Gasket, Door (white) (Replaces: W10574473) |
|
$ 374.00 | |||||
| 6 | W10746778 | Door Assembly (white) (Replaces: W10574703) |
|
$ 1,083.54 | |||||
| 7 | W11428492 | Badge, Amana (Replaces: W10200425) |
|
$ 75.21 | |||||
| 8 | WP2212648 | Plug, Hole (white) (Replaces: 2212648) |
|
Immediately | $ 7.37 |
