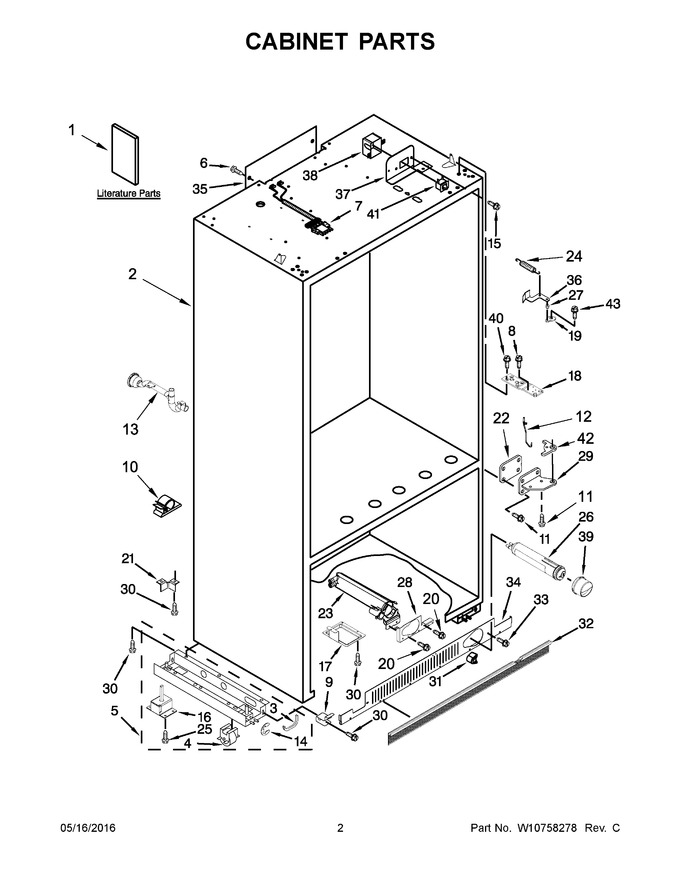

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10721179 | Use And Care Guide |
|
- | |||||
| 2 | N/P | Cabinet (not Serviced) |
|
- | |||||
| 3 | 2307584 | Grommet, Crossover Tube |
|
$ 21.06 | |||||
| 4 | WPW10138054 | Assembly, Roller (Replaces: W10138054) |
|
$ 40.81 | |||||
| 5 | W10860229 | Assembly, Support Base (left Hand) (Replaces: W10279275) |
|
$ 343.65 | |||||
| 6 | WP1163283 | Screw (Replaces: 1163283) |
|
$ 6.80 | |||||
| 7 | W10745694 | Assembly, Top Switch Jumper Wire |
|
$ 113.04 | |||||
| 8 | WP8281164 | Screw (stainless) (Replaces: 8281164) |
|
$ 10.20 | |||||
| 9 | W10839844 | Bracket, Grill Mounting (Replaces: 2307640) |
|
$ 38.93 | |||||
| 10 | W10663352 | Clip |
|
$ 19.72 | |||||
| 11 | W11474472 | Screw (Replaces: W10162602) |
|
Immediately | $ 7.77 | ||||
| 12 | W11690636 | Water Line (Replaces: W10577944) |
|
$ 117.49 | |||||
| 13 | W11291510 | Tube, Drain (Replaces: W10702350) |
|
$ 69.27 | |||||
| 14 | 2006841 | Ring, Retainer |
|
$ 83.39 | |||||
| 15 | WP965173 | Screw (Replaces: 487415) |
|
Immediately | $ 10.68 | ||||
| 16 | 2005032 | Leveler, Adjustable |
|
Immediately | $ 180.06 | ||||
| 17 | 2318189 | Tray, Filter Drip |
|
$ 133.86 | |||||
| 18 | 2252291 | Hinge, Top (left Hand) |
|
$ 71.42 | |||||
| 19 | WP2320509 | Stop, Door (Replaces: 2320509) |
|
$ 26.96 | |||||
| 20 | WP8533928 | Screw (Replaces: 8533928) |
|
Immediately | $ 7.43 | ||||
| 21 | 2006617 | Bracket, Base Support (rear) |
|
- | |||||
| 22 | 2207470 | Shim, Door Hinge |
|
Immediately | $ 47.04 | ||||
| 23 | WPW10121140 | Housing, Water Filter (Replaces: W10121140) |
|
Immediately | $ 243.77 | ||||
| 24 | W11805224 | Spring, Door Closure (green) (Replaces: 2221242) |
|
- | |||||
| 25 | W11624204 | Screw (Replaces: 486194) |
|
$ 13.25 | |||||
| 26 | EDR3RXD1B | Filter, Water (Replaces: W10121146) |
|
Immediately | $ 49.99 | ||||
| 27 | WP2316859 | Bushing, Extension Arm (Replaces: 2316859) |
|
Immediately | $ 48.78 | ||||
| 28 | W11755873 | Bracket, Filter (Replaces: W10674648) |
|
$ 72.30 | |||||
| 29 | 2252299 | Hinge, Bottom Refrigerator Door |
|
$ 155.31 | |||||
| 30 | WP489464 | Screw (Replaces: W10001250) |
|
Immediately | $ 7.54 | ||||
| 31 | WP2260503B | Button, Water Filter (black) (Replaces: 2260503B) |
|
$ 68.78 | |||||
| 32 | WPW10188547 | Skirt, Grille (black) (Replaces: W10188547) |
|
Immediately | $ 148.75 | ||||
| 33 | WP489464 | Screw (Replaces: W10005050) |
|
Immediately | $ 7.54 | ||||
| 34 | W11739145 | Grille, Bottom (Replaces: W10189196) |
|
Immediately | $ 188.17 | ||||
| 35 | W10426957 | Assembly, Air Duct Cover |
|
- | |||||
| 36 | W11416733 | Arm, Extension (left Hand) (Replaces: 2267193) |
|
$ 72.38 | |||||
| 37 | W10741112 | Bracket, Switch (left Hand) |
|
$ 60.63 | |||||
| 38 | 2215938 | Cover, Switch |
|
$ 85.30 | |||||
| 39 | W11238395 | Cap, Water Filter (black) (Replaces: W10797527) |
|
Immediately | $ 45.61 | ||||
| 40 | W11721628 | Screw (Replaces: 8533913) |
|
Immediately | $ 13.30 | ||||
| 41 | W11384469 | Switch, Rocker Arm (Replaces: 1118894) |
|
Immediately | $ 35.18 | ||||
| 42 | W10188434 | Cover, Gap (bottom) |
|
$ 61.16 | |||||
| 43 | WP8533980 | Screw (Replaces: 8533980) |
|
Immediately | $ 77.98 | ||||
| 18A | 2252292 | Hinge, Top (right Hand) |
|
$ 79.91 | |||||
| 1A | W10632401 | Energy Guide |
|
- | |||||
| 1B | W10685561 | Wiring Diagram |
|
- | |||||
| 1C | W10721177 | Installation Instructions |
|
- | |||||
| 1D | W10600683 | Tech Sheet (english) |
|
- | |||||
| 1E | W10717764 | Tech Sheet (french) |
|
- | |||||
| 36A | W11418227 | Arm, Extension (right Hand) (Replaces: 2267192) |
|
$ 107.18 | |||||
| 37A | W10741111 | Bracket, Switch (right Hand) |
|
$ 60.63 | |||||
| 5A | W10860448 | Assembly, Support Base (right Hand) (Replaces: W10138423) |
|
Immediately | $ 344.70 |
