SELECT A DIAGRAM

01 - Cover Sheet


02 - Cabinet Parts


03 - Cabinet Trim Parts


04 - Refrigerator Liner Parts


05 - Freezer Liner Parts


06 - Shelf Parts


07 - Refrigerator Door Parts


08 - Freezer Door And Basket Parts


09 - Top Grille And Unit Cover Parts


10 - Upper Unit Parts


11 - Lower Unit And Tube Parts


12 - Ice Maker Parts


13 - Optional Parts

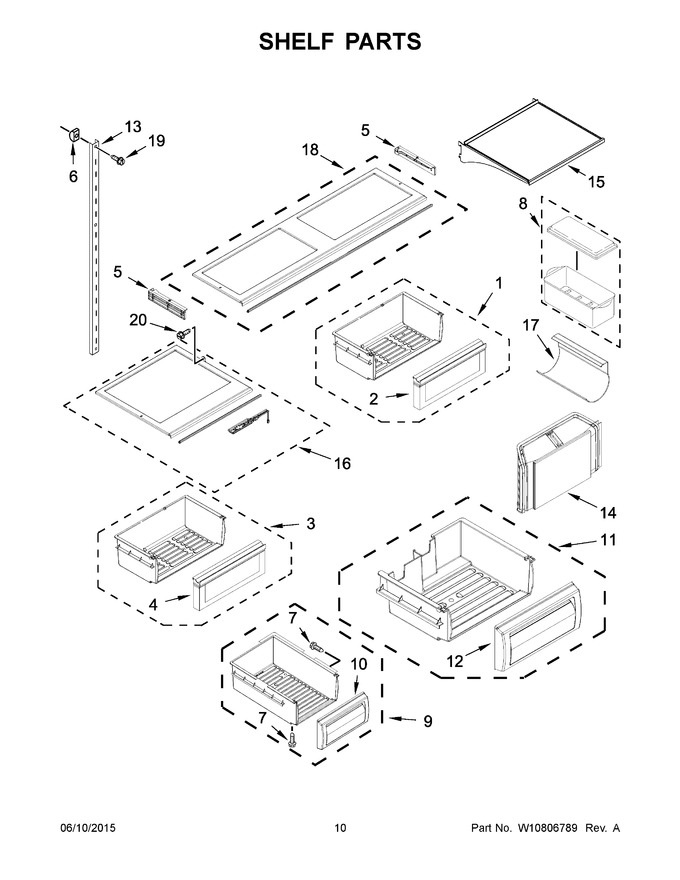

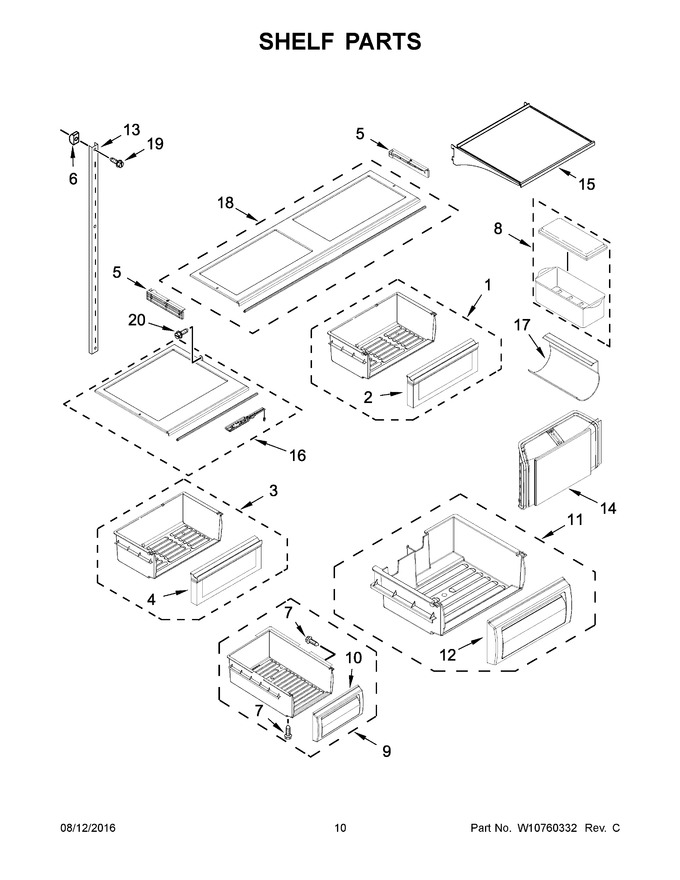

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10529578		Assembly, Crisper Pan				$ 381.95
2	W10529563		Assembly, Crisper Pan Front		Appelez-nous	-
3	W10529585		Assembly, Deli Pan				$ 341.68
4	W10529567		Assembly, Deli Pan Front		Appelez-nous	-
5	W10569854		Support, Crisper Cover Left Hand (grey)				$ 75.73
6	520965		Support, Ladder				$ 28.22
7	WP488787		Screw   (Replaces: 488886)				$ 10.13
8	WP2221071A		Assembly, Egg Bin   (Replaces: 2221071)				$ 23.21
9	W10600690		Assembly, Ice Pan		Appelez-nous	-
10	W10600687		Assembly, Ice Pan Front		Appelez-nous	-
11	W10600700		Assembly, Freezer Pan		Appelez-nous	-
12	W10600696		Assembly, Freezer Pan Front				$ 74.61
13	W10633565		Ladder, Shelf Side (grey)		Appelez-nous	-
14	W10593207		Assembly, Produce Preserver		Appelez-nous	-
15	WPW10568583		Assembly, Shelf   (Replaces: W10568583)				$ 366.98
16	WPW10570403		Cover, Deli Bin (left Hand)   (Replaces: W10570403)				$ 252.26
17	W10701859		Rack, Wine				$ 19.38
18	WPW10578274		Cover, Crisper   (Replaces: W10578274)				$ 271.41
19	W10678207		Screw   (Replaces: 2001377)				$ 14.79
20	8533950		Screw (meteorite)		Appelez-nous	-
13A	W10633566		Ladder, Shelf Center (grey)		Appelez-nous	-
16A	WPW10570404		Cover, Deli Bin (right Hand)   (Replaces: W10570404)				$ 267.83
5A	W10569853		Support, Crisper Cover Right Hand (grey)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
