01 - Cover Sheet
02 - Cooktop Parts
03 - Interior Parts
04 - Chassis Parts

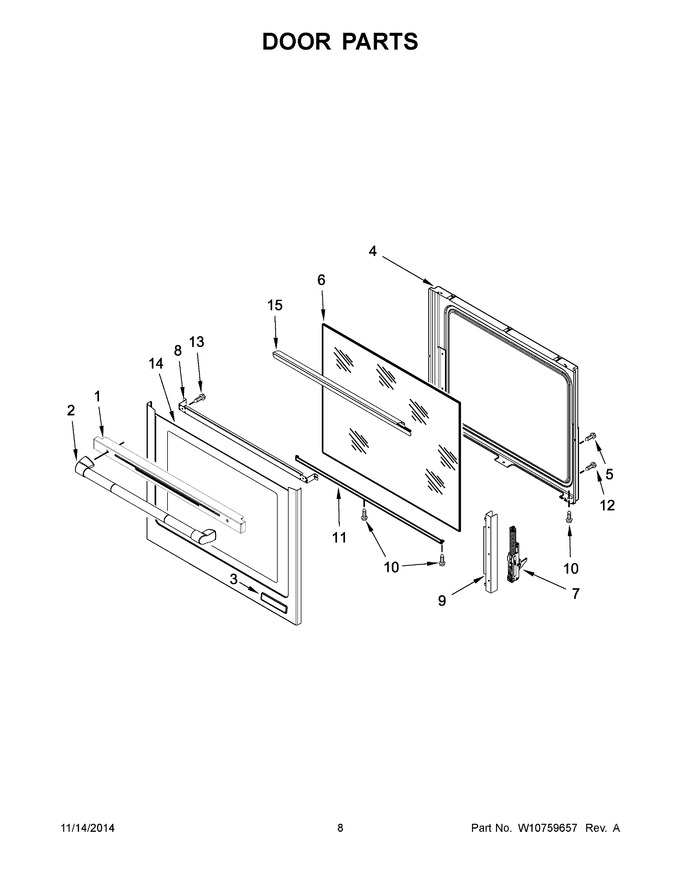

05 - Door Parts
06 - Drawer Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11170796 | Trim, Vent (stainless) (Replaces: W10636529) |
|
Immediately | $ 131.18 | ||||
| 2 | W11234410 | Handle, Door (stainless) (Replaces: W10483386) |
|
$ 213.73 | |||||
| 3 | WPW10159578 | Badge (stainless) (Replaces: W10159578) |
|
Immediately | $ 79.69 | ||||
| 4 | W10541882 | Liner, Door |
|
$ 177.73 | |||||
| 5 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 7.87 | ||||
| 6 | WPW10541888 | Glass, Inner (Replaces: W10541888) |
|
$ 346.19 | |||||
| 7 | W11168370 | Hinge, Slow Close (Replaces: W10701152) |
|
Immediately | $ 99.49 | ||||
| 8 | W10541911 | Bracket, Glass Upper Handle |
|
Immediately | $ 35.93 | ||||
| 9 | W10541883 | Hinge, Support Rail |
|
$ 40.41 | |||||
| 10 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 6.80 | ||||
| 11 | W10541885 | Support, Glass |
|
$ 36.93 | |||||
| 12 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 7.43 | ||||
| 13 | W10530626 | Screw |
|
$ 15.08 | |||||
| 14 | W10634269 | Assembly, Outer Door Glass (stainless) |
|
$ 313.15 | |||||
| 15 | W11025120 | Scoop, Door (stainless) (Replaces: W10551024) |
|
$ 110.71 |
