01 - Cover Sheet

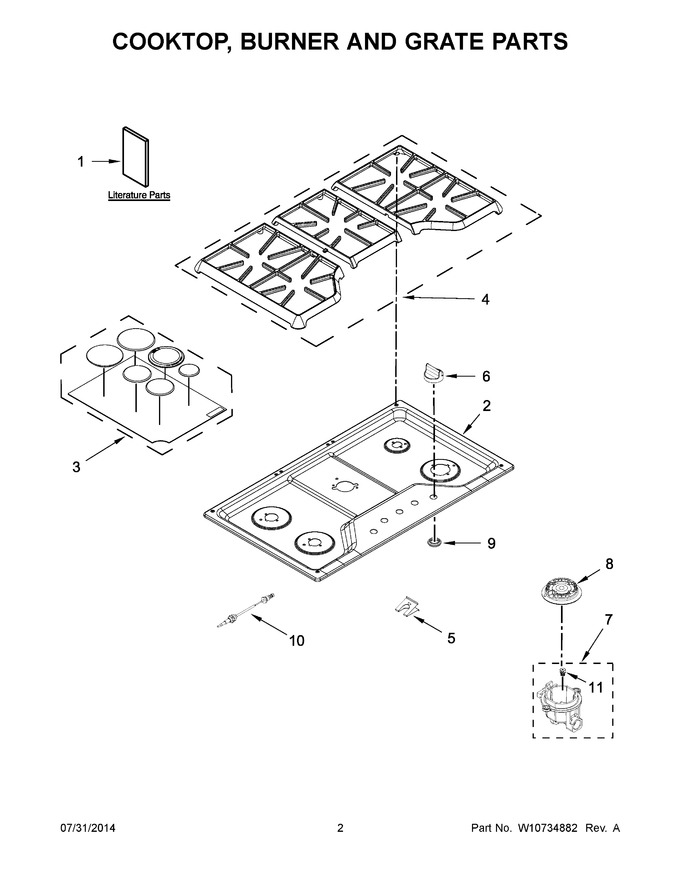

02 - Cooktop, Burner And Grate Parts
03 - Burner Box, Gas Valves And Switch Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10597144 | Installation Instructions |
|
- | |||||
| 2 | W10597074 | Cooktop (stainless) |
|
$ 371.23 | |||||
| 3 | W10819916 | Kit, Burner Cap (black) (Replaces: W10597132) |
|
$ 90.90 | |||||
| 4 | W11411592 | Kit, Grate (black) (Replaces: W10594447) |
|
$ 368.51 | |||||
| 5 | 8286863 | Spring, Electrode |
|
$ 69.23 | |||||
| 6 | W10815991 | Knobs, Cooktop (stainless) (Replaces: W10643321) |
|
Immediately | $ 51.59 | ||||
| 7 | W10594399 | Holder, Orifice (5k) (right Rear) |
|
$ 34.93 | |||||
| 8 | WP8286813 | Head, Burner (right Rear) (Replaces: 8286813) |
|
$ 90.22 | |||||
| 9 | W11206740 | Grommet (black) (Replaces: W10625915) |
|
$ 8.19 | |||||
| 10 | W11507531 | Wiring, Electrode (left Front & Right Front) (Replaces: W10541842) |
|
$ 54.74 | |||||
| 11 | W10652710 | Orifice (left Front & Left Rear) |
|
$ 24.54 | |||||
| 10A | W11507532 | Wiring, Electrode (left Rear & Right Rear) (Replaces: W10541843) |
|
Immediately | $ 54.80 | ||||
| 10B | W10852959 | Electrode (stack) (center) (Replaces: W10611438) |
|
$ 69.39 | |||||
| 11A | W10652706 | Orifice (center, Simmer) |
|
$ 89.96 | |||||
| 11B | W11243595 | Orifice (center, Main) (Replaces: W10594427) |
|
$ 78.86 | |||||
| 11C | W10791079 | Orifice (right Front) (Replaces: W10409144) |
|
$ 84.11 | |||||
| 11D | W10791082 | Orifice (right Rear) (Replaces: W10652711) |
|
$ 81.27 | |||||
| 1A | W10672375 | Undercounter Install Instructions |
|
- | |||||
| 1B | W10648065 | Use & Care Guide |
|
- | |||||
| 1C | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1D | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| 7A | W10597166 | Holder, Orifice (9.1k) (left Front & Left Rear) |
|
$ 66.41 | |||||
| 7B | W10594405 | Holder, Orifice (12k) (right Front) |
|
$ 73.36 | |||||
| 7C | W10611435 | Holder, Orifice (18k) (center) |
|
$ 69.04 | |||||
| 8A | WP8286815 | Head, Burner (right Front) (Replaces: 8286815) |
|
Immediately | $ 112.13 | ||||
| 8B | WP8286814 | Head, Burner (left Front & Left Rear) (Replaces: 8286814) |
|
Immediately | $ 112.13 | ||||
| 8C | W10811599 | Head, Burner (center) (Replaces: W10611434) |
|
$ 195.46 |
