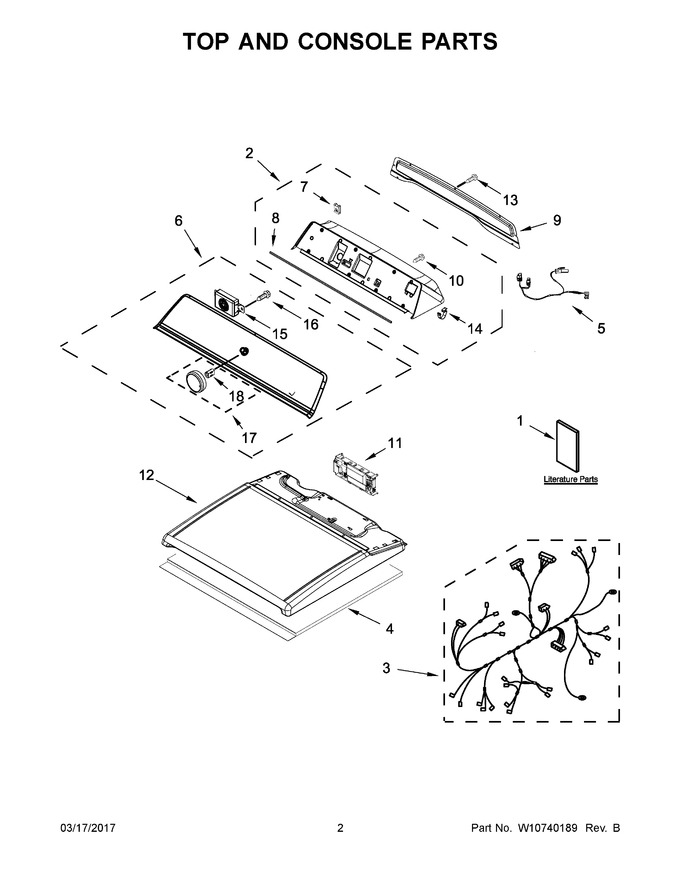

02 - Top And Console Parts
03 - Cabinet Parts
04 - Bulkhead Parts
05 - Door Parts
06 - Burner Assembly Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10725269 | Installation Instructions |
|
- | |||||
| 2 | W11026442 | Console Assembly (complete) (white) (Replaces: W10622102) |
|
Immediately | $ 553.60 | ||||
| 3 | W10706041 | Wiring Harness |
|
$ 303.85 | |||||
| 4 | W11668653 | Panel, Dampening (Replaces: W10836097) |
|
$ 27.86 | |||||
| 5 | W10593673 | Harness, User Interface |
|
$ 34.71 | |||||
| 6 | W11099769 | Fascia (Replaces: W10872843) |
|
- | |||||
| 7 | W11213336 | Nut, "u (Replaces: W10298336) |
|
$ 7.32 | |||||
| 8 | W11721376 | Seal, Console (Replaces: W10726632) |
|
- | |||||
| 9 | W10622402 | Panel, Rear Console |
|
- | |||||
| 10 | W10853898 | Screw (Replaces: W10219342) |
|
Immediately | $ 7.36 | ||||
| 11 | W10802461 | Control, Electronic (Replaces: W10771992) |
|
$ 347.35 | |||||
| 12 | W11227373 | Top (white) (Replaces: W10508981) |
|
$ 230.05 | |||||
| 13 | W11311945 | Screw (Replaces: 12990204) |
|
$ 13.25 | |||||
| 14 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 14.93 | ||||
| 15 | W11123146 | Assembly, Speaker (Replaces: W10568405) |
|
$ 72.84 | |||||
| 16 | WP9740849 | Screw (Replaces: 9740849) |
|
$ 6.57 | |||||
| 17 | W10853910 | Assembly, Control Knob (chrome) (Replaces: W10727011) |
|
$ 48.55 | |||||
| 18 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 7.38 | ||||
| 1A | W10680141 | Use And Care Guide |
|
- | |||||
| 1B | W10680150 | Tech Sheet |
|
- |
