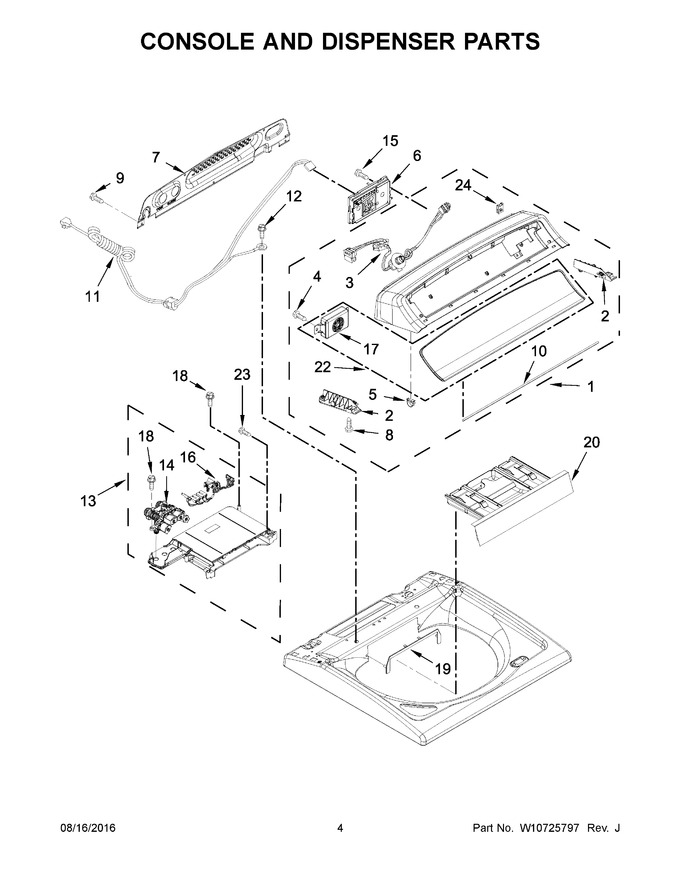

03 - Console And Dispenser Parts
04 - Motor, Basket And Tub Parts
05 - Pump Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10861501 | Console (white) (Replaces: W10662266) |
|
$ 402.92 | |||||
| 2 | W10631630 | Console Mount (left) |
|
$ 138.27 | |||||
| 3 | W10915405 | Harness, Ui (Replaces: W10596717) |
|
$ 10.05 | |||||
| 4 | W10728156 | Screw |
|
- | |||||
| 5 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 14.93 | ||||
| 6 | W11689205 | Control Unit Assembly, Machine And Motor (Replaces: W10625548) |
|
Immediately | $ 408.29 | ||||
| 7 | W10611544 | Panel, Console Rear Cover |
|
$ 307.11 | |||||
| 8 | W10853898 | Screw (Replaces: W10219342) |
|
Immediately | $ 7.36 | ||||
| 9 | WP489069 | Screw (Replaces: 1157158) |
|
Immediately | $ 7.56 | ||||
| 10 | W10726624 | Seal, Console |
|
$ 29.03 | |||||
| 11 | W11096073 | Cord, Power (Replaces: W10770108) |
|
$ 113.96 | |||||
| 12 | W10846509 | Screw (Replaces: 3400076) |
|
Immediately | $ 7.38 | ||||
| 13 | W11173599 | Assembly, Housing (Replaces: W10854687) |
|
$ 343.59 | |||||
| 14 | W11165546 | Valve, Water Inlet (Replaces: W10758828) |
|
Immediately | $ 104.41 | ||||
| 15 | WP9740848 | Screw (Replaces: 9740848) |
|
Immediately | $ 7.72 | ||||
| 16 | W11193817 | Harness, Valve (Replaces: W10849297) |
|
Immediately | $ 167.72 | ||||
| 17 | W11123146 | Assembly, Speaker (Replaces: W10568405) |
|
$ 72.84 | |||||
| 18 | WPW10109200 | Screw (Replaces: 97787) |
|
Immediately | $ 7.92 | ||||
| 19 | W10601845 | Assembly, Dispenser Bezel (white) (Replaces: W10601841) |
|
$ 38.33 | |||||
| 20 | W11209429 | Assembly, Dispenser Drawer (white) (Replaces: W10794824) |
|
$ 99.21 | |||||
| 21 | W11311945 | Screw (Replaces: 12990204) |
|
$ 13.25 | |||||
| 22 | W11115199 | Assembly, Console Fascia (Replaces: W10507937) |
|
$ 523.48 | |||||
| 23 | W11700520 | Screw (Replaces: 3400061) |
|
$ 12.85 | |||||
| 24 | W11213336 | Nut, "u (Replaces: W10298336) |
|
$ 7.32 | |||||
| 19A | W10601876 | Assembly, Dispenser Bezel (chrome Shadow) (Replaces: W10601860) |
|
$ 27.93 | |||||
| 1A | W10838672 | Console (chrome Shadow) (Replaces: W10607414) |
|
$ 483.75 | |||||
| 1B | W11169707 | Console (red) (Replaces: W10744648) |
|
$ 588.19 | |||||
| 20A | W11129928 | Assembly, Dispenser Drawer (chrome Shadow) (Replaces: W10795358) |
|
$ 98.85 | |||||
| 2A | W10631629 | Console Mount (right) |
|
- |
