01 - Cover Sheet

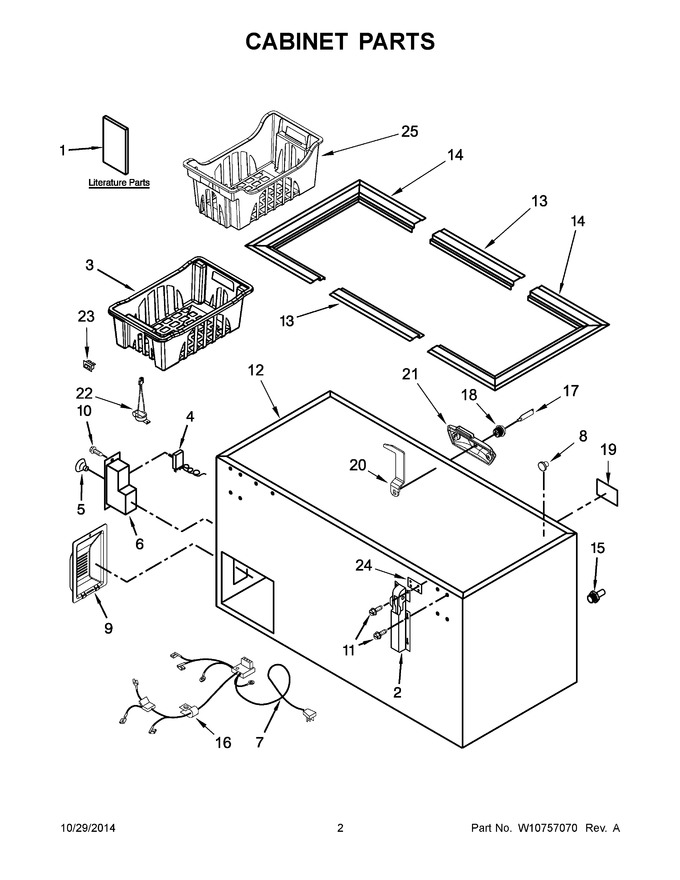

02 - Cabinet Parts
03 - Door Parts
04 - Unit Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10668402 | Use & Care Guide |
|
- | |||||
| 2 | W11192185 | Hinge Assembly (Replaces: W10670142) |
|
$ 173.13 | |||||
| 3 | W10724199 | Basket, Lower |
|
- | |||||
| 4 | 4-35940-004 | Thermostat |
|
$ 239.49 | |||||
| 5 | W10738934 | Knob, Thermostat |
|
- | |||||
| 6 | W10682893 | Control Box |
|
$ 29.60 | |||||
| 7 | W10628808 | Wiring Harness |
|
- | |||||
| 8 | 3-33211-001 | Plug, Drain |
|
$ 10.63 | |||||
| 9 | W10574468 | Panel, Access |
|
$ 26.02 | |||||
| 10 | 3-24004-049 | Screw |
|
- | |||||
| 11 | WPW10031790 | Screw (Replaces: 3-24004-005) |
|
Immediately | $ 7.87 | ||||
| 12 | N/P | Cabinet (not A Serviceable Part) |
|
- | |||||
| 13 | W11045298 | Breaker Strip (Replaces: 4-35010-005) |
|
- | |||||
| 14 | W11045300 | Strip, End Breaker (Replaces: 4-35009-003) |
|
$ 84.78 | |||||
| 15 | W11663505 | Adapter, Drain (Replaces: 1-33178) |
|
$ 16.23 | |||||
| 16 | 549193 | Clamp, Power Cord |
|
$ 12.65 | |||||
| 17 | W10838052 | Key (Replaces: W10668135) |
|
$ 36.60 | |||||
| 18 | W10664016 | Barrel, Lock |
|
$ 112.56 | |||||
| 19 | W11178521 | Nameplate (white) (Replaces: W10481434) |
|
Immediately | $ 56.82 | ||||
| 20 | W10714897 | Latch, Lock |
|
$ 26.71 | |||||
| 21 | W10711162 | Housing, Lock |
|
$ 31.63 | |||||
| 22 | W10623221 | Buzzer |
|
- | |||||
| 23 | W10749471 | Switch, Alarm |
|
- | |||||
| 24 | 1-17548-006 | Spacer, Hinge |
|
$ 19.58 | |||||
| 25 | W11553315 | Basket, Upper (Replaces: W10723246) |
|
$ 92.96 | |||||
| 1A | W10642201 | Energy Guide |
|
- | |||||
| 1B | W10723826 | Tech Sheet |
|
- |
