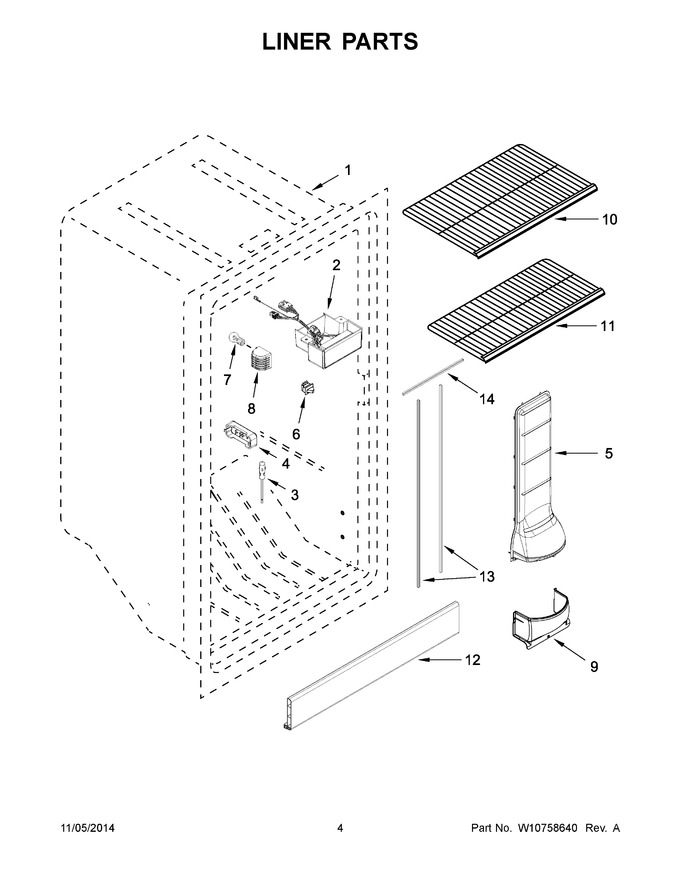

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | W11382527 | Control Assembly (Replaces: W10718113) |
|
Immediately | $ 363.20 | ||||
| 3 | WPW10384183 | Thermistor, Refrigerator Compartment (Replaces: W10384183) |
|
Immediately | $ 106.62 | ||||
| 4 | W10608692 | Cover, Thermistor |
|
$ 28.11 | |||||
| 5 | W10574272 | Air Tower |
|
Immediately | $ 120.82 | ||||
| 6 | W11384469 | Switch, Light (Replaces: 2-32164-001) |
|
Immediately | $ 35.18 | ||||
| 7 | W11338583 | Lamp, Led (Replaces: W10565137) |
|
Immediately | $ 96.49 | ||||
| 8 | W10569269 | Lens, Control Box |
|
$ 77.84 | |||||
| 9 | W10574274 | Cover, Evaporator Fan |
|
$ 100.81 | |||||
| 10 | W11397871 | Wire Shelf, Deep (Replaces: W10581580) |
|
$ 91.65 | |||||
| 11 | W11578876 | Wire Shelf, Shallow (Replaces: W10581581) |
|
- | |||||
| 12 | W10581590 | Trim, Door |
|
$ 97.81 | |||||
| 13 | WPW10574368 | Gasket, Air Tower (vertical) (Replaces: W10574368) |
|
$ 7.88 | |||||
| 14 | WPW10574368 | Gasket, Air Tower (horizontal) (Replaces: W10574564) |
|
$ 7.88 |
