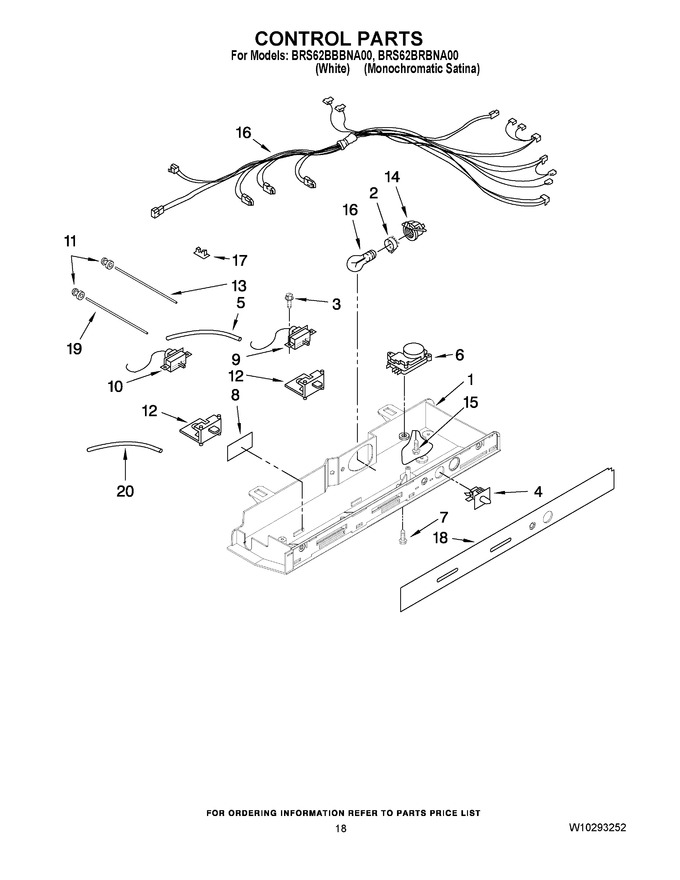

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2200135		Control Box		Appelez-nous	-
2	W10119914		Shroud, Light		Appelez-nous	-
3	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.95
4	WP2149705		Light Switch   (Replaces: 2321287)			Immediately	$ 45.66
5	WP2196003		Tube Barrier   (Replaces: 2196003)				$ 8.35
6	WP2188379		Defrost Timer   (Replaces: 2321261)				$ 203.07
7	489392		Screw (2)   (Replaces: 489398)				$ 14.02
8	2172940		Window		Appelez-nous	-
9	WP2321305		Thermostat   (Replaces: 2321305)				$ 253.83
10	WP2321289		Thermostat   (Replaces: 2321289)				$ 241.70
11	2172906		Grommet		Appelez-nous	-
12	2161466		Slide, Thermostat				$ 22.28
13	2179920		Light Bar (rc)				$ 37.08
14	4387478		Light Socket   (Replaces: 2162085)			Immediately	$ 115.67
15	WP67002552		Light Bulb   (Replaces: 851682)			Immediately	$ 12.34
16	W10129766		Control Box Harness		Appelez-nous	-
17	1115375		Clip, Wiring				$ 11.15
18	W10203047		Cover Control Box		Appelez-nous	-
19	2179921		Light Bar (fc)		Appelez-nous	-
20	WP2196003		Tube Barrier, Thermostat   (Replaces: 2182150)				$ 8.35
