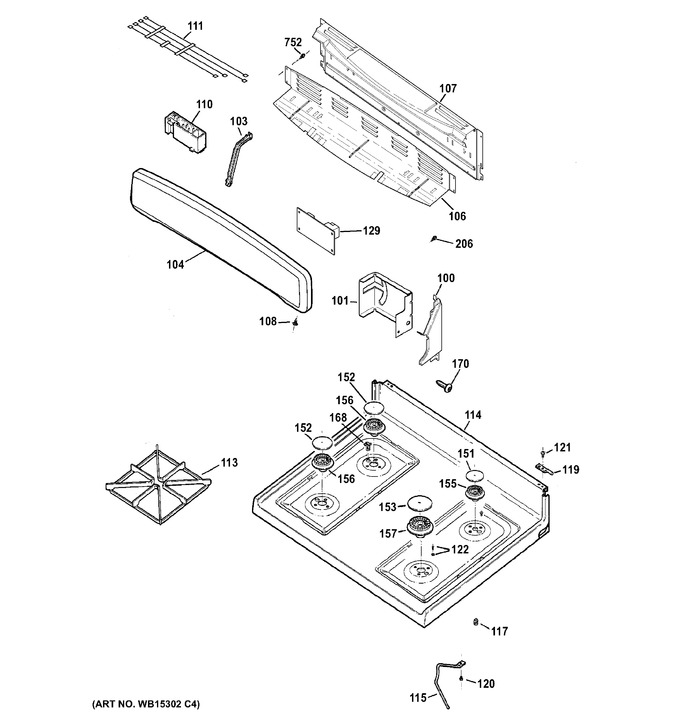

1 - Gas & Burner Parts
2 - Control Panel & Cooktop
3 - Body Parts
4 - Door & Drawer Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 100 | WB07X20194 | End Support Rt |
|
- | |||||
| 100 | WB07X20197 | End Support Lt |
|
- | |||||
| 101 | WB37X20285 | Bracket Cook Top |
|
- | |||||
| 101 | WB37X20286 | Bracket Cook Top |
|
- | |||||
| 103 | WB02K10150 | Bracket Control |
|
- | |||||
| 104 | WB36X21588 | Trim Control |
|
- | |||||
| 106 | WB34K10123 | Cover Back Upper |
|
- | |||||
| 107 | WB34K10129 | Cover Back Lower |
|
- | |||||
| 108 | WS01A01150 | Screw (cr) (Replaces: WB1X5364) |
|
$ 3.57 | |||||
| 110 | WS01F02044 | Spark Module 4+0 (Replaces: WB13K10029) |
|
$ 62.96 | |||||
| 111 | WB18K10098 | Electrodes & Harness Hv |
|
- | |||||
| 113 | WB31X20643 | Grate Asm Hairpin Hv |
|
- | |||||
| 114 | WB62X20225 | Range Top S.b. |
|
- | |||||
| 115 | WB2K91 | Support Rangetop |
|
- | |||||
| 117 | WB2K17 | Pin Locator Front |
|
- | |||||
| 119 | WB14K5 | Pin Hinge |
|
- | |||||
| 120 | WB1K45 | Screw Washer Asm |
|
- | |||||
| 121 | WB1K1 | Screw |
|
- | |||||
| 121 | WB1K78 | Screw 12-14, 5/8s |
|
- | |||||
| 122 | WS01A02448 | Ckt Screw (Replaces: WB01K10106) |
|
Immediately | $ 4.07 | ||||
| 129 | WB11K10041 | Electronic Timer |
|
$ 227.85 | |||||
| 151 | WS01F02532 | Asm Burner Cap (5000) (Replaces: WB29K10022) |
|
Immediately | $ 24.30 | ||||
| 152 | WS01F02536 | Asm Burner Cap (9500) (Replaces: WB29K10023) |
|
Immediately | $ 15.72 | ||||
| 153 | WS01F03894 | Asm Burner Cap (12000) (Replaces: WB29K10024) |
|
Immediately | $ 21.44 | ||||
| 155 | WS01F02309 | Small Burner V 5k (Replaces: WB16K10070) |
|
Immediately | $ 24.21 | ||||
| 156 | WS01F02306 | Burner Medium (9500) (Replaces: WB16K10055) |
|
Immediately | $ 82.59 | ||||
| 157 | WS01F02300 | Burner 12k (Replaces: WB16T10046) |
|
Immediately | $ 86.48 | ||||
| 168 | WG02A00592 | Clip Electrode (Replaces: WB01K10112) |
|
Immediately | $ 8.58 | ||||
| 170 | WS01A01408 | Screw (blk) (Replaces: WB1X5716) |
|
$ 4.20 | |||||
| 206 | WS01A01151 | Screw (Replaces: WB01K10091) |
|
Immediately | $ 11.44 | ||||
| 752 | WZ04X0345 | Screw 8-18x5/8 Hxw |
|
- |
